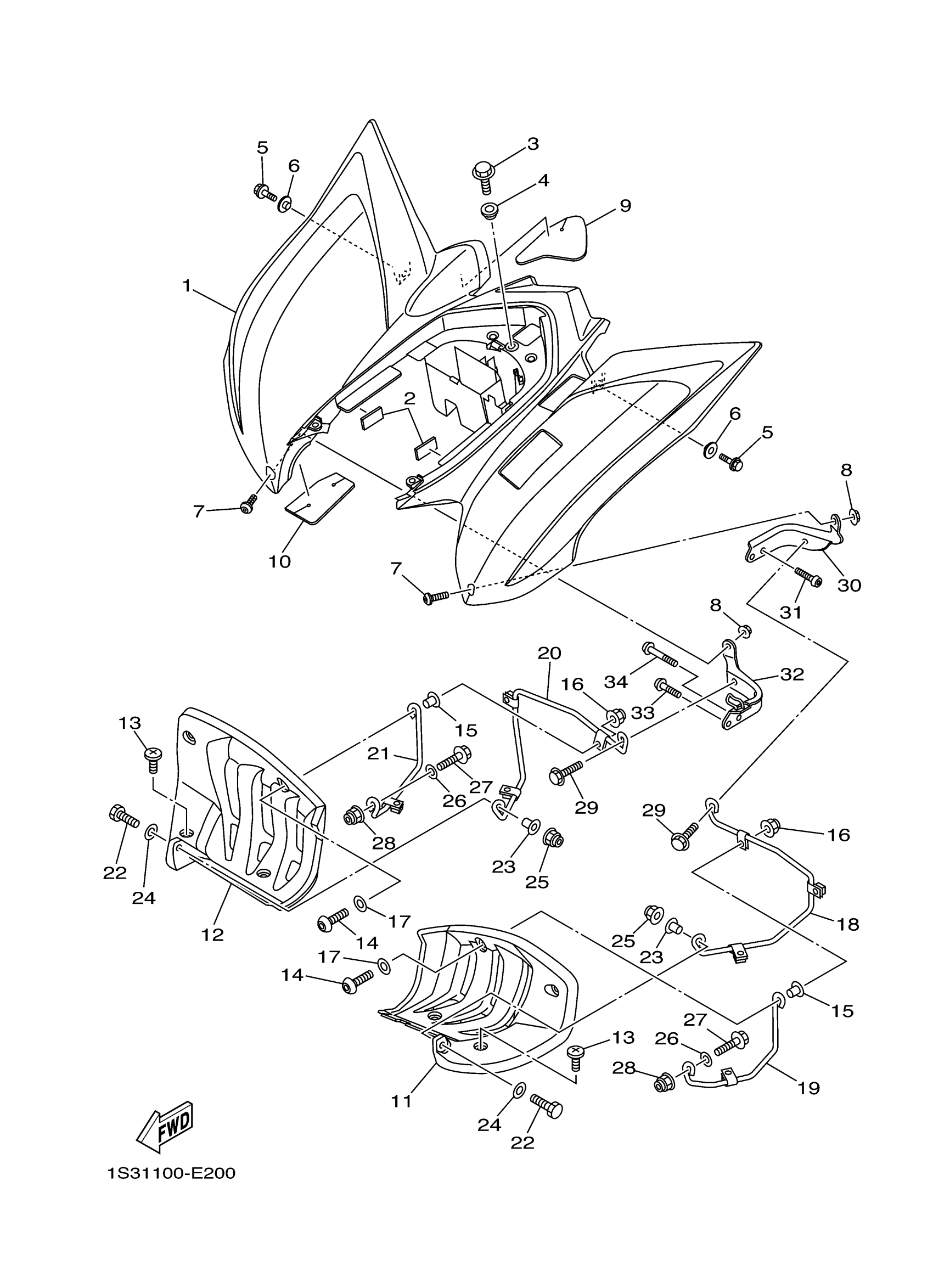

Yamaha YFM700RSPV (RAPTOR 700 50TH ANNIVERSARY) 1S34 2006 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP.

1S3-W2161-20-00

Unavailable

2

DAMPER, STOPPER

1S3-2140A-00-00

$7.99

3

BOLT, FLANGE

90105-06084-00

$4.61

4

COLLAR (8G8)

90387-06648-00

$8.49

5

BOLT, FLANGE

95817-06014-00

Unavailable

6

COLLAR (3L1)

90387-07717-00

$8.49

7

BOLT

90111-06038-00

$4.29

8

NUT,SELF-LOCKING

95607-06200-00

$12.49

9

COVER, REAR FENDER 1

1S3-2163A-00-00

$5.49

10

COVER, REAR FENDER 2

1S3-2163E-00-00

$4.06

11

FLAP

5TG-21621-00-00

$46.99

12

FLAP

5TG-21691-00-00

$46.99

13

SCREW, BINDING (10V)

90154-05013-00

$5.60

14

BOLT, BUTTON HEAD

92017-06025-00

$9.49

15

SPACER (4F2)

90560-06201-00

$13.99

16

NUT,SELF-LOCKING

95607-06200-00

$12.49

17

WASHER, PLATE (8K2)

90201-06778-00

Unavailable

18

STAY 1

1S3-2164F-10-00

Unavailable

19

STAY 3

1S3-2164H-00-00

Unavailable

20

STAY 2

5TG-2164G-20-00

Unavailable

21

STAY 4

1S3-2164J-20-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable

23

COLLAR

90387-06204-00

Unavailable

24

WASHER, PLATE

90201-06013-00

Unavailable

25

NUT,SELF-LOCKING

95607-06200-00

$12.49

26

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

27

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

28

NUT, SELF-LOCKING

90185-08169-00

Unavailable

29

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

30

STAY, REAR

1S3-21643-00-00

Unavailable

31

BOLT, BUTTON

92017-08020-00

Unavailable

32

STAY, REAR

1S3-21644-00-00

Unavailable

33

BOLT, BUTTON

92017-08016-00

Unavailable

34

BOLT, BUTTON HEAD

92017-08035-00

Unavailable
