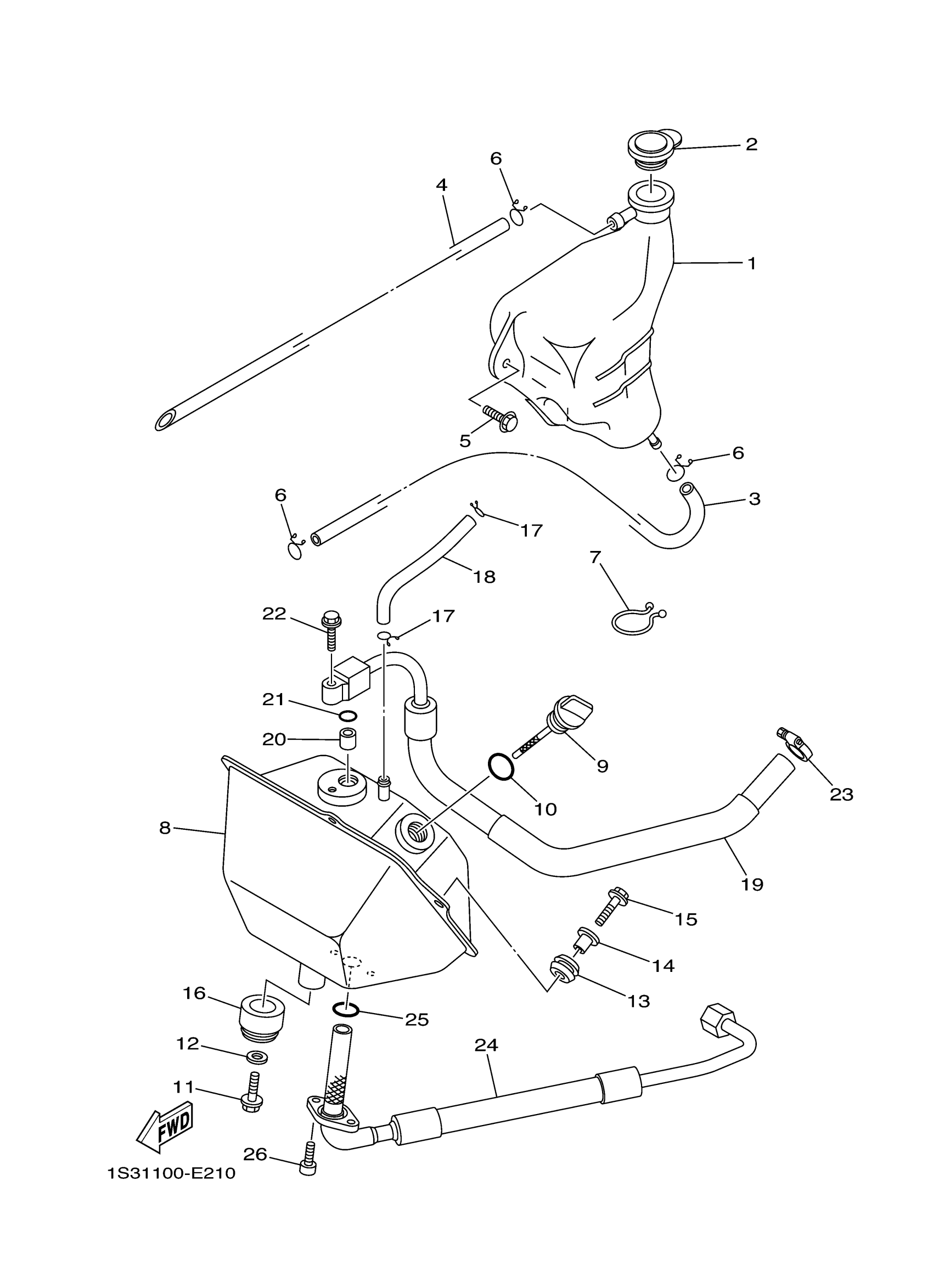

Yamaha YFM700RSPV (RAPTOR 700 50TH ANNIVERSARY) 1S34 2006 OIL TANK Diagram

#

Description
Price

1

TANK, RECOVERY

5KM-21871-00-00

$57.99

2

CAP

1S3-21875-00-00

$9.99

3

HOSE (L865)

90445-09021-00

$36.99

4

HOSE (L420)

90445-092K1-00

$12.49

5

BOLT, WITH WASHER

90119-06152-00

$7.49

6

CLIP 101235600

90467-08003-00

$10.49

7

CLAMP

90464-25267-00

$7.49

8

OIL TANK ASSY

1S3-21750-00-00

Unavailable

9

GAUGE, LEVEL

5LP-21761-01-00

$11.99

10

O-RING

93210-21190-00

$7.49

11

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

12

WASHER, PLATE (4L0)

90201-082A6-00

$3.35

13

GROMMET(1VJ)

90480-13459-00

$2.34

14

COLLAR(80L)

90387-061N6-00

$8.49

15

BOLT, FLANGE

95817-06020-00

$3.81

16

GROMMET

90480-24004-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

HOSE (L147)

90445-11034-00

Unavailable

19

HOSE, OIL 2

1S3-13465-10-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

21

O-RING (371)

93210-10197-00

Unavailable

22

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

23

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

24

HOSE, OIL 1

1S3-13464-00-00

Unavailable

25

O-RING (26H)

93210-16629-00

Unavailable

26

BOLT,SOCKET

91317-06016-00

Unavailable
