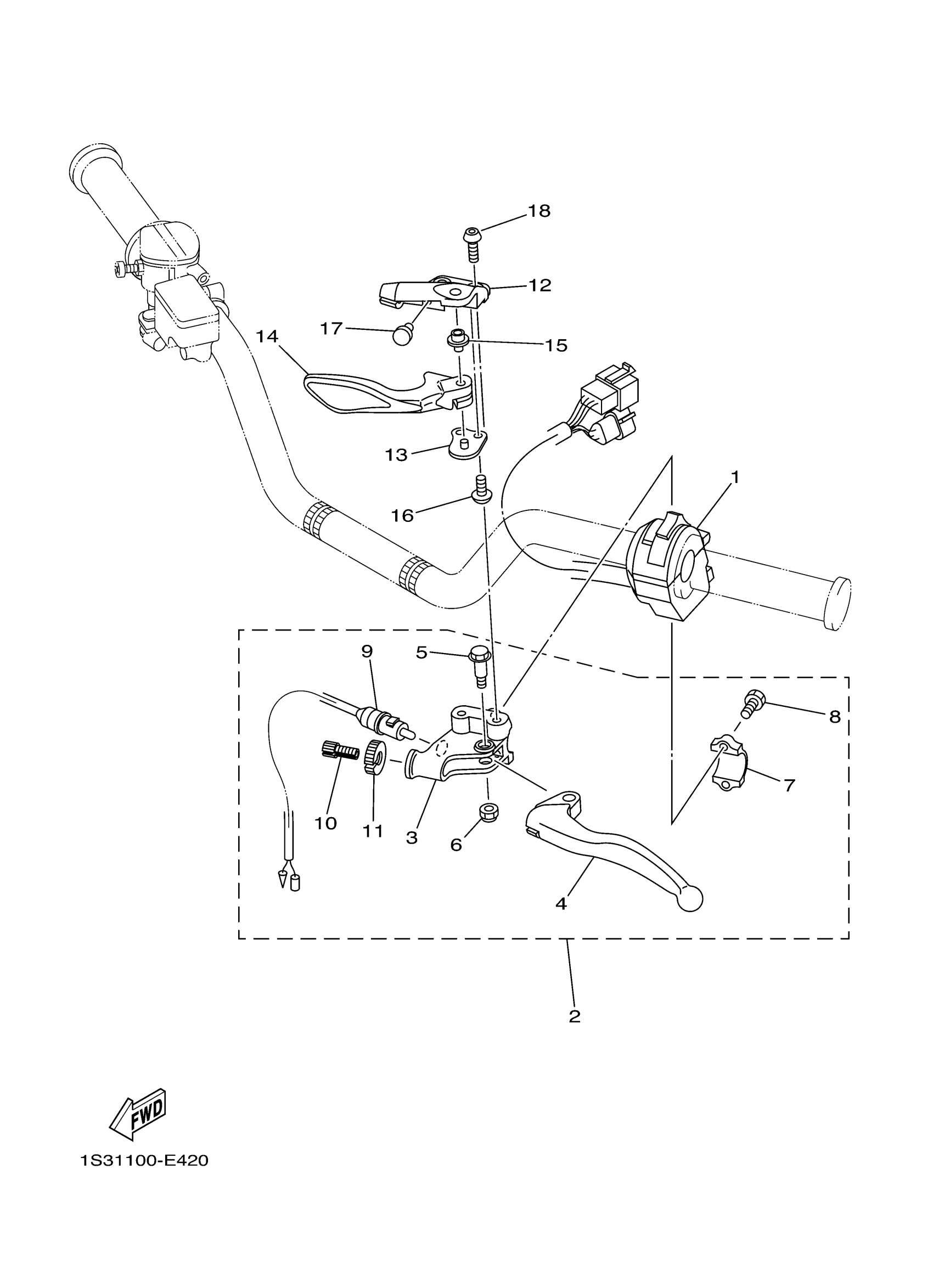

Yamaha YFM700RSPV (RAPTOR 700 50TH ANNIVERSARY) 1S34 2006 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

1S3-83973-12-00

$90.43

2

LEVER HOLDER ASSY

5YT-82910-12-00

Unavailable

3

HOLDER, LEVER 1

5YT-82911-10-00

Unavailable

4

LEVER 1

2HT-83912-01-00

$32.59

5

BOLT(1FG)

90109-06798-00

$5.84

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

HOLDER, LEVER LOWER 1

5TG-82913-00-00

$7.77

8

BOLT(6A1)

97095-05016-00

$1.44

9

SWITCH

5KM-82917-00-00

$47.41

10

BOLT

90123-08002-00

$8.57

11

NUT

90179-08030-00

$3.63

12

BRACKET, LEVER

1S3-25727-01-00

Unavailable

13

PLATE, GUIDE

5D3-25689-00-00

$6.61

14

LEVER, BRAKE

1S3-25726-02-00

Unavailable

15

COLLAR, LEVER 2

5TG-83923-00-00

$10.89

16

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

17

PLUG

90338-07007-00

Unavailable

18

BOLT, BUTTON

92014-06016-00

Unavailable
