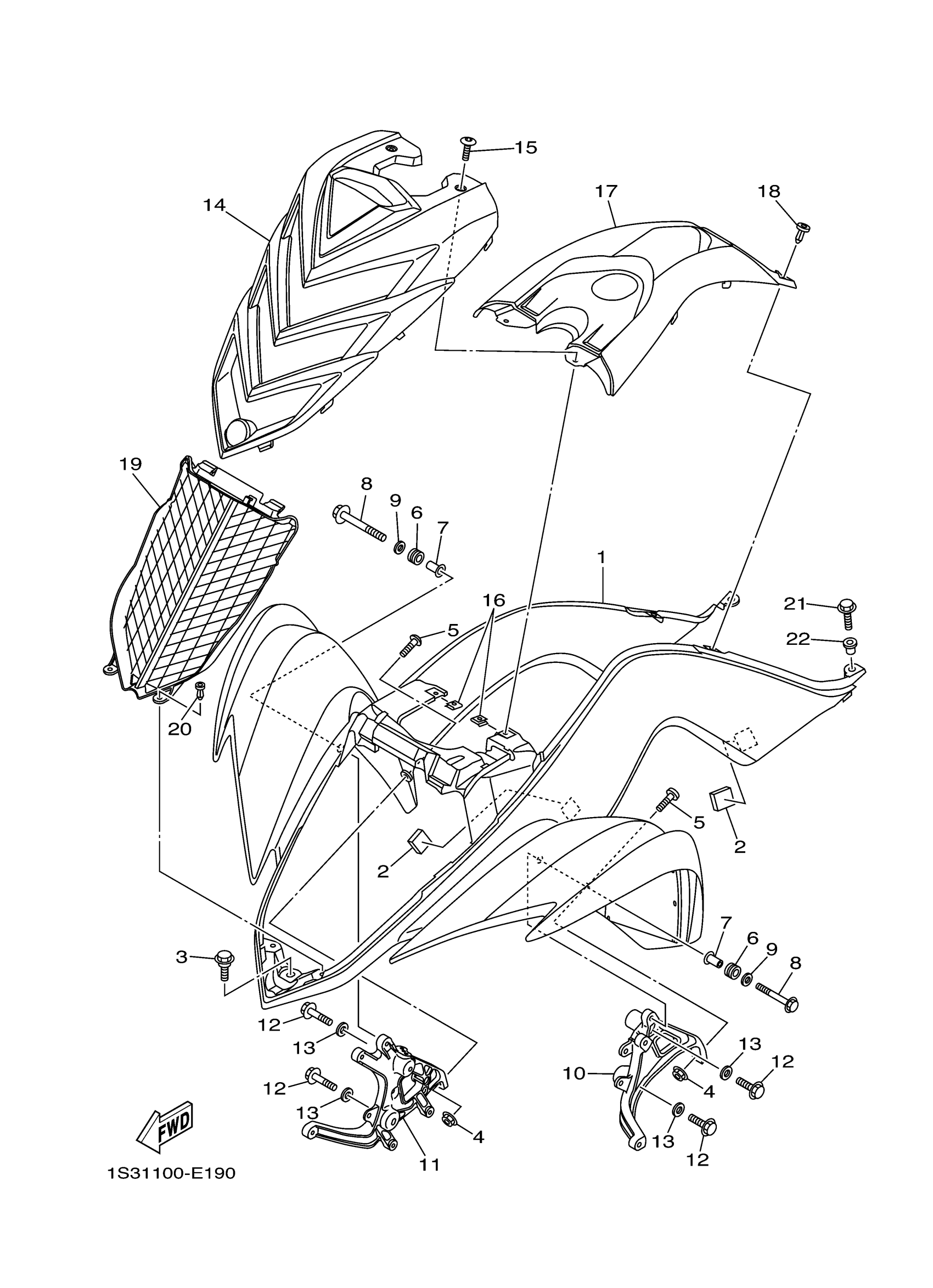

Yamaha YFM700RSPV (RAPTOR 700 50TH ANNIVERSARY) 1S34 2006 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

1S3-W2151-20-00

Unavailable

2

DAMPER 1

1S3-21541-00-00

$7.99

3

BOLT(3KJ)

90109-063F1-00

$2.97

4

NUT,SELF-LOCKING

95607-06200-00

$12.49

5

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

6

GROMMET 839774310000

90480-14023-00

$7.49

7

COLLAR

90387-06136-00

$7.49

8

BOLT, FLANGE

95817-06030-00

$4.29

9

WASHER, PLATE

90201-06557-00

$3.30

10

STAY, FENDER 1

1S3-21513-00-00

$65.99

11

STAY, FENDER 2

1S3-21514-00-00

$80.99

12

BOLT, FLANGE

95817-06014-00

Unavailable

13

. WASHER, PLATE

90201-06050-00

Unavailable

14

FENDER, FRONT 2

1S3-21556-B0-00

Unavailable

15

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

16

NUT, SPRING

90183-05008-00

Unavailable

17

COVER, TOP

1S3-2171A-00-00

Unavailable

18

RIVET

90269-06002-00

Unavailable

19

COVER, RADIATOR

1S3-12467-00-00

Unavailable

20

RIVET

90269-06002-00

Unavailable

21

BOLT, FLANGE

90105-06084-00

Unavailable

22

COLLAR (838-84757-00)

90387-06024-00

Unavailable
