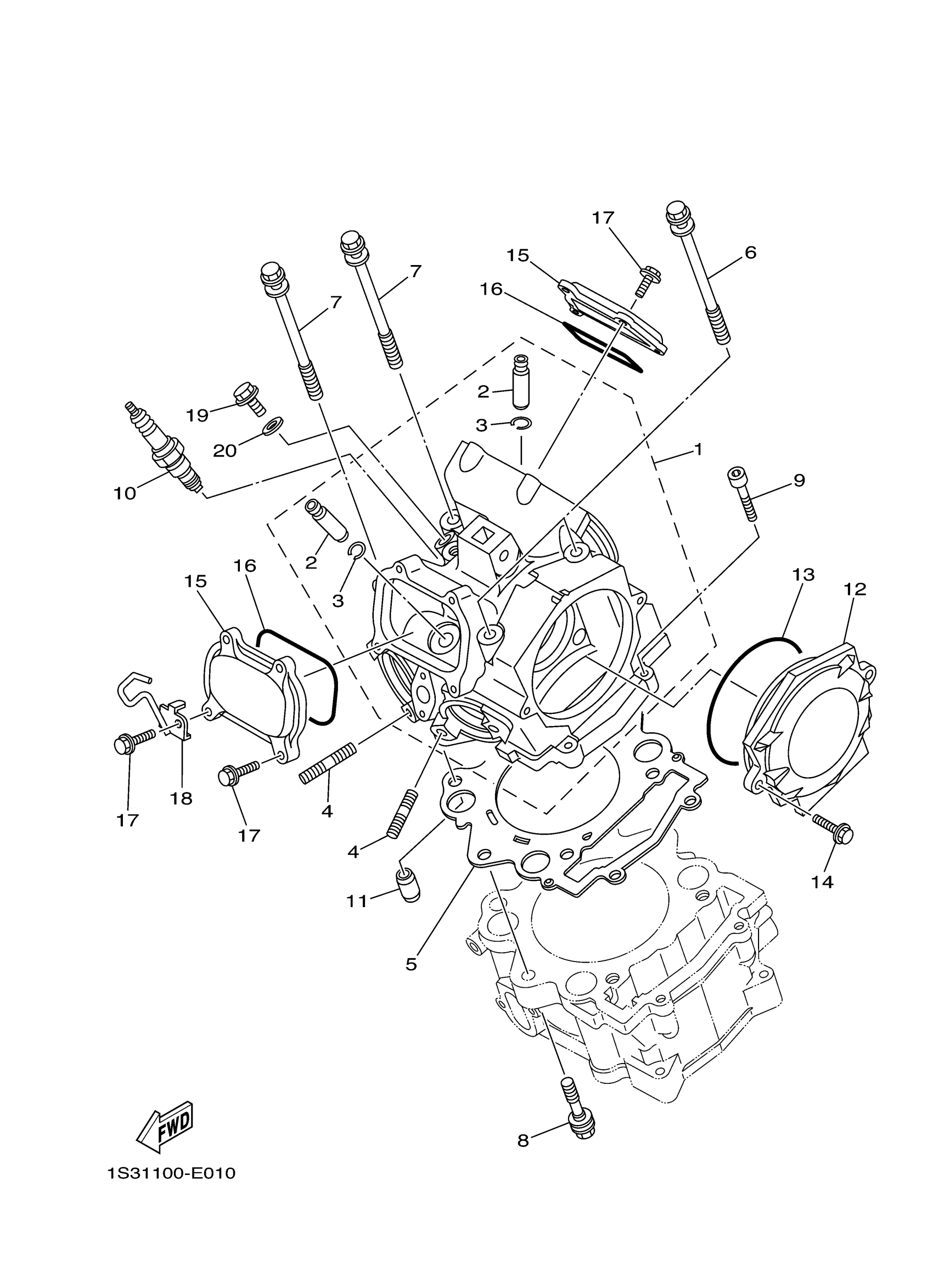

Yamaha YFM700RSPV (RAPTOR 700 50TH ANNIVERSARY) 1S34 2006 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1S3-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$41.54

3

CIRCLIP (4G0)

93440-10085-00

$5.75

4

BOLT, STUD

95612-08625-00

$4.37

5

GASKET, CYLINDER HEAD 1

3B4-11181-00-00

$45.39

6

BOLT

90109-09003-00

$8.51

7

BOLT

90109-09002-00

$8.51

8

BOLT

90109-09005-00

$6.90

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

10

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

$8.42

11

PIN, DOWEL(4XL)

93612-16254-00

$4.07

12

COVER, CYLINDER HEAD SIDE 3

1S3-11185-10-00

$67.09

13

O-RING (70R)

93210-96601-00

$9.99

14

BOLT, FLANGE

95022-06020-00

$3.11

15

COVER, CYLINDER HEAD SIDE 2

1S3-11186-00-00

$25.17

16

O-RING (14X)

93210-78544-00

Unavailable

17

BOLT, FLANGE

95022-06020-00

$3.11

18

HOLDER 1

1S3-1131E-00-00

Unavailable

19

BOLT, UNION

90401-08004-00

Unavailable

20

GASKET

90430-08119-00

Unavailable
