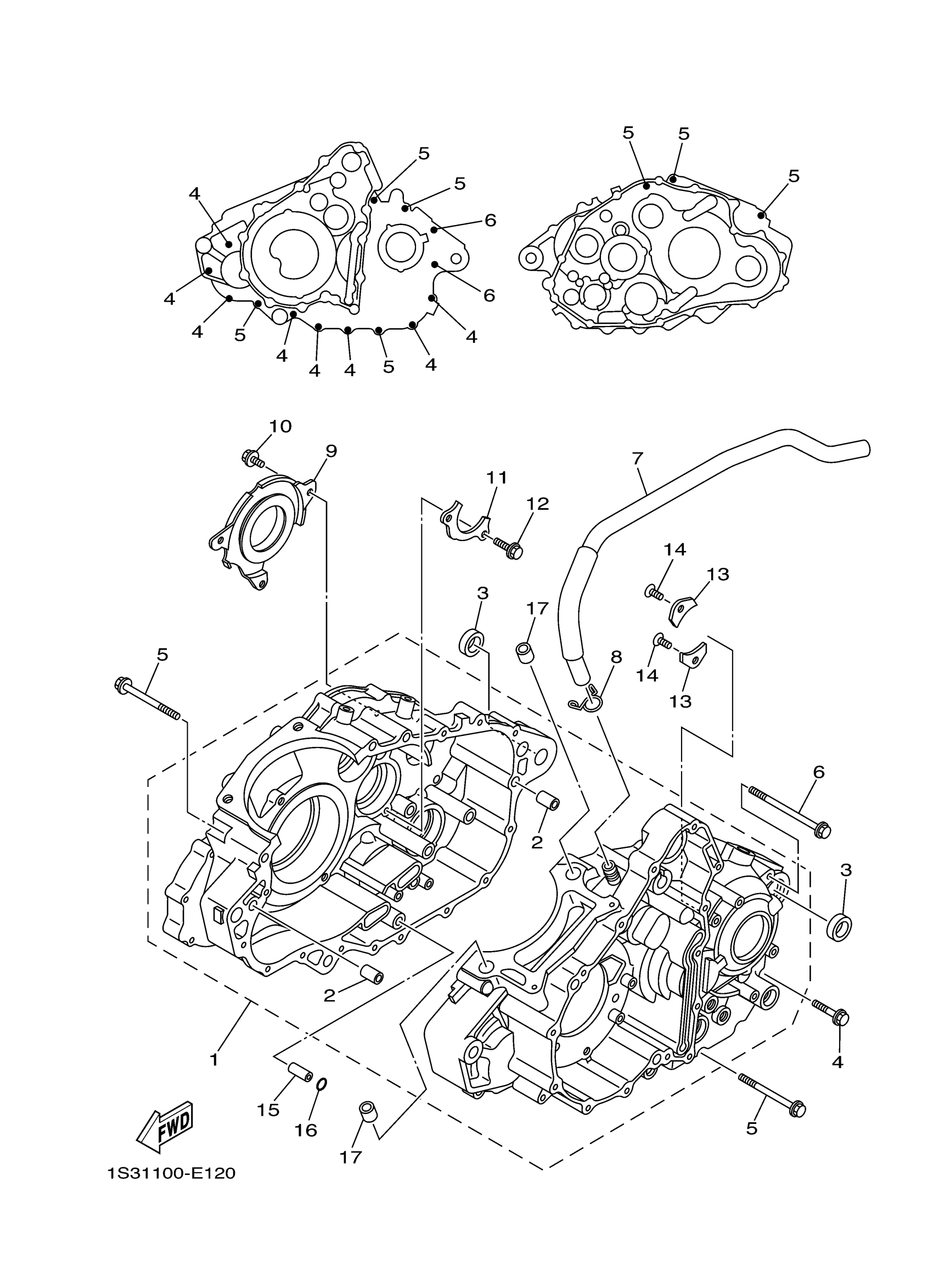

Yamaha YFM700RSPV (RAPTOR 700 50TH ANNIVERSARY) 1S34 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

1S3-15100-08-00

$1,440.99

2

PIN, DOWEL(3VD)

99530-10114-00

$2.03

3

COLLAR

90387-17009-00

$13.78

4

BOLT, FLANGE

95022-06030-00

$1.49

5

BOLT, FLANGE

95022-06070-00

$1.92

6

BOLT, FLANGE

95022-06090-00

$1.64

7

PIPE, BREATHER 1

1S3-11166-00-00

Unavailable

8

CLIP (371)

90467-14015-00

$7.18

9

PLATE, BREATHER

1S3-11165-00-00

$14.27

10

BOLT, FLANGE

95022-06012-00

$2.86

11

PLATE, BEARING COVER

1S3-15383-00-00

$6.42

12

BOLT, FLANGE

95022-06020-00

$3.16

13

PLATE, BEARING COVER

4JT-15381-01-00

$10.03

14

SCREW, COUNTERSUNK

90151-06052-00

$6.08

15

PIN, DOWEL(3XW)

91808-16023-00

$5.37

16

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

17

PIN, DOWEL

99530-14016-00

Unavailable
