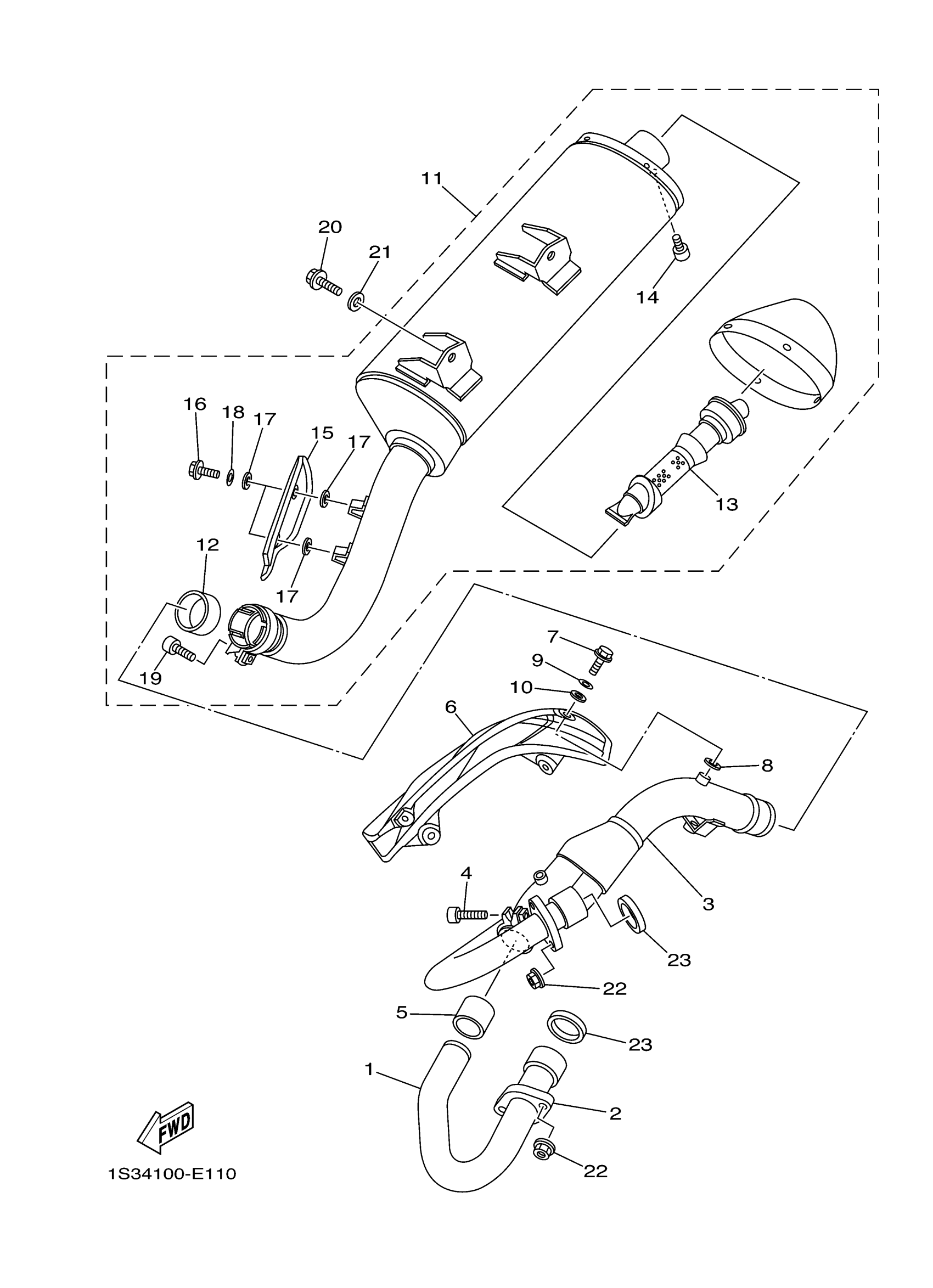

Yamaha YFM700RSES (RAPTOR 700R SE) 1VS90 2014 EXHAUST Diagram
#
Description
Price
2
NUT, RING
1S3-14612-00-00
Unavailable
3
PIPE, EXHAUST 2
1S3-14621-01-00
Unavailable
9
WASHER, PLATE
90201-06013-00
Unavailable
11
MUFFLER ASSY 1
1S3-14710-12-00
Unavailable
13
PIPE, OUTLET
1S3-14752-00-00
Unavailable
16
SCREW, BIND(1JK)
98980-06010-00
Unavailable
18
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
20
BOLT, FLANGE
90105-08142-00
Unavailable
21
WASHER, PLATE
90201-08048-00
Unavailable
22
NUT,FLANGE(J10)
95702-08500-00
Unavailable
23
GASKET, EXHAUST PIPE
3YF-14613-01-00
Unavailable
