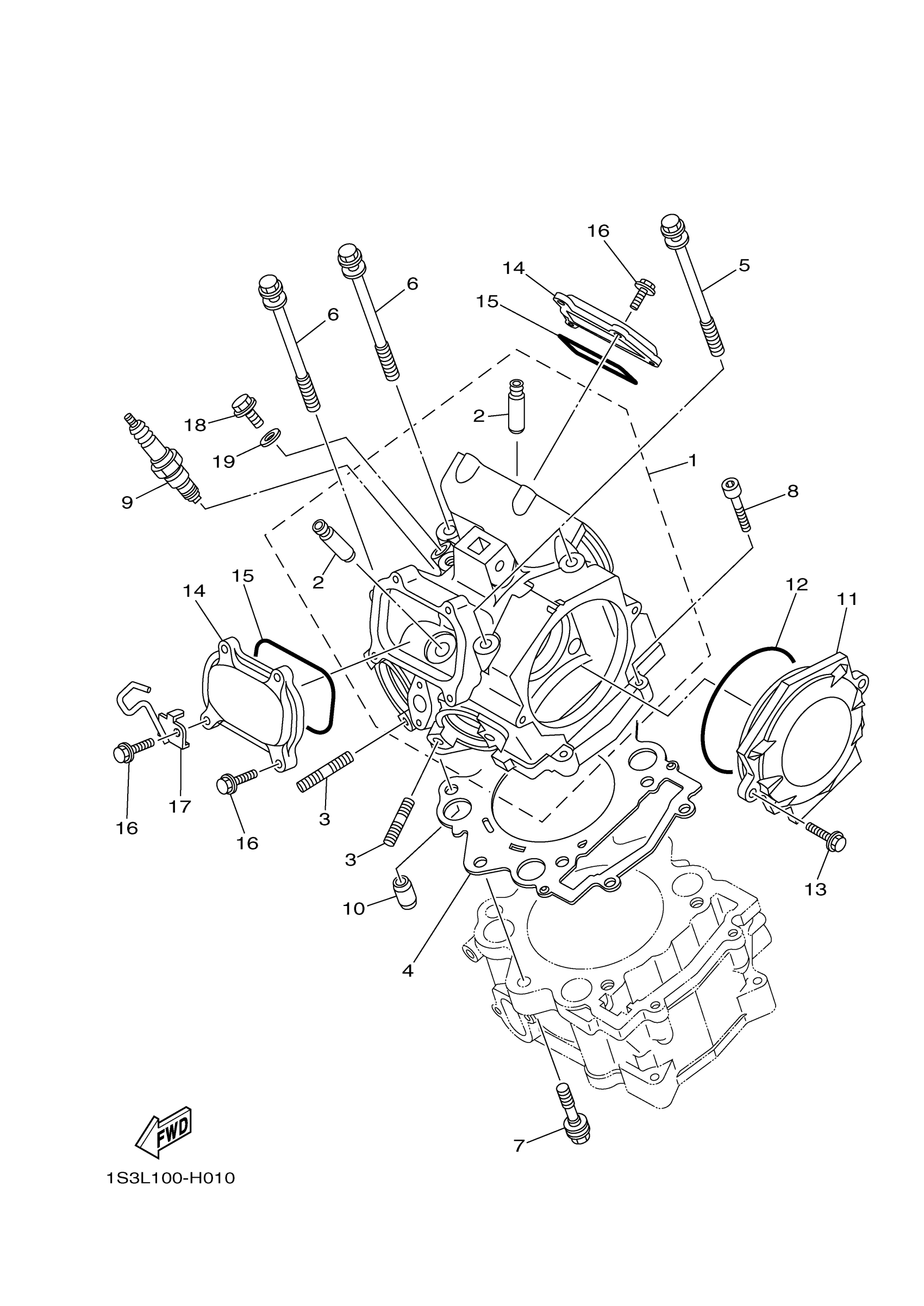

Yamaha YFM700RSES (RAPTOR 700R SE) 1VS90 2014 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1S3-11101-10-00

$1,002.35

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$41.54

3

BOLT, STUD

95612-08625-00

$4.37

4

GASKET, CYLINDER HEAD 1

3B4-11181-00-00

$45.39

5

BOLT

90109-09003-00

$8.51

6

BOLT

90109-09002-00

$8.51

7

BOLT

90109-09005-00

$6.90

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

9

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

$8.42

10

PIN, DOWEL(4XL)

93612-16254-00

$4.07

11

COVER, CYLINDER HEAD SIDE 3

1S3-11185-10-00

$67.09

12

O-RING (70R)

93210-96601-00

$9.99

13

BOLT, FLANGE

95022-06020-00

$3.11

14

COVER, CYLINDER HEAD SIDE 2

1S3-11186-00-00

$25.17

15

O-RING (14X)

93210-78544-00

$9.93

16

BOLT, FLANGE

95022-06020-00

$3.11

17

HOLDER 1

1S3-1131E-00-00

Unavailable

18

BOLT, UNION

90401-08004-00

Unavailable

19

GASKET

90430-08119-00

Unavailable
