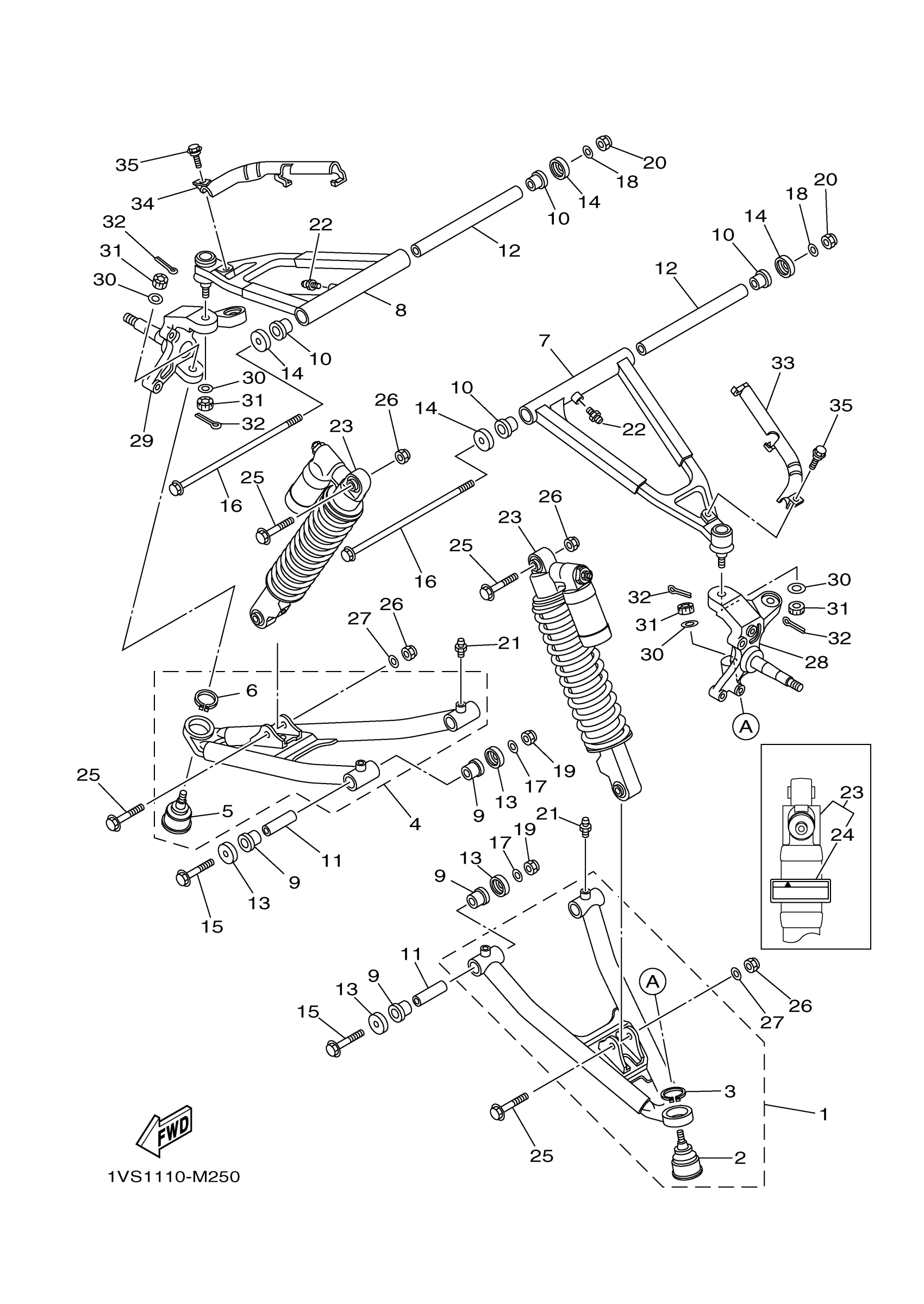

Yamaha YFM700RSEM (RAPTOR 700R SE) 1VSD 2014 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT LOWER ARM CO
1PE-F3570-60-00
Unavailable
7
FRONT UPPER ARM COMP. (LEFT)
5TG-23540-62-00
Unavailable
8
FRONT UPPER ARM COMP. (RIGHT)
5TG-23550-62-00
Unavailable
16
BOLT, WASHER BASED(3GG)
90105-10651-00
Unavailable
17
WASHER, PLATE
90201-10037-00
Unavailable
18
WASHER, PLATE
90201-10037-00
Unavailable
19
NUT, SELF-LOCKING
90185-10012-00
Unavailable
20
NUT, SELF-LOCKING
90185-10012-00
Unavailable
21
NIPPLE, GREASE
93700-06M03-00
Unavailable
22
NIPPLE, GREASE
93700-06M03-00
Unavailable
23
CUSHION ASSY. 2
B46-F3390-01-00
Unavailable
24
LABEL,WARNING
1HP-F2259-01-00
Unavailable
25
BOLT, FLANGE
90105-10131-00
Unavailable
26
NUT, SELF-LOCKING
90185-10012-00
Unavailable
27
WASHER, PLATE
90201-10035-00
Unavailable
28
STEERING KNUCKLE ASSY (LEFT)
1S3-23501-01-00
Unavailable
29
STEERING KNUCKLE ASSY (RIGHT)
1S3-23502-01-00
Unavailable
30
WASHER (25G)
90209-10229-00
Unavailable
31
NUT, CASTLE
90171-10001-00
Unavailable
32
PIN, COTTER
91490-20025-00
Unavailable
33
HOLDER, BRAKE HOSE 1
5TG-25875-00-00
Unavailable
34
HOLDER, BRAKE HOSE 2
5TG-25876-00-00
Unavailable
35
BOLT
90109-06264-00
Unavailable
