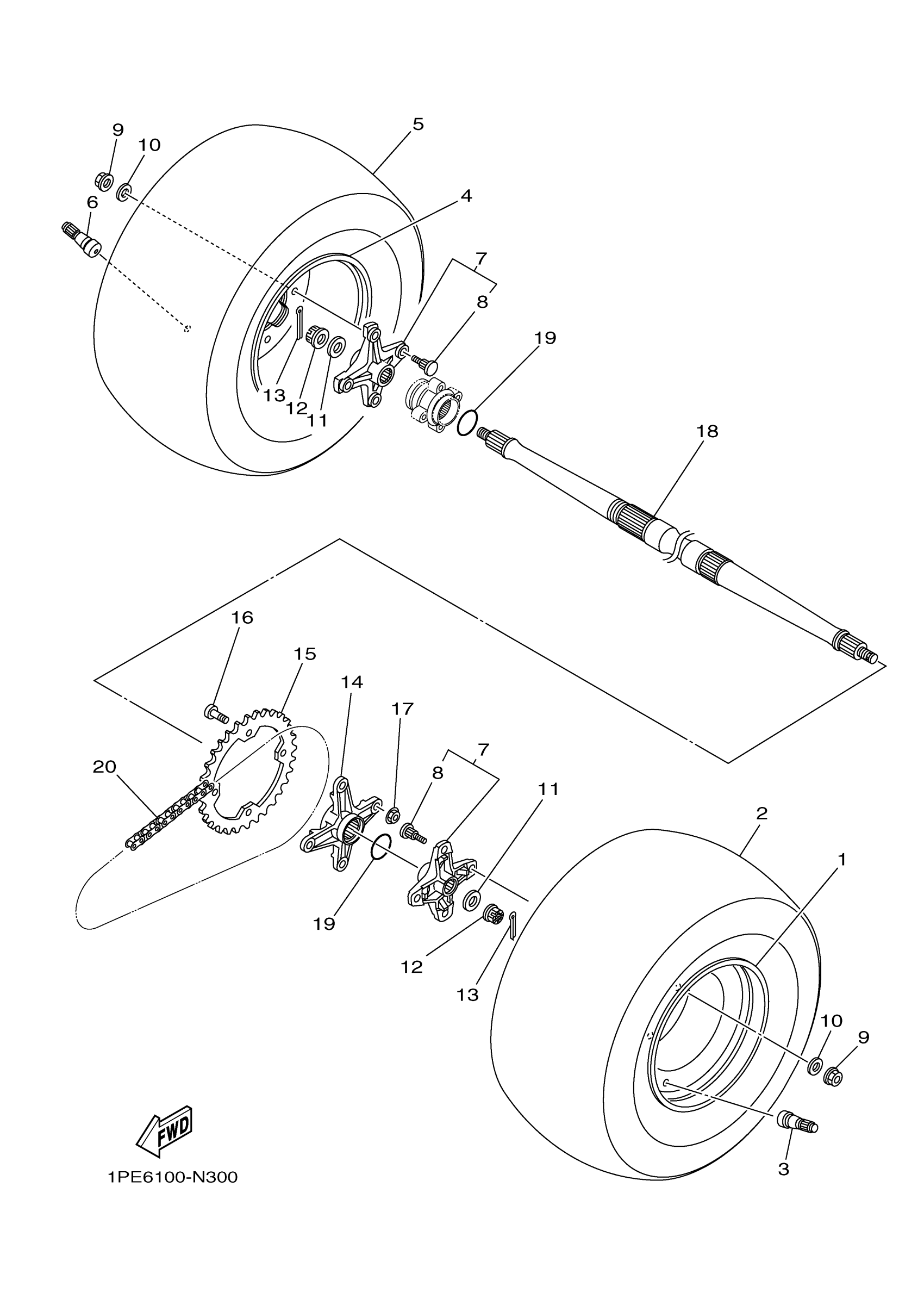

Yamaha YFM700REO (RAPTOR 700) 1PE5 2014 REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR

1TD-F5390-11-00

$265.99

2

AT 20 X 10-9 M976Y

94110-09801-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

WHEEL,REAR

1TD-F5390-11-00

$265.99

5

AT 20 X 10-9 M976Y

94110-09801-00

Unavailable

6

VALVE, RIM

93900-00812-00

Unavailable

7

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

8

BOLT, SERRATION

90114-10020-00

$5.60

9

NUT, FLANGE(3BM)

95704-10500-00

$4.29

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

WASHER, PLATE

90201-16023-00

$8.49

12

NUT, CASTLE

90171-16002-00

$20.99

13

PIN, COTTER

90252-03001-00

$1.96

14

COLLAR, SPROCKET A

1PE-F5386-00-00

$143.99

15

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$43.99

16

BOLT

90109-10013-00

Unavailable

17

NUT, SELF-LOCKING

90185-10011-00

Unavailable

18

AXLE, WHEEL

BFK-F5381-01-00

Unavailable

19

O-RING(2TY)

93210-36769-00

Unavailable

20

CHAIN (DID520MXV4-

94582-38098-00

Unavailable
