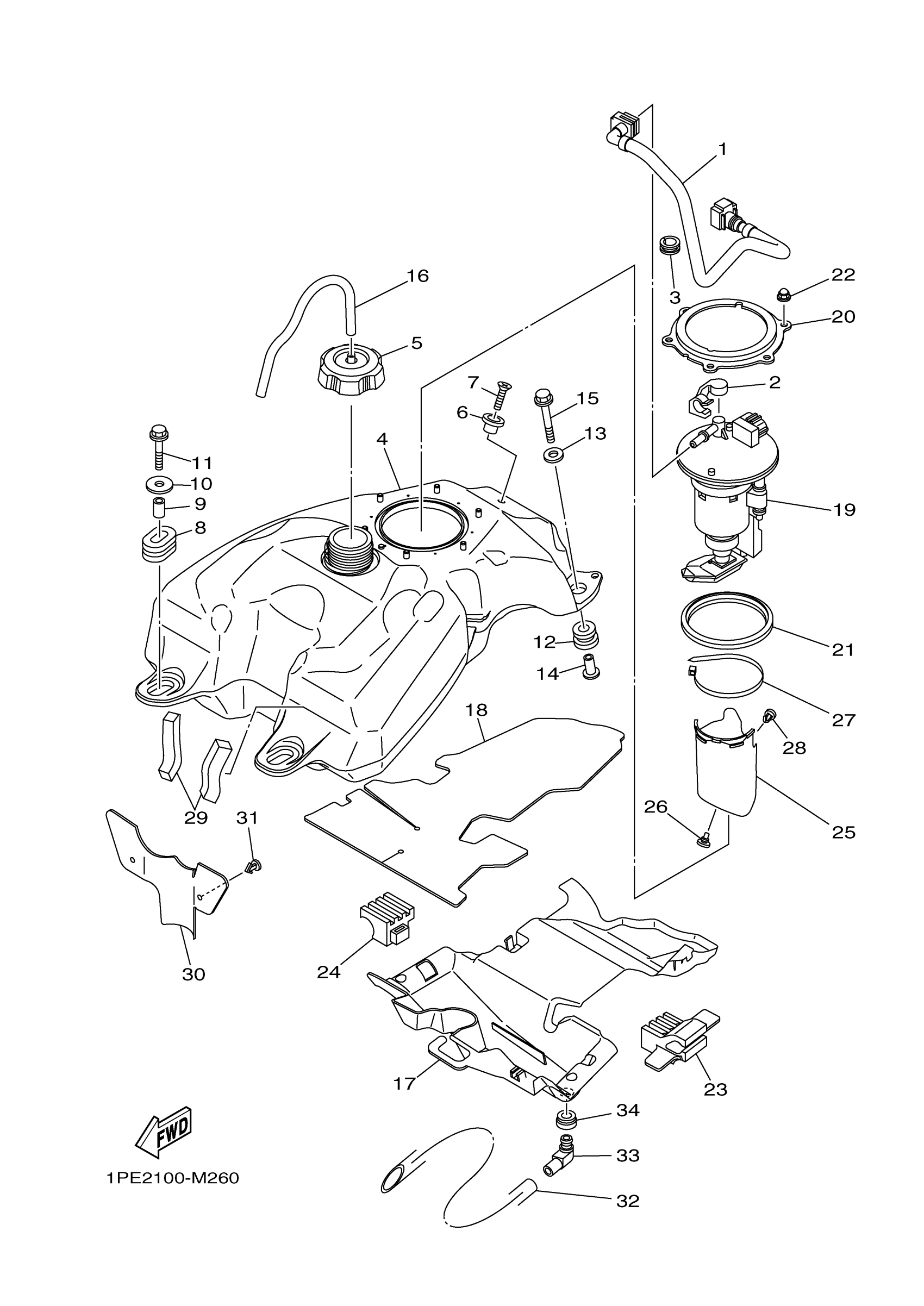

Yamaha YFM700REO (RAPTOR 700) 1PE5 2014 FUEL TANK Diagram

#

Description
Price

1

PIPE, FUEL 1

1PE-13971-01-00

$69.99

2

CLAMP

90464-14004-00

$7.49

3

GROMMET

90480-17011-00

Unavailable

4

FUEL TANK COMP.

1PE-F4110-00-00

$230.99

5

CAP ASSY

2FJ-24610-20-00

$68.99

6

BRACKET, SEAT

4EW-2412F-00-00

$14.49

7

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

8

GROMMET

90480-01017-00

Unavailable

9

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

10

WASHER, PLATE

90201-06090-00

$5.60

11

BOLT, FLANGE

95817-06035-00

$7.49

12

GROMMET

90480-18005-00

$8.49

13

WASHER, PLATE

90201-06033-00

$2.97

14

COLLAR

90387-06098-00

$8.49

15

BOLT, FLANGE

95817-06035-00

$7.49

16

HOSE (L600)

90445-083J5-00

Unavailable

17

DAMPER, PLATE 1

1S3-2414H-00-00

Unavailable

18

INSULATOR, FUEL TA

1PE-F416F-00-00

Unavailable

19

FUEL PUMP COMP.

1S3-13907-13-00

Unavailable

20

BRACKET, FUEL PUMP

1S3-24491-10-00

Unavailable

21

O-RING

1S3-24486-00-00

Unavailable

22

NUT (J17)

95380-06800-00

Unavailable

23

STOPPER 1

1S3-24278-00-00

Unavailable

24

STOPPER 2

1S3-24279-00-00

Unavailable

25

COVER

1S3-24452-00-00

Unavailable

26

PLUG

90338-05008-00

Unavailable

27

CLAMP

90464-66001-00

Unavailable

28

RIVET

90269-07011-00

Unavailable

29

DAMPER, LOCATING 2

1S3-24182-00-00

Unavailable

30

PLATE

1S3-2413X-00-00

Unavailable

31

RIVET(81E)

90269-05055-00

Unavailable

32

HOSE (L400)

90445-16007-00

Unavailable

33

PIPE

31A-14419-00-00

Unavailable

34

GROMMET

31A-14435-01-00

Unavailable
