Description

Price

1

WHEEL COMP.

2BG-F5180-B0-00

Unavailable

2

TIRE (AT25X8-12 MU19A**TL)

94108-12819-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10032-00

$13.49

5

HUB ASSY 2

B16-F510D-03-00

$47.99

6

BOLT, SERRATION

90114-10014-00

$7.49

7

STEERING,KNUCKLE (R)

2BG-F3502-11-00

$163.99

8

BEARING

93305-00602-00

$101.99

9

CIRCLIP

99009-55500-00

$9.49

10

BALL JOINT 2

3B4-23579-01-00

$83.99

11

CIRCLIP(4A6)

99009-30400-00

$8.49

12

RING, WHEEL 1 (LEF

BB5-F514A-00-00

$14.99

13

SCREW, BIND(1JK)

98980-06010-00

$9.49

14

DOUBLE OFF SET JOI

28P-2510J-02-00

$293.99

15

BALL JOINT SET

28P-2510F-05-00

$506.99

16

BOOT SET(DOUBLE OF

28P-2510H-03-00

Unavailable

17

BOOT SET (BALL JOI

28P-2510G-02-00

Unavailable

18

SHAFT

2BG-2518E-00-00

Unavailable

19

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

Unavailable

20

BOOT BAND (SMALL)

3B4-2512G-00-00

Unavailable

21

BOOT BAND (SMALL)

28P-2512G-00-00

Unavailable

22

SNAP RING

3B4-2512J-00-00

Unavailable

23

CIRCLIP

3B4-2512H-00-00

Unavailable

24

CIRCLIP

3B4-25182-00-00

Unavailable

25

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

26

CIRCLIP(2HR)

93450-22119-00

Unavailable

27

NUT

90179-20016-00

Unavailable

28

WHEEL CAP ASSY.

1RB-F530B-00-00

Unavailable

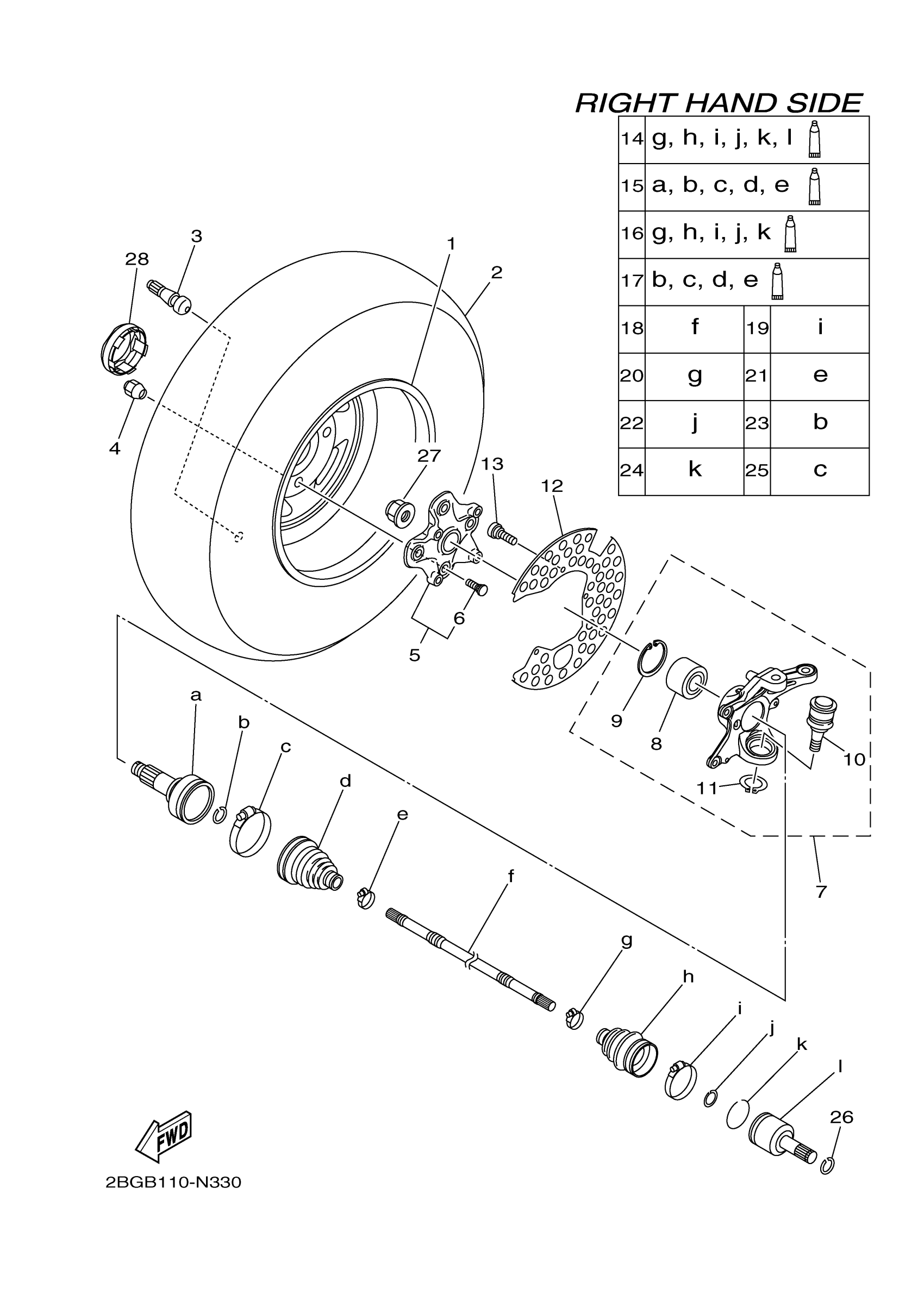

Yamaha YFM700PSEB (GRIZZLY 700 FI EPS SE) 2BGB 2014 FRONT WHEEL 2 Diagram

WHEEL COMP.

TIRE (AT25X8-12 MU19A**TL)

VALVE, RIM

NUT

HUB ASSY 2

BOLT, SERRATION

STEERING,KNUCKLE (R)

BEARING

CIRCLIP

BALL JOINT 2

CIRCLIP(4A6)

RING, WHEEL 1 (LEF

SCREW, BIND(1JK)

DOUBLE OFF SET JOI

BALL JOINT SET

BOOT SET(DOUBLE OF

BOOT SET (BALL JOI

SHAFT

BOOT BAND(DOUBLE OFFSET JOINT)

BOOT BAND (SMALL)

BOOT BAND (SMALL)

SNAP RING

CIRCLIP

CIRCLIP

BOOT BAND(DOUBLE OFFSET JOINT)

CIRCLIP(2HR)

NUT

WHEEL CAP ASSY.
