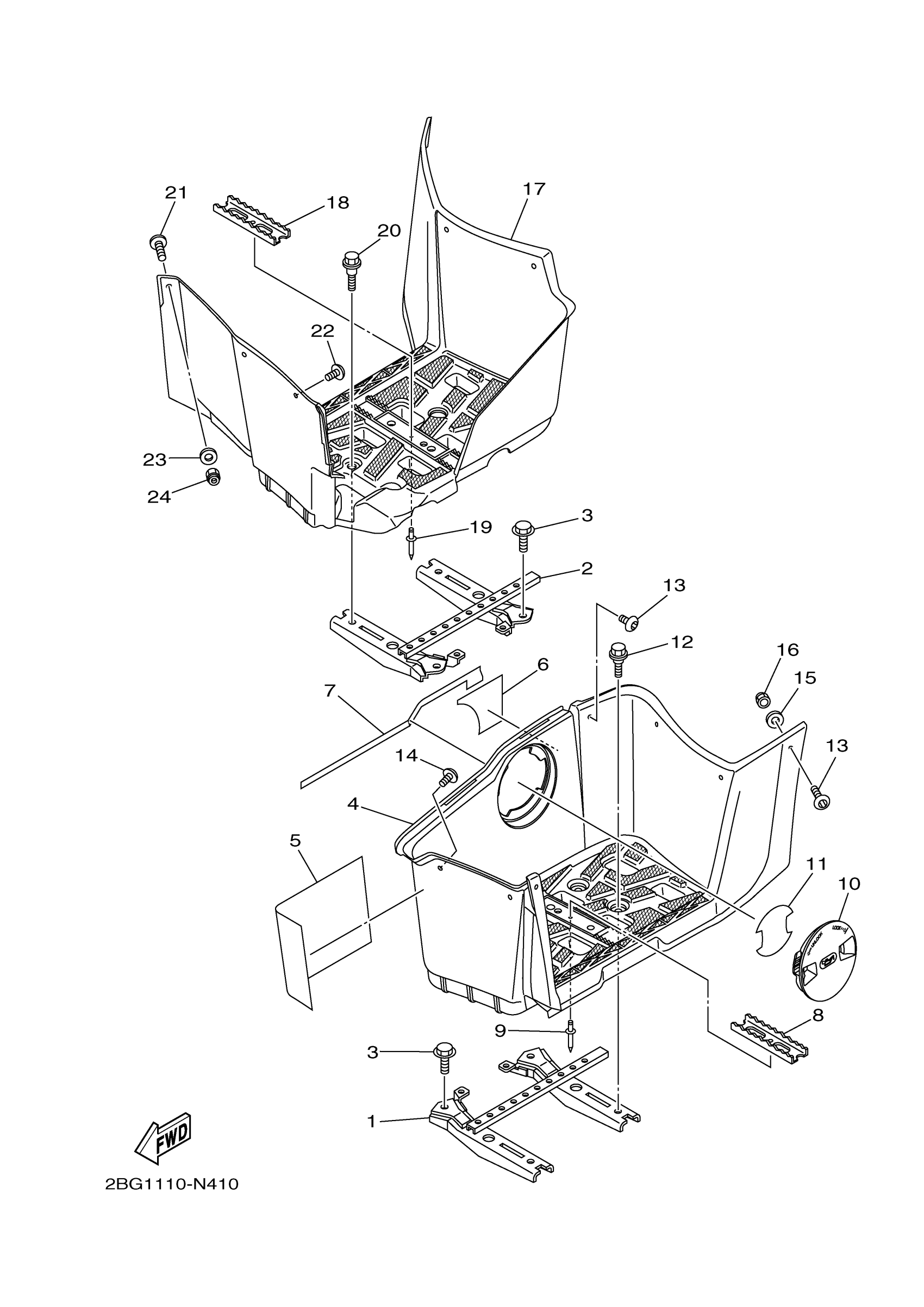

Yamaha YFM700PHFH (GRIZZLY 700 EPS HUNTER) B385 2015 STAND FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST

1HP-F7452-00-00

$58.99

2

BRACKET, FOOTREST

1HP-F7462-00-00

$61.99

3

BOLT, FLANGE

95817-08012-00

$5.49

4

COVER 1

1HP-F7453-00-00

$67.99

5

SEAL 1

3B4-21732-00-00

$10.99

6

SEAL 3

1HP-F2875-01-00

$6.99

7

SEAL 2

2BG-F2874-01-00

$4.21

8

ARM 1

5UH-F741A-10-00

$5.49

9

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

10

COVER 3

1HP-F8239-00-00

Unavailable

11

SEAL 2

1HP-F1735-00-00

$9.99

12

BOLT

90109-06172-00

$7.49

13

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

14

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

15

WASHER, PLATE

90201-06078-00

$5.60

16

NUT, NYLON

95707-06300-00

Unavailable

17

COVER 2

1HP-F7463-00-00

Unavailable

18

ARM 1

5UH-F741A-10-00

$5.49

19

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

20

BOLT

90109-06172-00

$7.49

21

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

22

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

23

WASHER, PLATE

90201-06078-00

$5.60

24

NUT, NYLON

95707-06300-00

Unavailable
