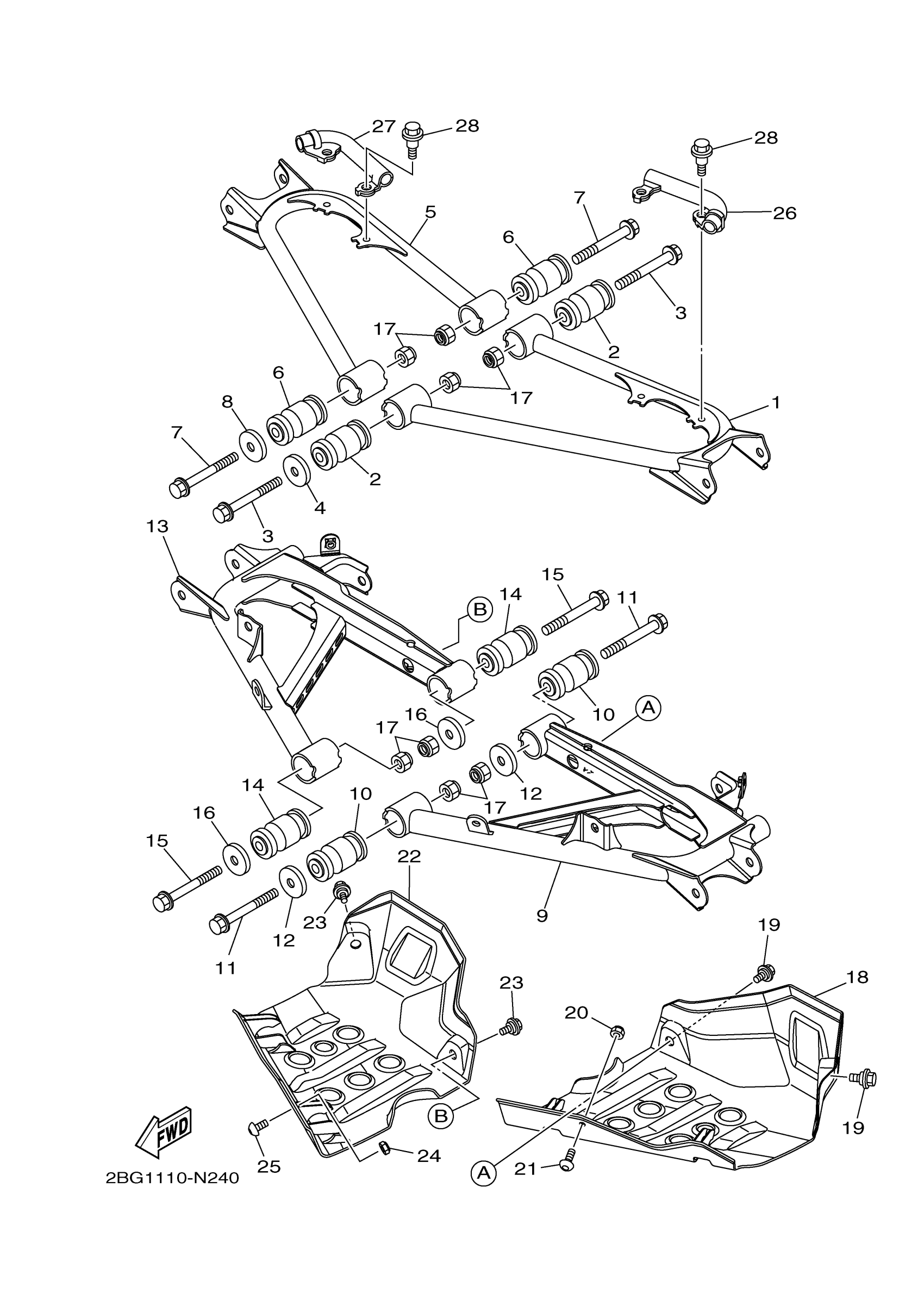

Yamaha YFM700PHFH (GRIZZLY 700 EPS HUNTER) B385 2015 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

2BG-F2171-01-00

Unavailable

2

BUSH

1HP-F3526-00-00

$22.99

3

BOLT, FLANGE

90105-10222-00

$5.60

4

WASHER

5KM-22149-10-00

$7.99

5

ARM, REAR 2

2BG-F2172-01-00

$40.99

6

BUSH

1HP-F3526-00-00

$22.99

7

BOLT, FLANGE

90105-10222-00

$5.60

8

WASHER

5KM-22149-10-00

$7.99

9

ARM 1

2BG-F217M-02-00

Unavailable

10

BUSH

1HP-F3526-00-00

$22.99

11

BOLT, FLANGE

90105-10222-00

$5.60

12

WASHER

5KM-22149-10-00

$7.99

13

ARM 2

2BG-F217N-02-00

$53.99

14

BUSH

1HP-F3526-00-00

$22.99

15

BOLT, FLANGE

90105-10222-00

$5.60

16

WASHER

5KM-22149-10-00

$7.99

17

NUT, SELF-LOCKING

90185-10012-00

Unavailable

18

COVER,THRUST 1

2BG-F2128-01-00

Unavailable

19

BOLT

90109-06264-00

Unavailable

20

NUT, NYLON

95707-06300-00

Unavailable

21

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

22

COVER,THRUST 2

2BG-F2129-01-00

Unavailable

23

BOLT

90109-06264-00

Unavailable

24

NUT, NYLON

95707-06300-00

Unavailable

25

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

26

PROTECTOR 1

1HP-F315H-00-00

Unavailable

27

PROTECTOR 2

1HP-F315J-00-00

Unavailable

28

BOLT

90109-06840-00

Unavailable
