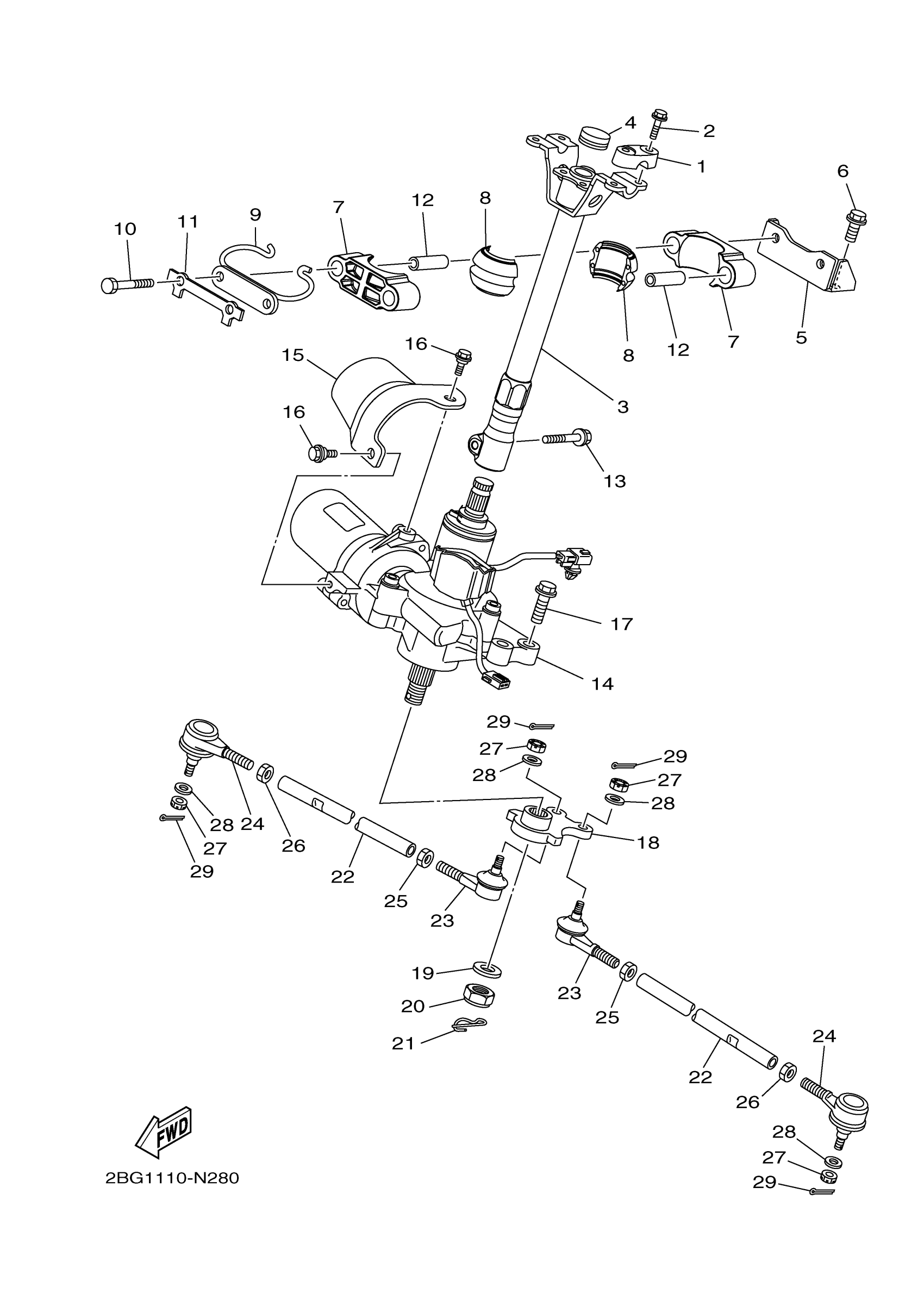

Yamaha YFM700PHEH (GRIZZLY 700 FI EPS HUNTING) 2BG8 2014 STEERING Diagram

#

Description
Price

1

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

2

BOLT, FLANGE

95812-08030-00

$3.81

3

COLUMN, STEERING 2

1HP-F3813-10-00

$177.99

4

PLUG, TAPER(2HR)

90336-28053-00

$10.49

5

SUPT., STRG. COLUM

1HP-F2517-10-00

$16.49

6

BOLT, FLANGE

90105-10876-00

$11.49

7

BRACKET, STEERING

1CT-F1957-00-00

Unavailable

8

PLANE BEARING, STE

1CT-F3812-00-00

$7.99

9

BRACKET, STEERING

1CT-F3868-00-00

$8.99

10

BOLT

97012-08080-00

Unavailable

11

WASHER, LOCK 1

1CT-F3894-00-00

Unavailable

12

COLLAR, 2

1CT-F1545-01-00

$3.23

13

BOLT

90109-08843-00

$2.87

14

POWER STRG. ACTUATOR ASSY

3B4-238B0-51-00

Unavailable

15

COVER, MOTOR

1HP-F38B6-00-00

Unavailable

16

BOLT

90109-06172-00

Unavailable

17

BOLT, FLANGE

95812-08030-00

$3.81

18

ARM, PITMAN

2BG-F3816-00-00

Unavailable

19

WASHER, PLATE

90201-16021-00

Unavailable

20

NUT U

95612-16100-00

Unavailable

21

PIN, COTTER

91490-20035-00

Unavailable

22

ROD, TIE

2BG-23831-00-00

Unavailable

23

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

24

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

25

NUT (682)

95380-10700-00

Unavailable

26

NUT

90170-10010-00

Unavailable

27

NUT, CASTLE

90171-10001-00

Unavailable

28

WASHER (25G)

90209-10229-00

Unavailable

29

PIN, COTTER

91490-20025-00

Unavailable
