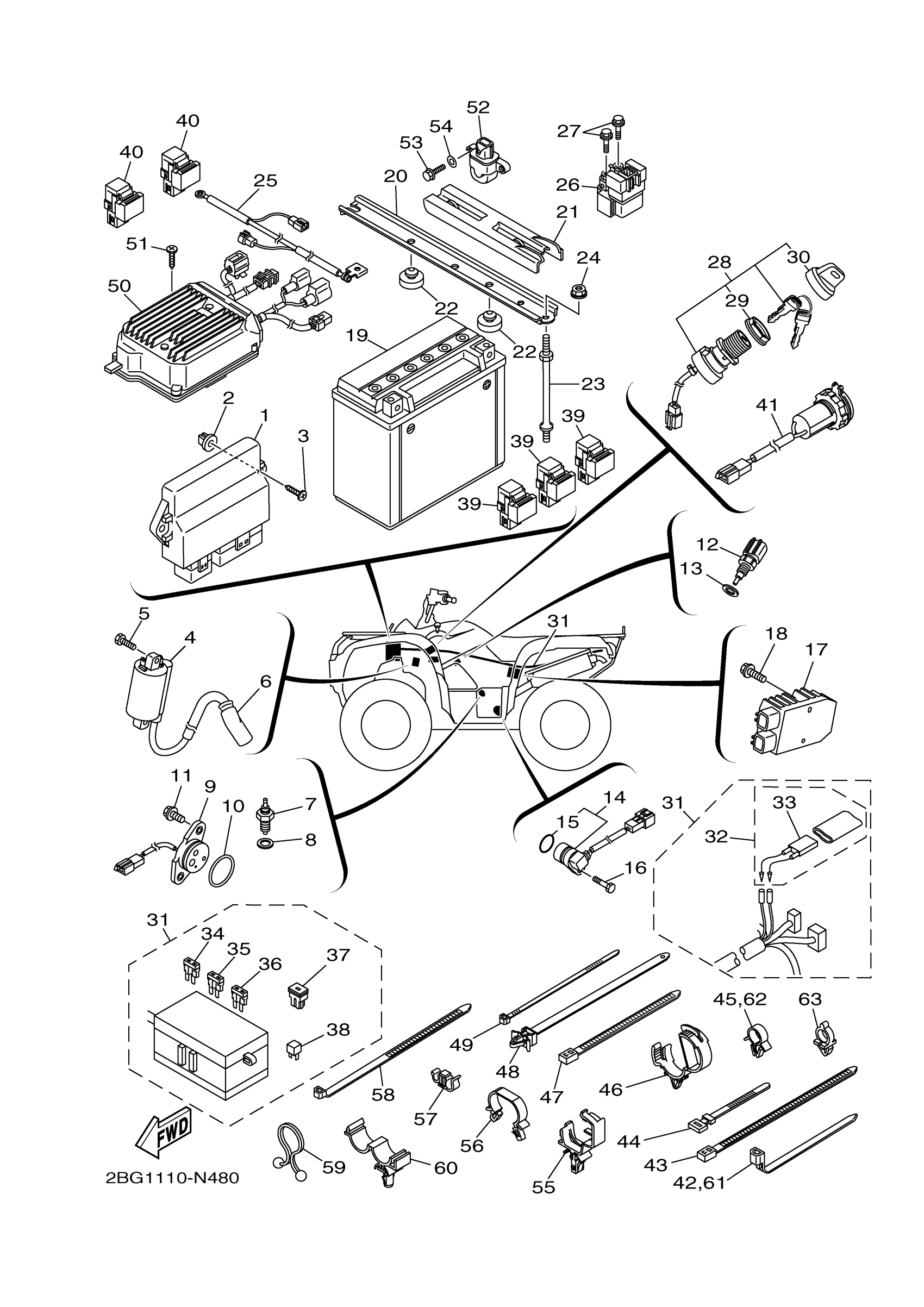

Yamaha YFM700PHEH (GRIZZLY 700 FI EPS HUNTING) 2BG8 2014 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

2BG-8591A-00-00

Unavailable

2

PLUG(4BP)

90338-08226-00

$2.17

3

SCREW, TAPPING

97702-60025-00

$7.49

4

IGNITION COIL ASSY

1D7-H2310-05-00

Unavailable

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

PLUG CAP ASSY

5VK-82370-00-00

$62.99

7

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

8

GASKET (1KH,1.0T)

90430-10148-00

$5.60

9

NEUTRAL SWITCH ASSY

3B4-82540-03-00

$75.99

10

O-RING (371)

93210-29196-00

$8.49

11

BOLT, WITH WASHER

90119-06137-00

$8.49

12

THERMOSENSOR ASSY

5YP-85790-00-00

$64.99

13

GASKET(2GH)

90430-12202-00

$9.49

14

SENSOR, SPEED

3B4-83755-01-00

$132.99

15

O-RING

4D9-81168-00-00

$6.99

16

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

17

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

18

BOLT, FLANGE

95817-06020-00

Unavailable

19

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

20

BRACKET, BATTERY

1HP-H2128-00-00

Unavailable

21

COVER, BATTERY

3B4-82129-00-00

Unavailable

22

PAD, SEAT

22W-24741-00-00

Unavailable

23

SCREW, FITTING

3B4-82133-10-00

Unavailable

24

NUT, FLANGE

95702-06500-00

Unavailable

25

WIRE, MINUS LEAD

34D-82116-01-00

Unavailable

26

STARTER RELAY ASSY (2768113-A)

3B4-81940-00-00

Unavailable

27

BOLT, FLANGE

95022-06008-00

Unavailable

28

MAIN SWITCH ASSY

28P-82510-02-00

Unavailable

29

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

30

CAP, KEY

3HN-82579-00-00

Unavailable

31

WIRE HARNESS ASSY

2BG-82590-01-00

Unavailable

32

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

33

THERMO SWITCH ASSY

4GB-82560-00-00

Unavailable

34

FUSE (5A)

67F-82151-20-00

Unavailable

35

FUSE

5JJ-82151-20-00

Unavailable

36

. FUSE (10A)

67F-82151-40-00

Unavailable

37

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

38

DIODE ASSY

3WP-81980-00-00

Unavailable

39

RELAY ASSY

5DM-81950-01-00

Unavailable

40

RELAY ASSY (8FP-01)

8FP-81950-01-00

Unavailable

41

TERMINAL COMP.

1HP-H254B-10-00

Unavailable

42

CLAMP(4FM)

90464-15195-00

Unavailable

43

CLAMP(JN6)

90464-40825-00

Unavailable

44

BAND, SWITCH CORD

437-83936-01-00

Unavailable

45

CLAMP(3XV)

90464-15157-00

Unavailable

46

CLAMP(4AP)

90464-20181-00

Unavailable

47

CLAMP(JN6)

90464-31827-00

Unavailable

48

CLAMP(2TV)

90464-10112-00

Unavailable

49

CLAMP

5Y9-12491-00-00

Unavailable

50

POWER STRG. CONT. UNIT ASSY

2BG-859A0-01-00

Unavailable

51

SCREW, BIND (J17)

98980-06020-00

Unavailable

52

LEAN ANGLE SENSOR

3B4-82576-00-00

Unavailable

53

BOLT(6A1)

97095-05016-00

Unavailable

54

WASHER, PLAIN (646)

92990-05600-00

Unavailable

55

CLAMP(4SV)

90464-20237-00

Unavailable

56

CLAMP(4NK)

90464-24230-00

Unavailable

57

CLAMP

90464-09013-00

Unavailable

58

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

59

CLAMP

90464-14800-00

Unavailable

60

CLAMP

90464-16012-00

Unavailable

61

CLAMP(4FM)

90464-15195-00

Unavailable

62

CLAMP(3XV)

90464-15157-00

Unavailable

63

CLAMP

90464-12830-00

Unavailable
