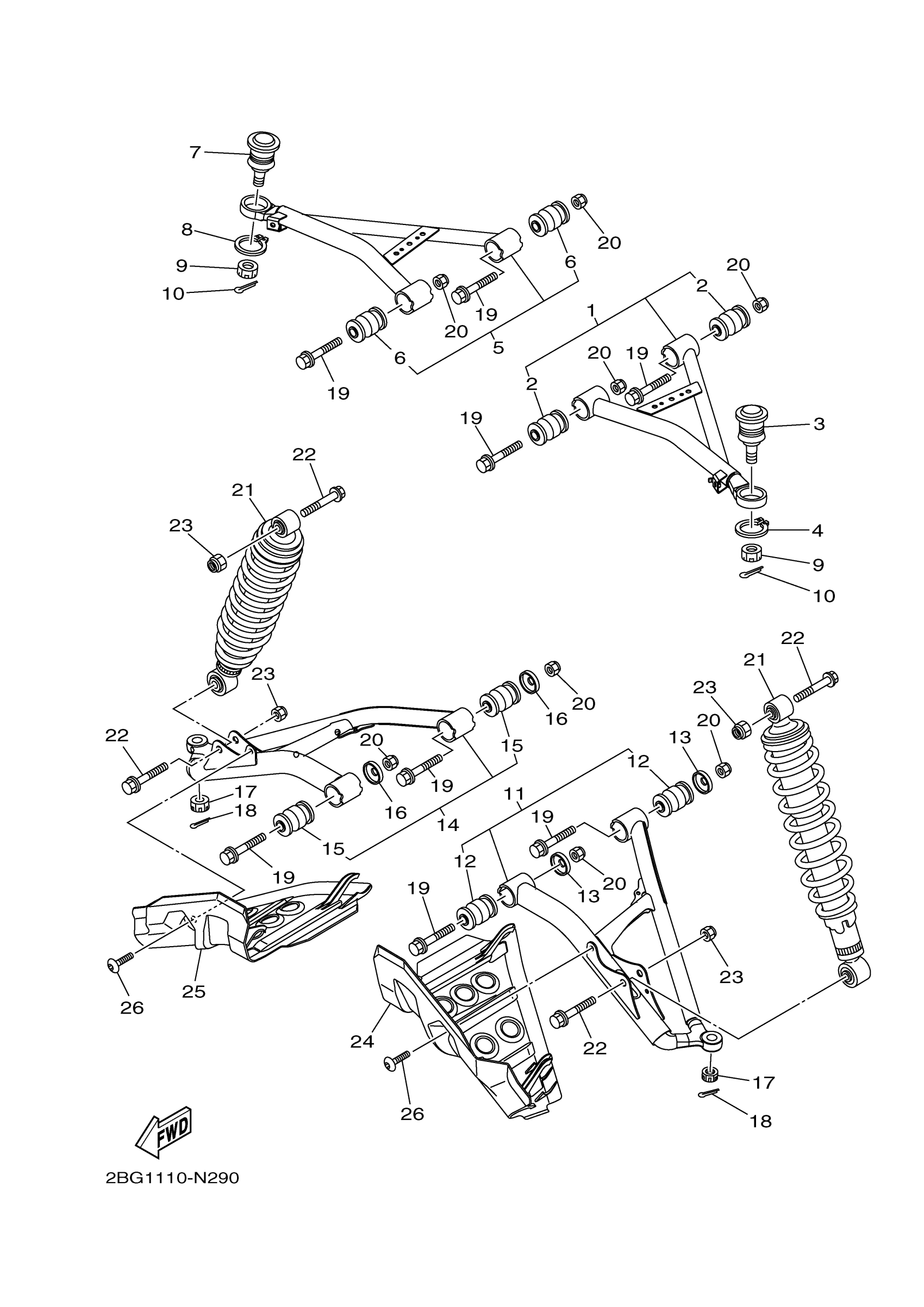

Yamaha YFM700DHFH (GRIZZLY 4WD HUNTER) 2ES7 2015 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

2BG-F3540-01-00

$66.99

2

BUSH

1HP-F3526-00-00

$22.99

3

BALL JOINT 2

3B4-23579-01-00

$83.99

4

CIRCLIP(4A6)

99009-30400-00

$8.49

5

FRONT UPPER ARM CO

2BG-F3550-01-00

$66.99

6

BUSH

1HP-F3526-00-00

$22.99

7

BALL JOINT 2

3B4-23579-01-00

$83.99

8

CIRCLIP(4A6)

99009-30400-00

$8.49

9

NUT, CASTLE

90171-12001-00

$7.49

10

PIN, COTTER

91490-25020-00

$3.19

11

FRONT LOWER ARM CO

2BG-F3570-12-00

$84.99

12

BUSH

1HP-F3526-00-00

$22.99

13

WASHER

5KM-22149-10-00

$7.99

14

FRONT LOWER ARM CO

2BG-F3580-12-00

$85.99

15

BUSH

1HP-F3526-00-00

$22.99

16

WASHER

5KM-22149-10-00

$7.99

17

NUT, CASTLE

90171-12001-00

$7.49

18

PIN, COTTER

91490-25020-00

$3.19

19

BOLT, FLANGE

90105-10222-00

Unavailable

20

NUT, SELF-LOCKING

90185-10012-00

Unavailable

21

SHOCK ABSORBER ASS

2BG-F3350-00-00

Unavailable

22

BOLT, FLANGE

90105-10131-00

Unavailable

23

NUT, SELF-LOCKING

90185-10012-00

Unavailable

24

COVER, UNDER 1

2BG-F3123-00-00

Unavailable

25

COVER, LOWER 2

2BG-F3133-00-00

Unavailable

26

BOLT

90109-06264-00

Unavailable
