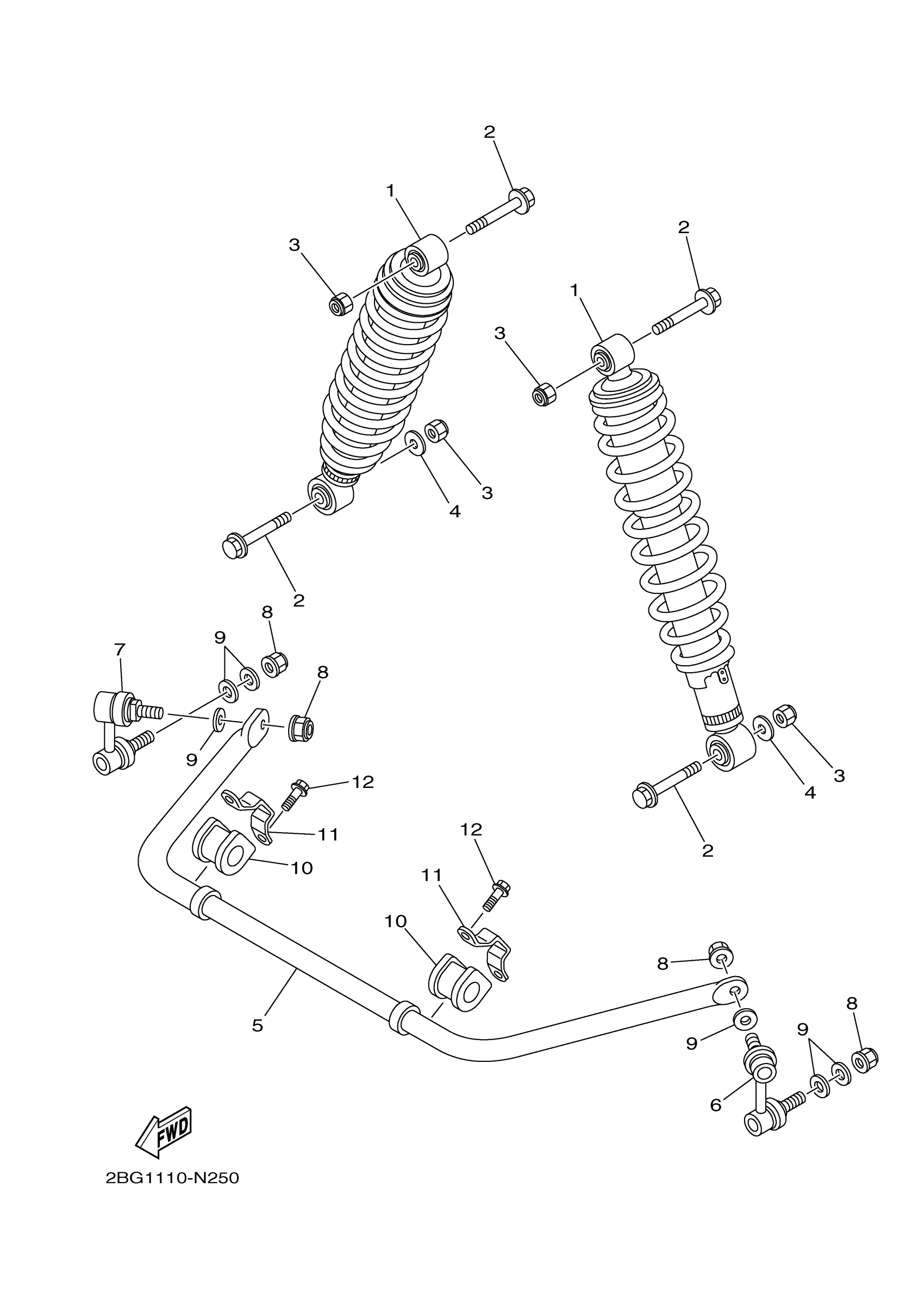

Yamaha YFM700DHEH (GRIZZLY 700 FI HUNT 4WD) 2ES4 2014 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

2BG-F2210-00-00

$196.07

2

BOLT, FLANGE

90105-10131-00

$4.93

3

NUT, SELF-LOCKING

90185-10012-00

$2.78

4

WASHER, PLATE

90201-10035-00

$3.42

5

BAR, STABILIZER

1HP-G7491-01-00

Unavailable

6

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

7

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

8

NUT, S/L FLANGE

95602-10200-00

$2.14

9

WASHER, PLATE

90201-10035-00

$3.42

10

BUSH, STABILIZER F

1HP-F386G-00-00

Unavailable

11

COVER, STABILIZER

1HP-F386H-00-00

$3.65

12

BOLT, FLANGE

95817-08014-00

$1.81
