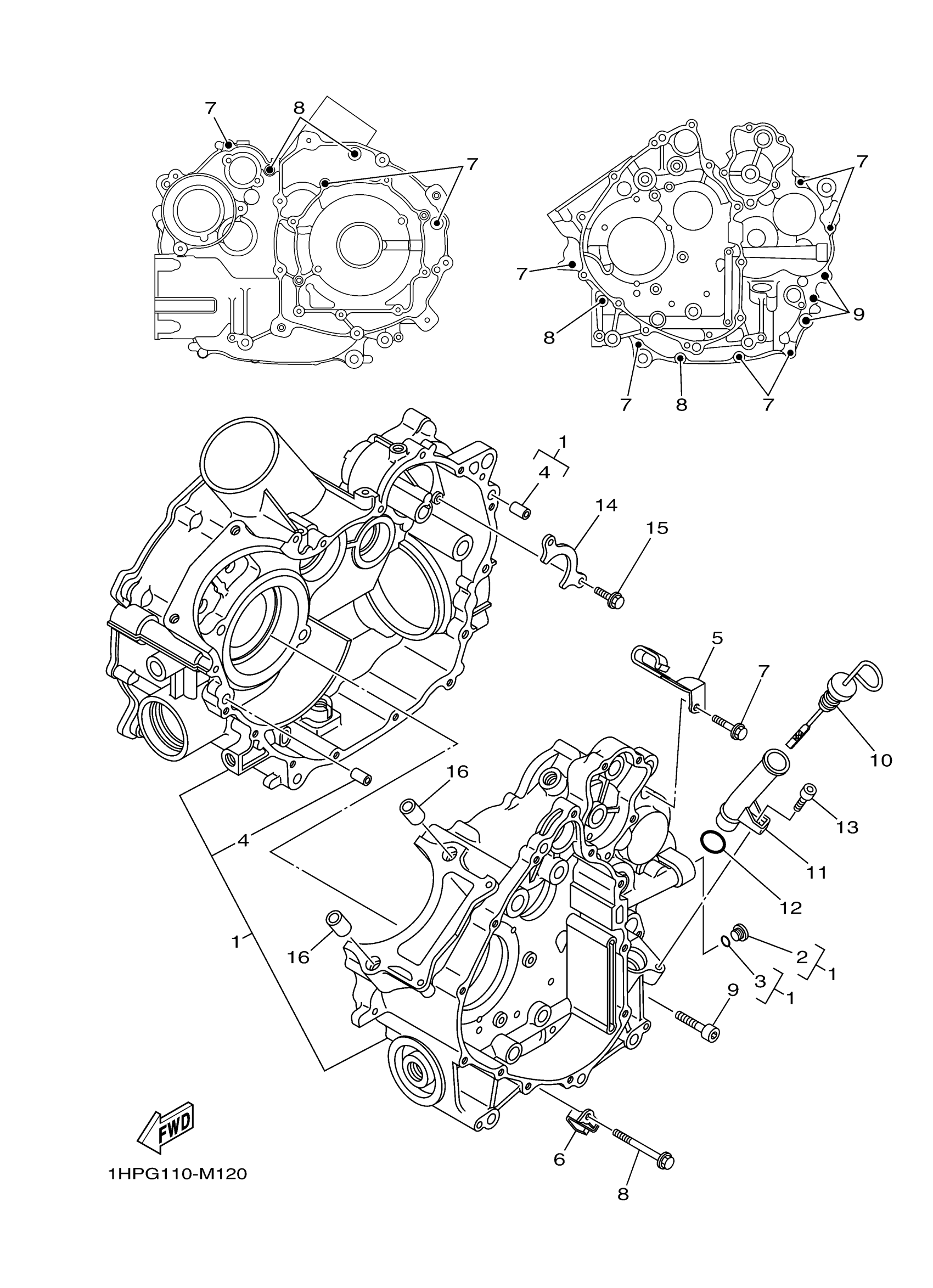

Yamaha YFM700DHEH (GRIZZLY 700 FI HUNT 4WD) 2ES4 2014 CRANKCASE Diagram

Description

Price

CRANKCASE ASSY

3B4-15100-27-00

$1,573.99

PLUG

36Y-15189-01-00

Unavailable

O-RING(1L9)

93210-16325-00

$7.49

PIN, DOWEL(2VG)

99530-10116-00

$4.25

CLAMP

90462-16003-00

Unavailable

CLAMP

90462-08049-00

$3.28

BOLT, FLANGE

95022-06030-00

$3.72

BOLT, FLANGE

95022-06060-00

$8.49

BOLT,SOCKET

91314-08040-00

$8.49

PLUG, OIL LEVEL

3B4-15362-01-00

$25.99

PIPE, OIL

3B4-15112-02-00

$56.99

O-RING (26H)

93210-21631-00

$7.49

BOLT,SOCKET

91317-06012-00

$8.49

PLATE, BEARING COVER

3B4-15388-00-00

$6.99

BOLT, FLANGE

95022-06020-00

$3.62

PIN, DOWEL

99530-14016-00

Unavailable
