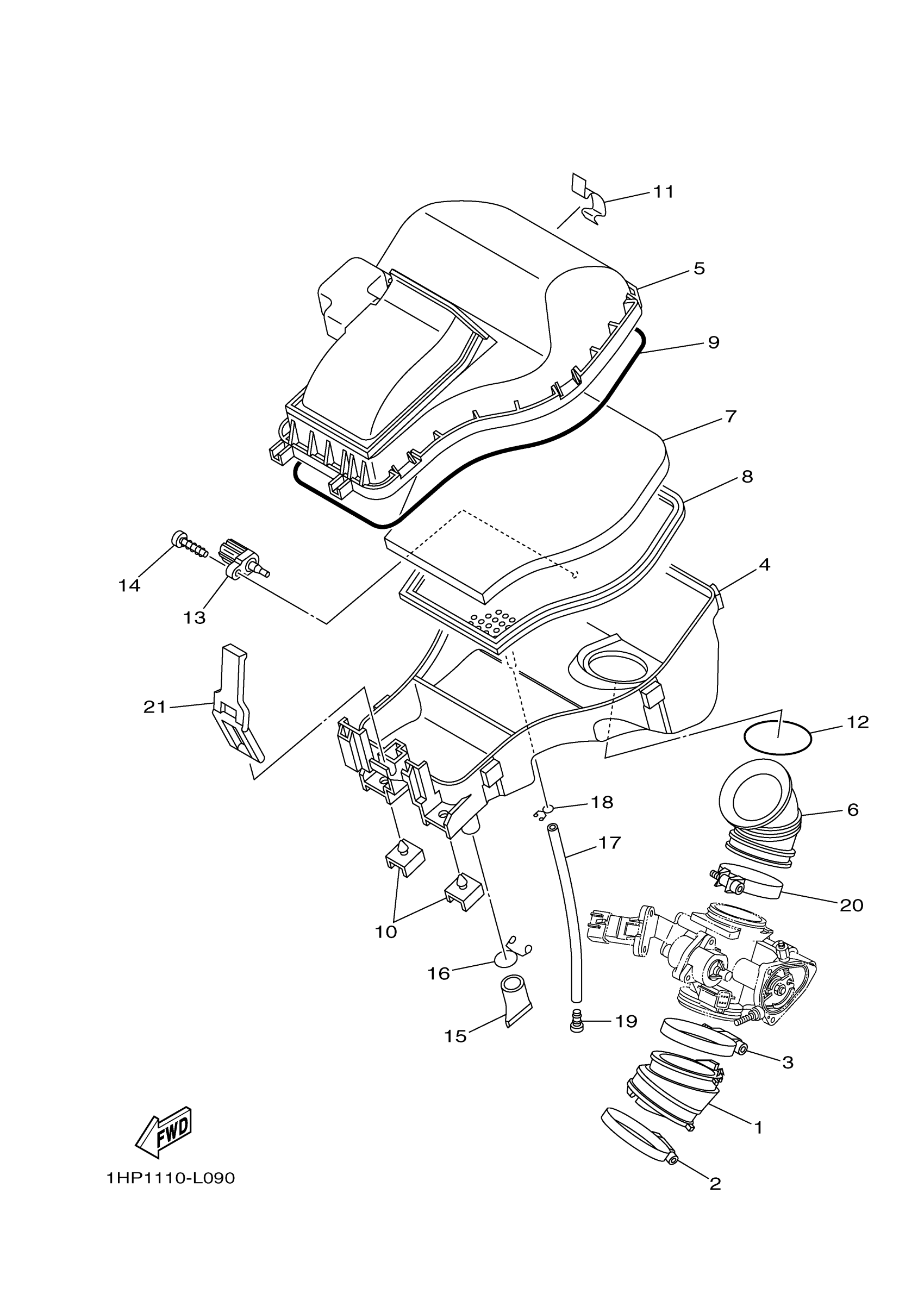

Yamaha YFM700DEL (GRIZZLY 700 FI 4WD) 2ES10 2014 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

3B4-13586-00-00

$61.80

2

HOSE CLAMP ASSY

90450-72004-00

$15.94

3

HOSE CLAMP ASSY

90450-72004-00

$15.94

4

CASE, AIR CLEANER 1

2BG-E4411-00-00

Unavailable

5

CAP ASSY, AIR CLEANER

3B4-14402-03-00

$59.24

6

JOINT, AIR CLEANER 1

3B4-14453-00-00

$31.27

7

ELEMENT, AIR CLEAN

1HP-E4451-01-00

Unavailable

8

PLATE, ELEMENT

1HP-E4472-00-00

Unavailable

9

SEAL

3B4-14457-00-00

$12.77

10

DAMPER

3B4-14409-00-00

$4.69

11

CLIP, CAP FITTING

3B4-14424-00-00

$6.29

12

SEAL

1HP-E4462-00-00

$1.97

13

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$47.81

14

SCREW, PANHEAD TAPPING

97702-50520-00

$0.26

15

SEAL

59V-14457-00-00

$5.25

16

CLIP

90467-220A1-00

Unavailable

17

TUBE, FLEXIBLE VINYL (L200)

91A20-07020-00

Unavailable

18

CLIP

90467-100A1-00

Unavailable

19

PLUG (1HX)

90338-08174-00

Unavailable

20

HOSE CLAMP ASSY

90450-59005-00

Unavailable

21

BAND

3B4-14455-00-00

Unavailable
