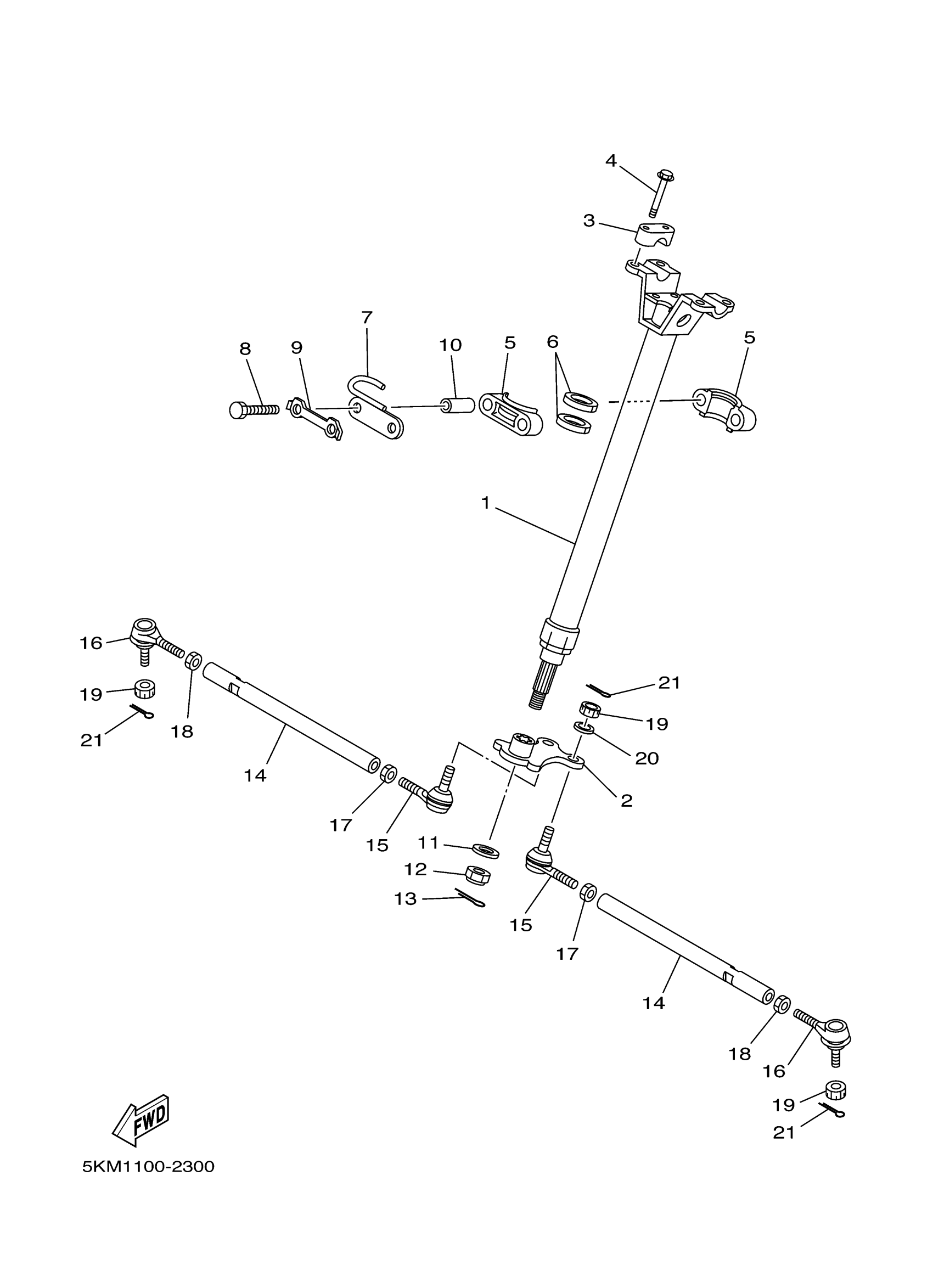

Yamaha YFM66FGXR (GRIZZLY 660) 23D11 2008 STEERING Diagram

COLUMN, STEERING 2

5KM-23813-10-00

Unavailable

ARM, PITMAN

1ND-F3816-00-00

$38.99

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

OIL SEAL(1UY)

93112-31011-00

$9.49

BRACKET, STEERING LOWER

5KM-23868-00-00

Unavailable

BOLT, HEXAGON

97017-08060-00

Unavailable

WASHER, LOCK 1

1UY-23894-01-00

$7.99

COLLAR(85G)

90387-106T4-00

$14.99

WASHER, PLATE

90201-14226-00

$5.60

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

CLIP(3YF)

90468-16191-00

$8.49

ROD, TIE

5KM-23831-00-00

$25.99

JOINT, UNIVERSAL 1

1UY-23841-01-00

$76.99

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

NUT (3WP1)

95317-10700-00

Unavailable

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

NUT, CASTLE

90171-10001-00

Unavailable

WASHER, PLATE

92990-10600-00

Unavailable

PIN, COTTER

91490-20025-00

Unavailable
