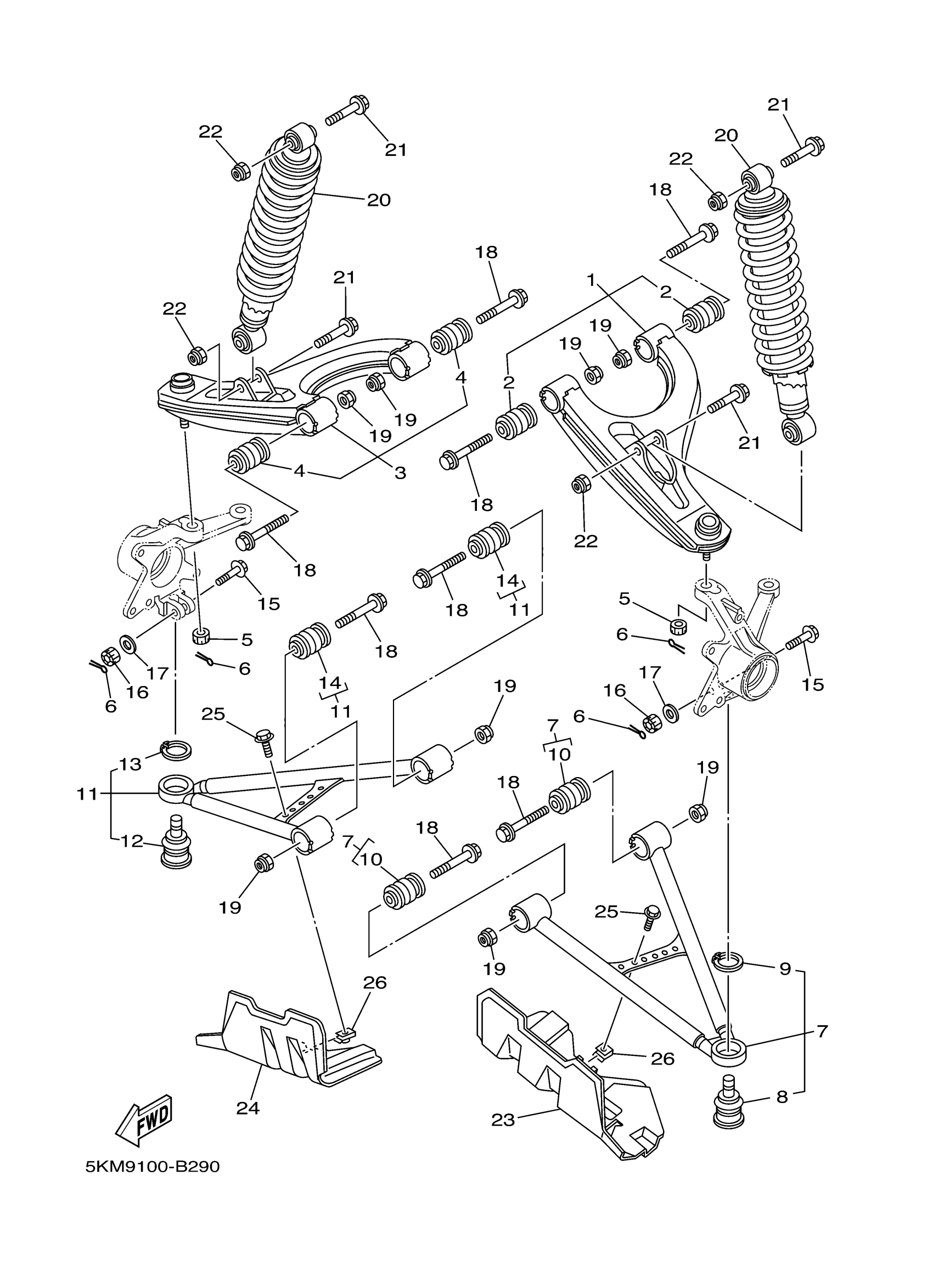

Yamaha YFM66FGW (GRIZZLY 660) 2C6N 2007 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT UPPER ARM COMP. (LEFT)
5KM-23540-10-00
Unavailable
3
FRONT UPPER ARM COMP. (RIGHT)
5KM-23550-10-00
Unavailable
16
NUT(6TD)
95337-10600-00
Unavailable
17
WASHER (7A9)
90201-100F7-00
Unavailable
18
BOLT, WASHER BASED (39E)
90105-10286-00
Unavailable
19
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
20
SHOCK ABSORBER ASSY
5KM-23350-20-00
Unavailable
21
BOLT, WASHER BASED(59V)
90105-10388-00
Unavailable
22
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
23
COVER, LOWER 1
5KM-23123-00-00
Unavailable
24
COVER, LOWER 2
5KM-23133-00-00
Unavailable
25
BOLT, FLANGE
95817-06012-00
Unavailable
26
NUT, SPRING(4ES)
90183-06069-00
Unavailable
