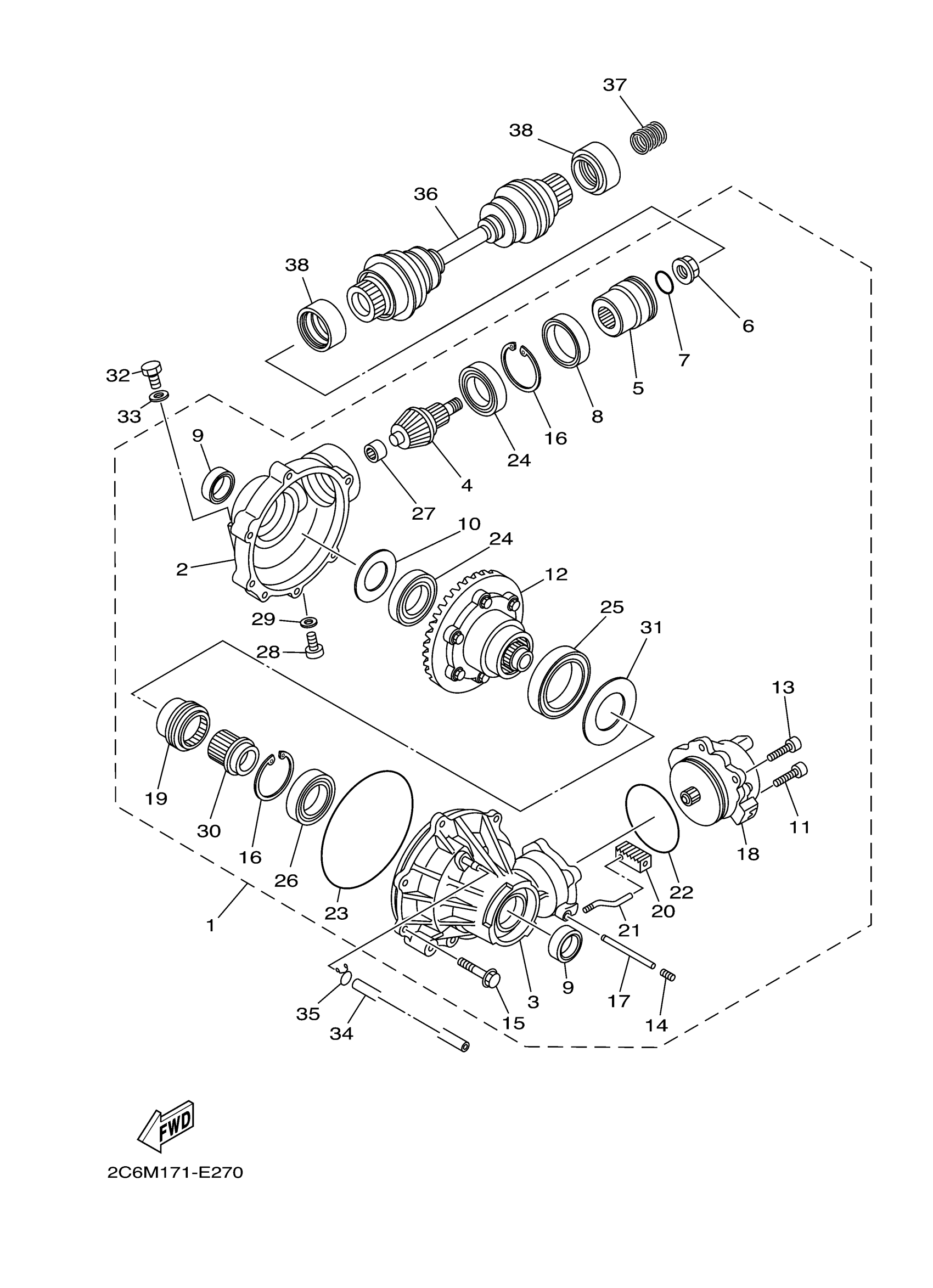

Yamaha YFM66FGW (GRIZZLY 660) 2C6N 2007 FRONT DIFFERENTIAL Diagram
#
1
FRONT AXLE GEAR CASE COMP.
5KM-46160-15-00
Unavailable
3
HOUSING, BEARING 2
5KM-46162-00-00
Unavailable
4
PINION, DRIVE 2
5KM-46141-13-00
Unavailable
5
CUPLING
5KM-67839-01-00
Unavailable
10
SHIM, THRUST
4WV-46119-51-00
Unavailable
11
BOLT 1
5KM-46155-00-00
Unavailable
12
LIMITED SLIP DIFF. ASSY
5KM-46470-13-00
Unavailable
13
BOLT, SOCKET
91317-08020-00
Unavailable
14
BOLT, SET
90113-08004-00
Unavailable
15
BOLT 3
4WV-46159-00-00
Unavailable
16
RING,HOLE SNAP 2
5KM-46143-00-00
Unavailable
17
SHAFT
5KM-42752-00-00
Unavailable
18
SERVO MOTOR COMP
5KM-4616A-02-00
Unavailable
19
CLUTCH,DRIVEN
5KM-46441-00-00
Unavailable
20
. SHAFT 2
5KM-18319-00-00
Unavailable
21
FORK, SHIFT 4
5KM-18514-00-00
Unavailable
22
O-RING
93210-82001-00
Unavailable
23
O-RING
93211-40040-00
Unavailable
24
BEARING
93306-00709-00
Unavailable
25
BRG,R-B 6912 85MM 189G NK
93306-91201-00
Unavailable
26
BEARING
93316-00702-00
Unavailable
27
BEARING 4
4WV-46167-00-00
Unavailable
28
PLUG, STRIGHT SCREW(5GH1)
90340-10001-00
Unavailable
29
GASKET
90430-10003-00
Unavailable
30
ADAPTER
5KM-46451-00-00
Unavailable
31
SHIM, THRUST
5KM-46119-01-00
Unavailable
31
SHIM, THRUST
5KM-46119-11-00
Unavailable
31
SHIM, THRUST
5KM-46119-21-00
Unavailable
31
SHIM, THRUST
5KM-46119-31-00
Unavailable
31
SHIM, THRUST
5KM-46119-41-00
Unavailable
31
SHIM, THRUST
5KM-46119-51-00
Unavailable
31
SHIM, THRUST
5KM-46119-61-00
Unavailable
32
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
33
GASKET
214-11198-01-00
Unavailable
34
HOSE (L1050)
90445-072G8-00
Unavailable
35
CLIP (1J7)
90467-07029-00
Unavailable
36
SHAFT, DRIVE 2
5KM-46173-10-00
Unavailable
37
SPRING, COMPRESSION
90501-200A0-00
Unavailable
38
SEAL 1
5KM-22358-02-00
Unavailable
