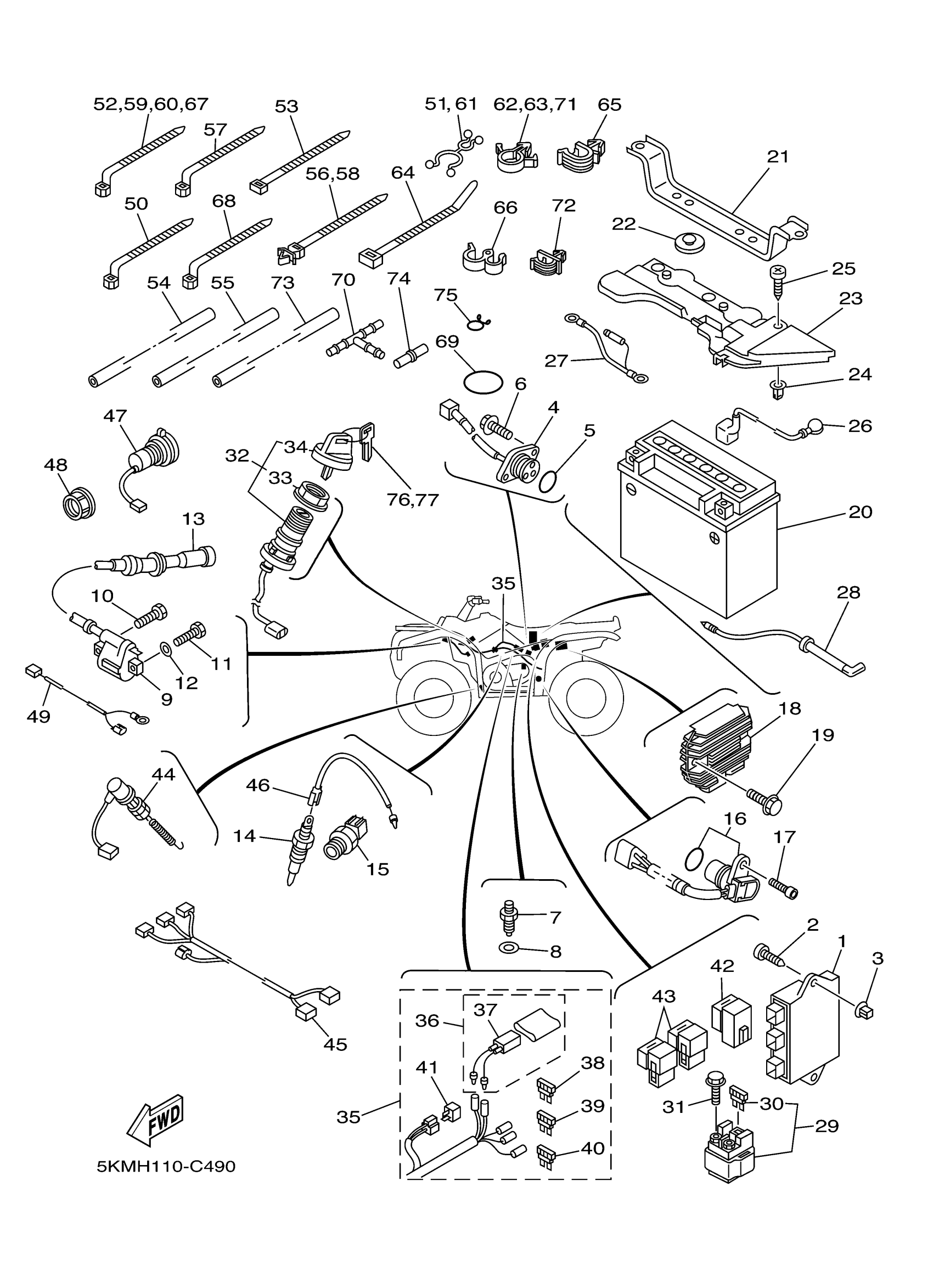

Yamaha YFM66FGHX (GRIZZLY 660 HUNTER) 23D5 2008 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5KM-85540-10-00

Unavailable

2

SCREW, TRUSS TAP.

97707-60025-00

$1.70

3

PLUG(4BP)

90338-08226-00

$2.17

4

NEUTRAL SWITCH ASSY

5KM-82540-03-00

$96.99

5

O-RING (371)

93210-29196-00

$8.49

6

BOLT, WITH WASHER

90119-06242-00

$7.49

7

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

8

GASKET (1KH,1.0T)

90430-10148-00

$5.60

9

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

10

BOLT (21V)

90109-06723-00

$8.49

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER(6TA)

92907-06600-00

$2.72

13

PLUG CAP ASSY

3YF-82370-00-00

$77.99

14

THERMO SWITCH ASSY

5KM-82560-00-00

Unavailable

15

THERMO SWITCH ASSY

5GM-82560-01-00

$47.99

16

SENSOR, SPEED

5UG-83755-03-00

Unavailable

17

BOLT,SOCKET

91317-06016-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

5BN-81960-00-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

21

BRACKET, BATTERY

5KM-82128-00-00

Unavailable

22

PAD, BATTERY

371-82121-00-00

Unavailable

23

COVER, BATTERY

5KM-82129-01-00

Unavailable

24

PLUG(4BP)

90338-08226-00

$2.17

25

SCREW, TRUSS TAP.

97707-60016-00

Unavailable

26

WIRE, PLUS LEAD

5KM-82115-01-00

Unavailable

27

WIRE, MINUS LEAD

5KM-82116-00-00

Unavailable

28

WIRE, LEAD

5KM-82541-00-00

Unavailable

29

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

Unavailable

30

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

31

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

32

MAIN SWITCH ASSY

5KM-82510-02-00

Unavailable

33

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

34

CAP, KEY

3HN-82579-00-00

Unavailable

35

WIRE HARNESS ASSY

5KM-82590-20-00

Unavailable

36

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

37

THERMO SWITCH ASSY

5GT-82560-00-00

Unavailable

38

FUSE (15A)

67F-82151-50-00

Unavailable

39

. FUSE (10A)

67F-82151-40-00

Unavailable

40

. FUSE (3A)

67F-82151-30-00

Unavailable

41

DIODE ASSY

3WP-81980-00-00

Unavailable

42

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

43

RELAY ASSY

5DM-81950-01-00

Unavailable

44

STOP SWITCH ASSY

5KM-82530-00-00

Unavailable

45

WIRE, SUB LEAD

5KM-82309-01-00

Unavailable

46

WIRE, LEAD

5KM-82507-00-00

Unavailable

47

TERMINAL COMP.

5GH-8254B-00-00

Unavailable

48

NUT

5GH-82114-00-00

Unavailable

49

WIRE, SUB LEAD

5KM-82509-10-00

Unavailable

50

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

51

CLAMP (5G3)

90464-35047-00

Unavailable

52

CLAMP(4FM)

90464-15195-00

Unavailable

53

BAND, SWITCH CORD

437-83936-01-00

Unavailable

54

HOSE (L1050)

90445-072G8-00

Unavailable

55

HOSE (L200)

90445-07176-00

Unavailable

56

CLAMP(2TV)

90464-10112-00

Unavailable

57

CLAMP, HOSE(3KJ)

90460-15126-00

Unavailable

58

CLAMP(2TV)

90464-10112-00

Unavailable

59

CLAMP(4FM)

90464-15195-00

Unavailable

60

CLAMP(4FM)

90464-15195-00

Unavailable

61

CLAMP (5G3)

90464-35047-00

Unavailable

62

CLAMP(3XV)

90464-15157-00

Unavailable

63

CLAMP(3XV)

90464-15157-00

Unavailable

64

CLAMP

90465-10098-00

Unavailable

65

CLAMP

90464-14M55-00

Unavailable

66

CLIP(33M)

90468-15139-00

Unavailable

67

CLAMP(4FM)

90464-15195-00

Unavailable

68

CLAMP(4FM)

90464-15195-00

Unavailable

69

O-RING

93210-975A9-00

Unavailable

70

WAY 3(33M)

90413-05014-00

Unavailable

71

CLAMP(3XV)

90464-15157-00

Unavailable

72

CLAMP

90464-07001-00

Unavailable

73

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

74

JOINT, HOSE

5KM-82109-00-00

Unavailable

75

CLIP (16G)

90467-08021-00

Unavailable

76

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

77

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
