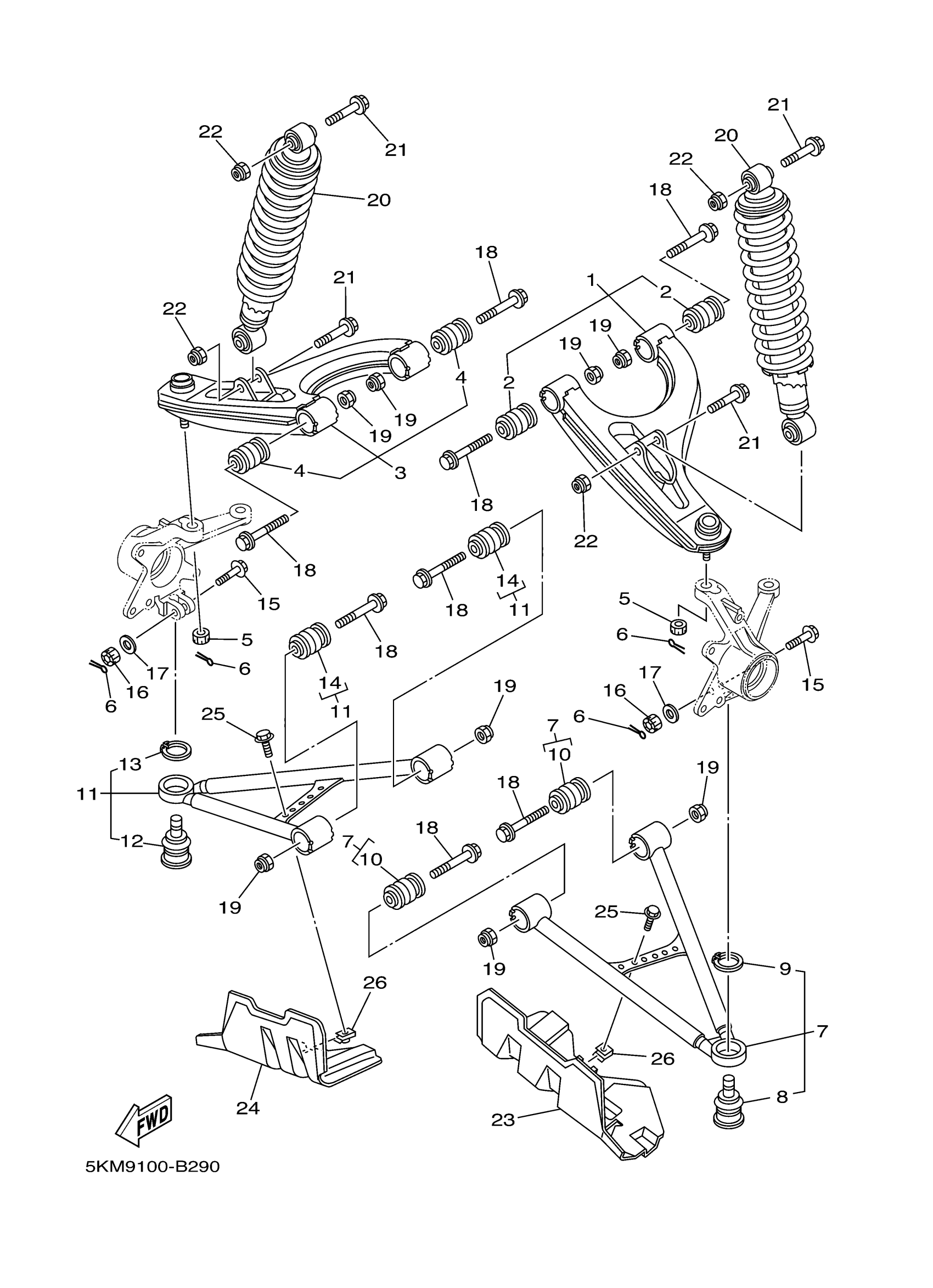

Yamaha YFM66FAV (GRIZZLY 660 HUNTER_HARDWOODS) 2C69 2006 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM COMP. (LEFT)

5KM-23540-10-00

Unavailable

2

BUSH

1HP-F3526-00-00

$20.42

3

FRONT UPPER ARM COMP. (RIGHT)

5KM-23550-10-00

Unavailable

4

BUSH

1HP-F3526-00-00

$20.42

5

NUT, CASTLE

90171-10001-00

$2.66

6

PIN, COTTER

91490-20025-00

$1.23

7

FRONT LOWER ARM COMP. (LEFT)

5KM-23570-10-00

$274.59

8

BALL JOINT 2

5KM-23579-00-00

$79.28

9

CIRCLIP(4A6)

99009-30400-00

$6.11

10

BUSH

1HP-F3526-00-00

$20.42

11

FRONT LOWER ARM COMP. (RIGHT)

5KM-23580-10-00

$274.59

12

BALL JOINT 2

5KM-23579-00-00

$79.28

13

CIRCLIP(4A6)

99009-30400-00

$6.11

14

BUSH

1HP-F3526-00-00

$20.42

15

BOLT, FLANGE (2XJ)

90105-10549-00

$5.90

16

NUT(6TD)

95337-10600-00

Unavailable

17

WASHER (7A9)

90201-100F7-00

Unavailable

18

BOLT, WASHER BASED (39E)

90105-10286-00

Unavailable

19

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

20

SHOCK ABSORBER ASSY

5KM-23350-20-00

Unavailable

21

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

22

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

23

COVER, LOWER 1

5KM-23123-00-00

Unavailable

24

COVER, LOWER 2

5KM-23133-00-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

NUT, SPRING(4ES)

90183-06069-00

$5.69
