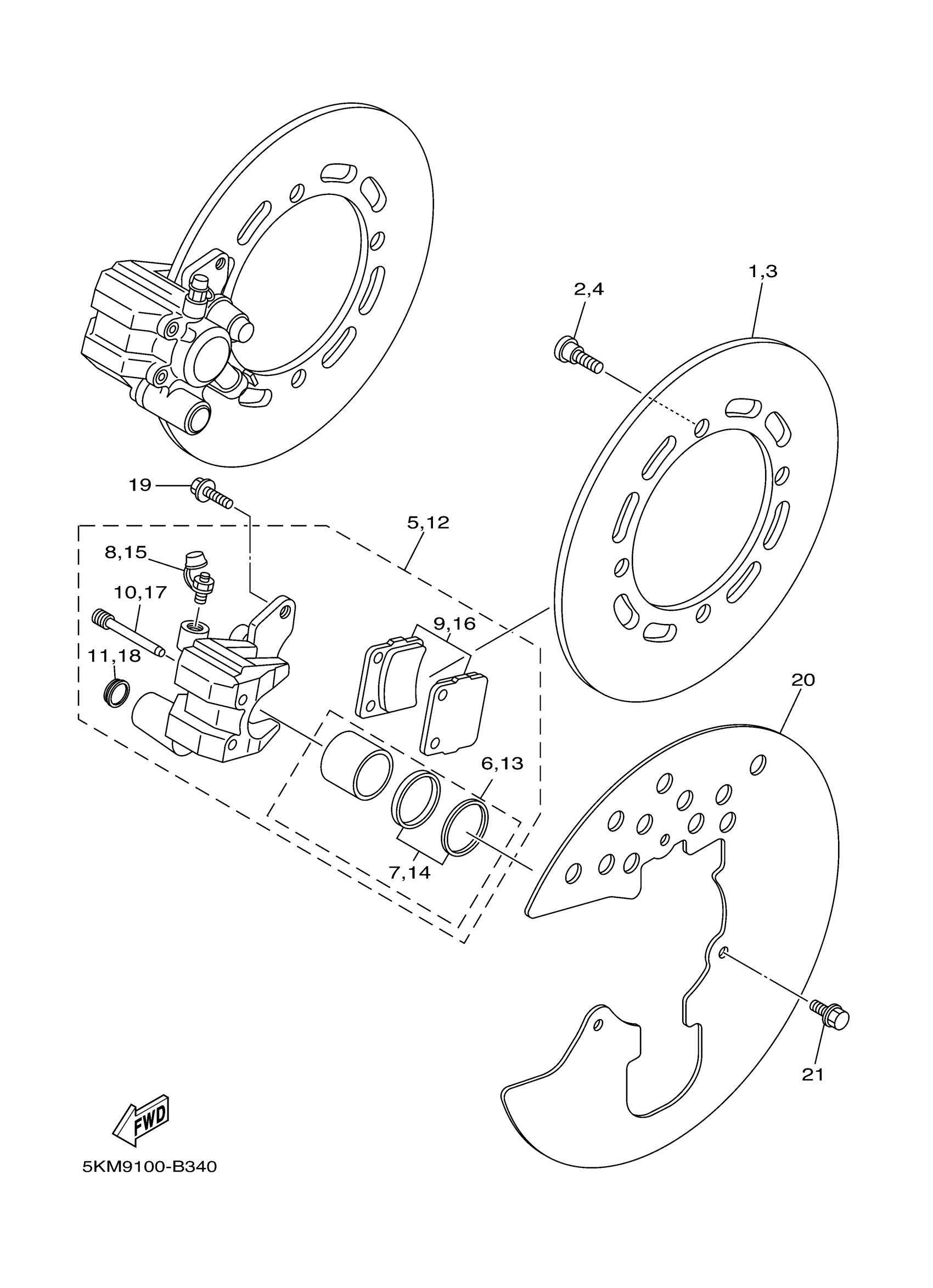

Yamaha YFM66FAV (GRIZZLY 660 HUNTER_HARDWOODS) 2C69 2006 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5KM-2582T-10-00

$234.62

2

BOLT

90109-08087-00

$2.47

3

DISC, BRAKE (LEFT)

5KM-2582T-10-00

$234.62

4

BOLT

90109-08087-00

$2.47

5

CALIPER ASSY (LEFT)

4WV-2580T-10-00

$296.24

6

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

7

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

8

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

9

BRAKE PAD KIT

4WV-W0045-00-00

$36.30

10

PIN, PAD

3GD-25933-00-00

$21.38

11

DUST PLUG

3GD-25916-00-00

$6.55

12

CALIPER ASSY (RIGHT)

4WV-2580U-10-00

Unavailable

13

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

14

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

15

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

16

BRAKE PAD KIT

4WV-W0045-00-00

$36.30

17

PIN, PAD

3GD-25933-00-00

$21.38

18

DUST PLUG

3GD-25916-00-00

$6.55

19

BOLT, FLANGE

95817-08014-00

Unavailable

20

RING, WHEEL 1 (LEFT)

5KM-2514A-10-00

Unavailable

21

SCREW, ROUND HEAD(55K)

90150-06021-00

Unavailable
