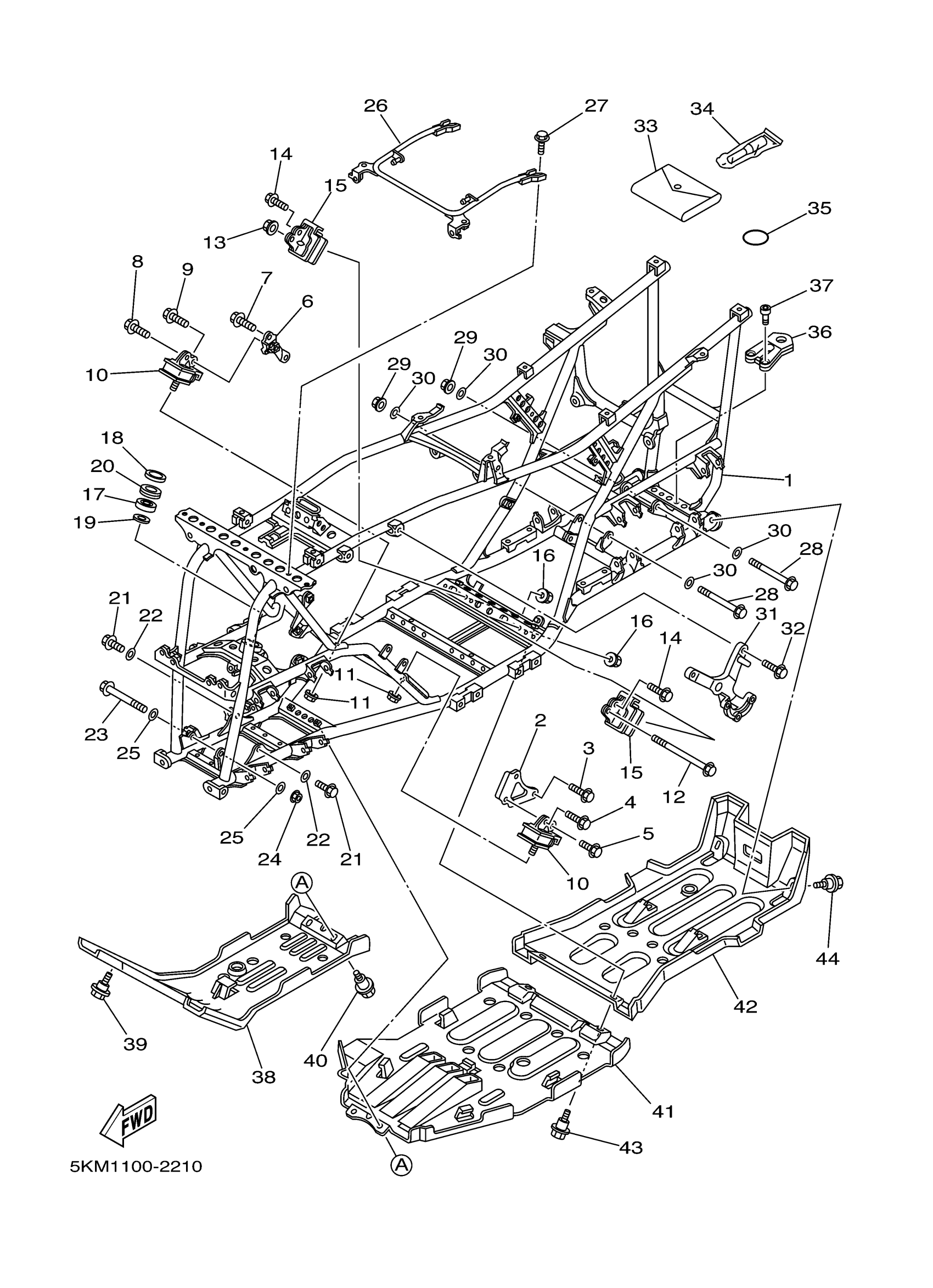

Yamaha YFM66FAV (GRIZZLY 660 HUNTER_HARDWOODS) 2C69 2006 FRAME Diagram
#
1
FRAME COMP.
5KM-21110-10-00
Unavailable
6
STAY, ENGINE 3
5KM-21316-00-00
Unavailable
10
DAMPER, RUBBER 1
5KM-21485-10-00
Unavailable
15
DAMPER 2
5KM-21486-10-00
Unavailable
17
BEARING
93306-20348-00
Unavailable
18
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
19
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
20
HOLDER, BEARING
2GU-23872-00-00
Unavailable
21
BOLT, FLANGE
95817-10030-00
Unavailable
22
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
23
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
25
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
26
STAY, FENDER 1
5KM-21513-00-00
Unavailable
27
BOLT, FLANGE
95817-06012-00
Unavailable
28
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
30
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
31
ARM
5KM-21585-00-00
Unavailable
33
TOOL KIT
4WV-28100-00-00
Unavailable
34
GAUGE, AIR
1NV-2811A-01-00
Unavailable
35
O-RING (102)
93210-41041-00
Unavailable
36
HOOK
5KM-28488-00-00
Unavailable
37
BOLT, SOCKET
91317-10025-00
Unavailable
38
GUARD, ENGINE 1
5KM-2147A-00-00
Unavailable
39
BOLT(3KJ)
90109-063F1-00
Unavailable
40
BOLT(3KJ)
90109-063F5-00
Unavailable
41
GUARD, ENGINE 2
5KM-2147E-00-00
Unavailable
42
GUARD, ENGINE 3
5KM-2147F-00-00
Unavailable
43
BOLT(3KJ)
90109-063F5-00
Unavailable
44
BOLT(3KJ)
90109-063F1-00
Unavailable
