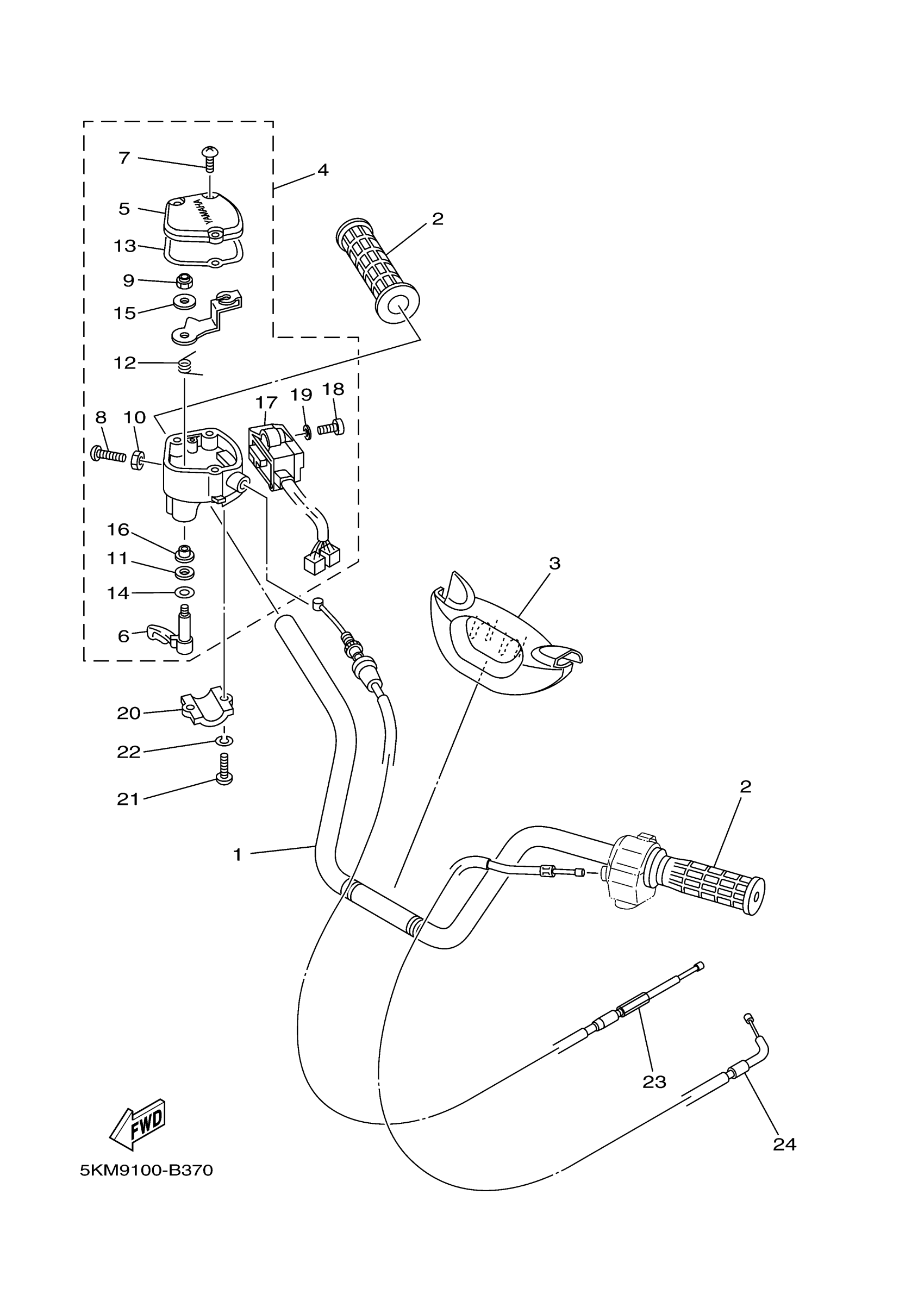

Yamaha YFM66FASEV (GRIZZLY 660 SPECIAL EDITION) 2C6D 2006 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5KM-26111-10-00

$70.62

2

GRIP (LEFT)

5LP-26241-00-00

$20.31

3

PROTECTOR, HANDLEBAR

5KM-26124-00-00

Unavailable

4

THROTTLE LEVER ASSY

5KM-26250-04-00

Unavailable

5

CAP, GEAR

4KB-2628F-10-00

$23.09

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW(3HE)

90149-04278-00

$0.73

8

SCREW, PAN HEAD

98517-05020-00

$1.26

9

NUT, U

95617-05100-00

$6.22

10

NUT, HEXAGON SMALL

95317-05700-00

$5.76

11

OIL SEAL (9X15X4-256)

93104-09025-00

$5.08

12

SPRING

1NV-26304-00-00

$11.00

13

GASKET

4KB-2628G-00-00

$9.93

14

WASHER

1NV-26129-00-00

$6.33

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

COLLAR

1NV-2625K-00-00

Unavailable

17

SWITCH, HANDLE 1

5KM-83976-03-00

Unavailable

18

SCREW, PAN HEAD

98517-04016-00

Unavailable

19

WASHER(JF2)

92907-04600-00

Unavailable

20

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

21

SCREW, PAN HEAD

98517-05020-00

$1.26

22

WASHER(3SX)

92907-05100-00

Unavailable

23

CABLE, THROTTLE 1

5KM-26311-20-00

Unavailable

24

CABLE, STARTER 1

5KM-26331-10-00

Unavailable
