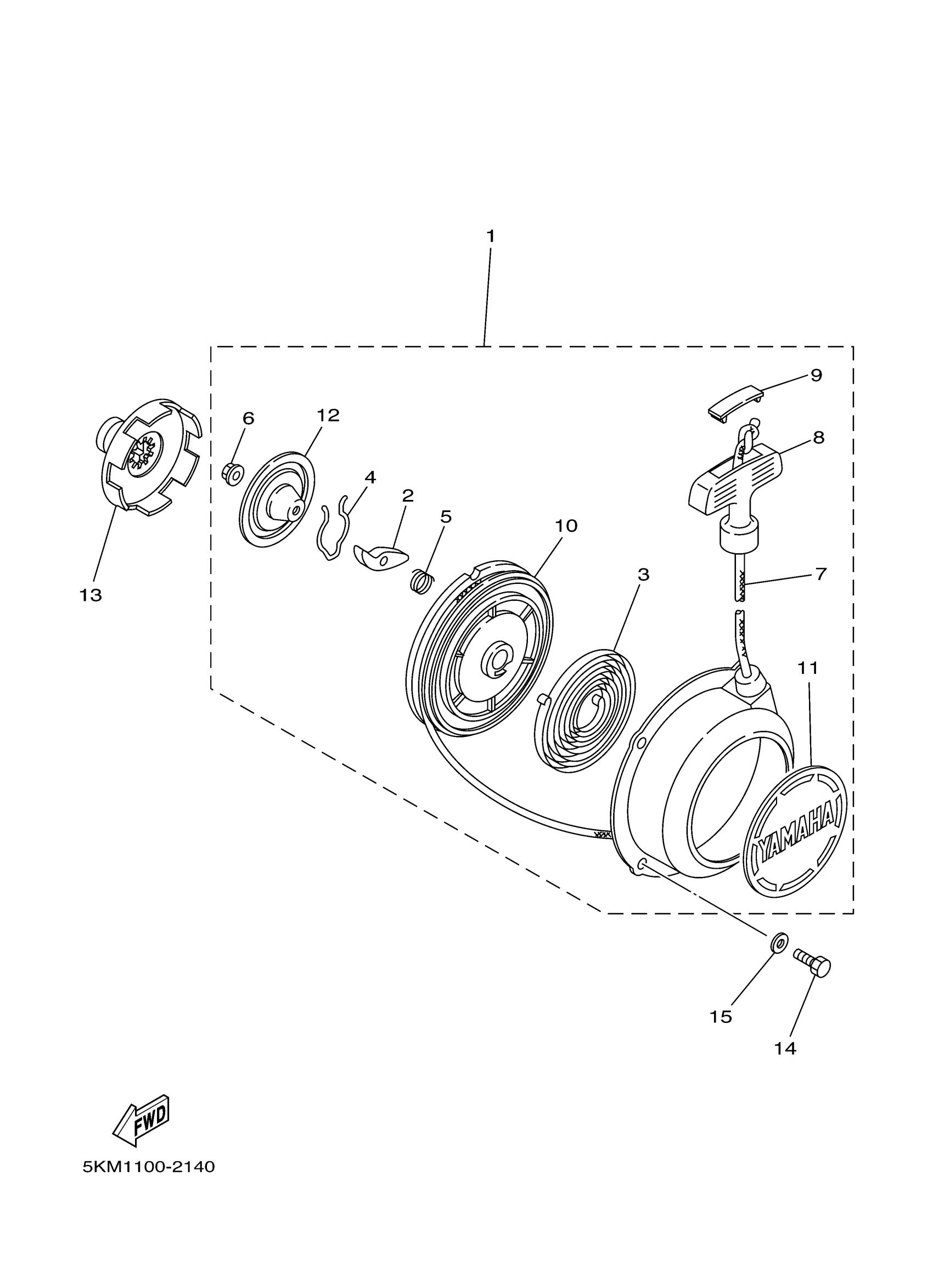

Yamaha YFM66FASEV (GRIZZLY 660 SPECIAL EDITION) 2C6D 2006 STARTER Diagram

#

Description
Price

1

STARTER ASSY

5GH-15710-21-00

Unavailable

2

PAWL, DRIVE

21V-15741-00-00

$17.98

3

SPRING, STARTER

21V-15713-00-00

$18.80

4

SPRING, FRICTION

21V-15715-01-00

$10.20

5

SPRING

21V-15767-00-00

$5.90

6

NUT, FLANGE

95702-06500-00

$1.95

7

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

8

HANDLE, STARTER

3X3-15755-00-00

$23.09

9

CAP, KNOB

21V-15779-00-00

$6.03

10

DRUM, SHEAVE

24W-15714-00-00

$46.67

11

EMBLEM

5GH-15443-01-00

Unavailable

12

PLATE, DRIVE

21V-15716-01-00

Unavailable

13

PULLEY, STARTER

5KM-15723-00-00

$85.58

14

BOLT(8CP)

97017-06014-00

$4.91

15

WASHER(6TA)

92907-06600-00

$0.73
