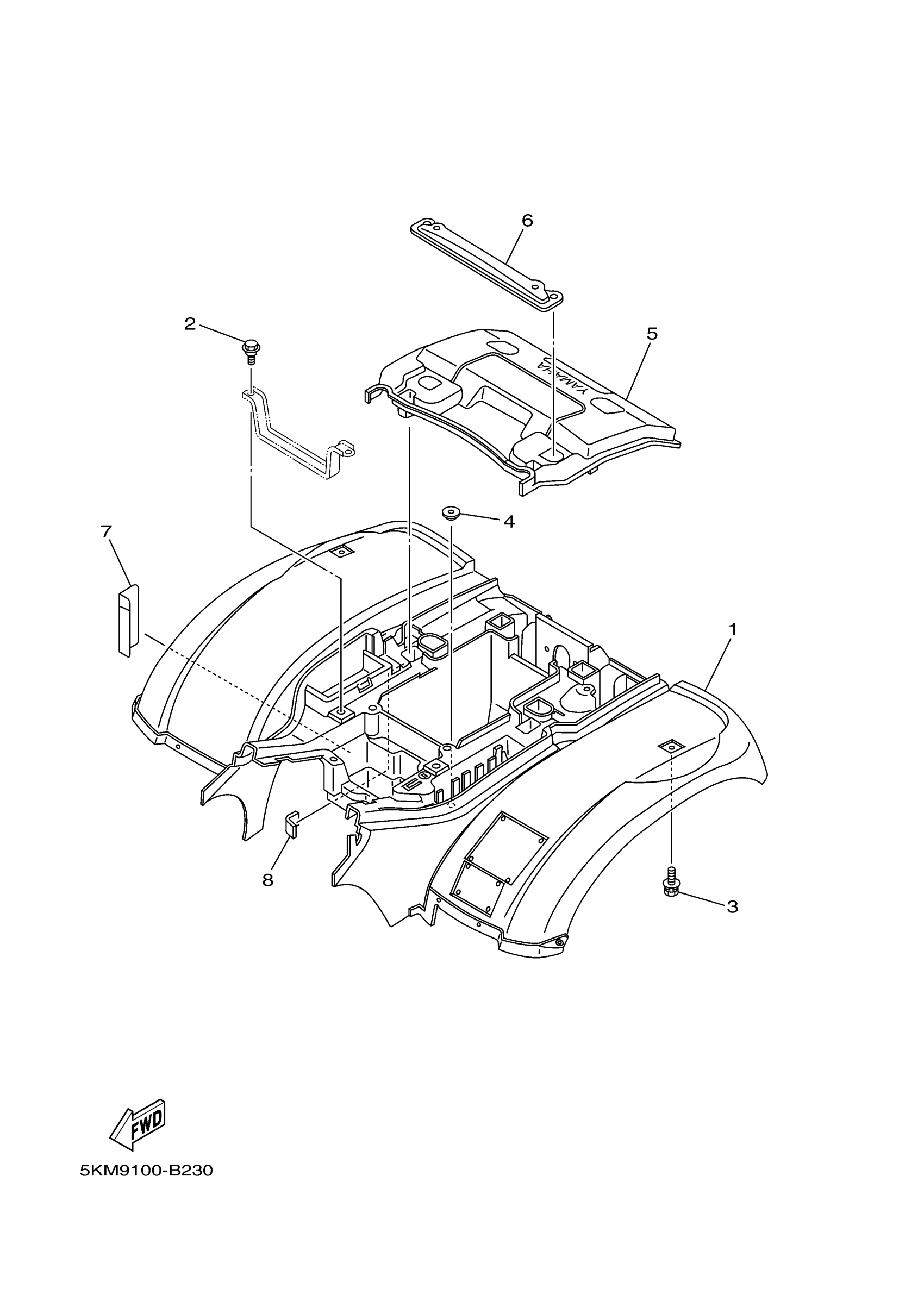

Yamaha YFM66FASEV (GRIZZLY 660 SPECIAL EDITION) 2C6D 2006 REAR FENDER Diagram

#

Description

Price

1

REAR FENDER COMP.

5KM-W2161-61-00

Unavailable

2

BOLT

90109-06183-00

$5.96

3

BOLT, WITH WASHER

90119-06152-00

$2.56

4

PLUG (10V)

90338-09130-00

$5.53

5

LID

5KM-2160F-40-00

$47.94

6

STAY, FENDER 1

5KM-21613-00-00

Unavailable

7

COVER, REAR FENDER 2

5GH-2163E-00-00

Unavailable

8

PROTECTOR

5KM-21652-10-00

Unavailable
