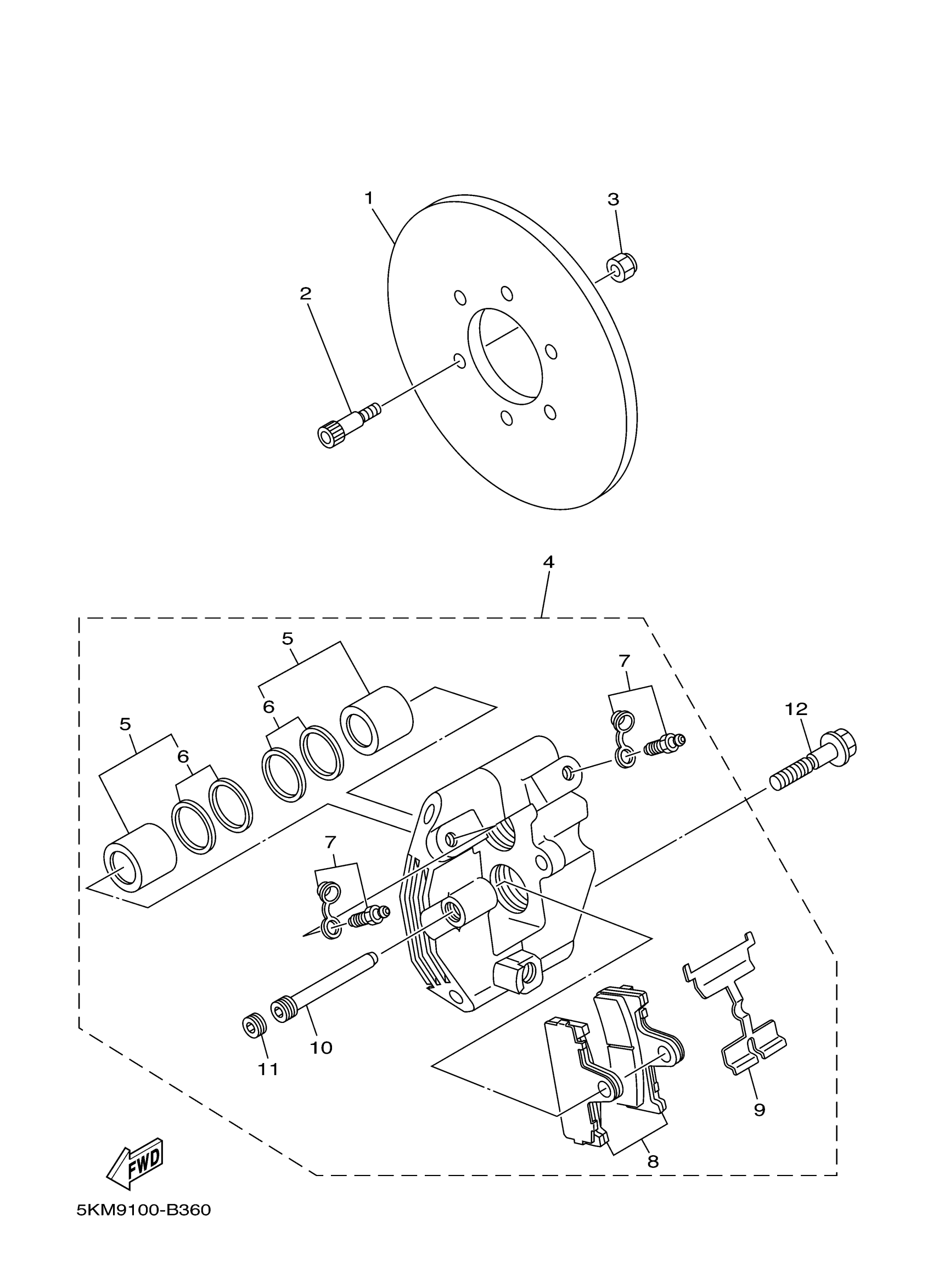

Yamaha YFM66FASEV (GRIZZLY 660 SPECIAL EDITION) 2C6D 2006 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 1

5KM-2582V-00-00

$121.50

2

BOLT

90109-06038-00

$4.51

3

NUT, SELF-LOCKING

95617-06100-00

$2.17

4

CALIPER ASSY, REAR 1

5KM-2580V-01-00

Unavailable

5

PISTON ASSY, CALIPER

5KM-W0057-00-00

$102.53

6

CALIPER SEAL KIT

5KM-W0047-00-00

$26.80

7

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

8

BRAKE PAD KIT 2

5KM-W0046-01-00

$41.16

9

SUPPORT, PAD

5KM-25919-00-00

$20.79

10

PIN, PAD

8CR-25924-00-00

$10.52

11

BOLT

8CR-25926-00-00

Unavailable

12

BOLT, WASHER BASED(1AR)

90105-10634-00

$6.15
