Description

Price

1

JOINT, CARBURETOR 1

5KM-13586-01-00

$147.99

2

O-RING (10L)

93210-44545-00

$13.49

3

O-RING(4HM)

93210-321A8-00

$5.60

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

CLAMP, HOSE 1

1D6-11387-00-00

$11.99

6

JOINT, CARBURETOR 2

5KM-13596-00-00

$63.99

7

HOSE CLAMP ASSY

90450-62006-00

$12.49

8

CASE, AIR CLEANER 1

5KM-14411-10-00

$50.99

9

HOOK

5TH-14436-00-00

$9.99

10

GUIDE

1UY-14458-01-00

$88.99

11

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

12

ELEMENT,AIR CLNR

1UY-14451-01-00

$14.49

13

CAP, CLEANER CASE 1

5KM-14412-10-00

$41.99

14

SEAL

1VJ-14462-00-00

$18.49

15

SEAL

59V-14457-00-00

$6.99

16

CLIP (21V)

90467-22080-00

Unavailable

17

JOINT, AIR CLEANER 1

5KM-14453-01-00

Unavailable

18

PIPE

31A-14419-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-75002-00

Unavailable

20

PROTECTOR

5KM-1442F-01-00

Unavailable

21

GROMMET

31A-14435-01-00

Unavailable

22

PIPE

5KM-14419-00-00

Unavailable

23

HOSE CLAMP ASSY

90450-67002-00

Unavailable

24

PLUG(4BP)

90338-08226-00

Unavailable

25

SCREW, TRUSS TAP.

97707-60025-00

Unavailable

26

GROMMET (4V1)

90480-18290-00

Unavailable

27

PLATE, EPA OFFROAD ATV 1

2C6-2177C-00-00

Unavailable

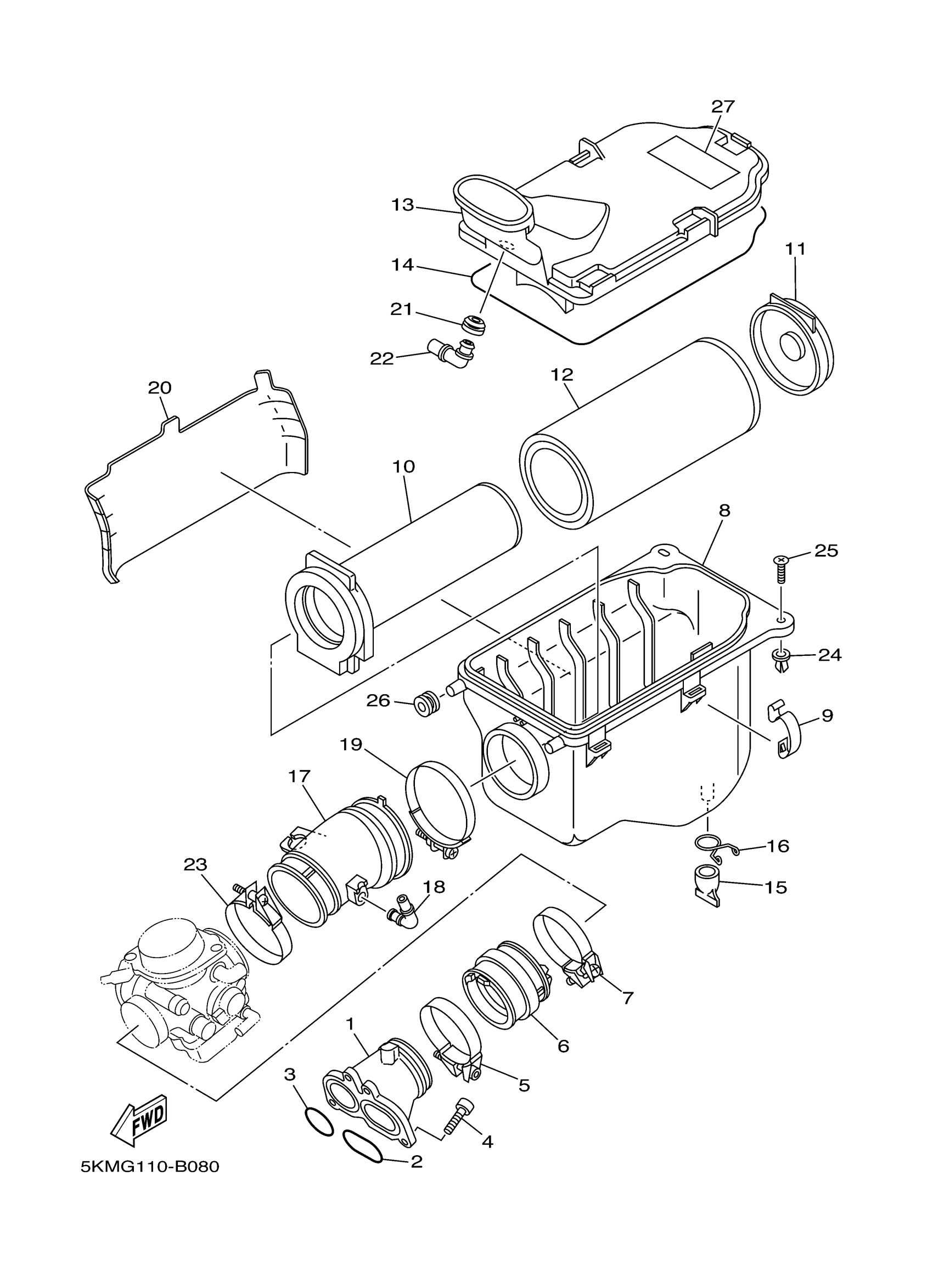

Yamaha YFM66FASEV (GRIZZLY 660 SPECIAL EDITION) 2C6D 2006 INTAKE Diagram

JOINT, CARBURETOR 1

O-RING (10L)

O-RING(4HM)

BOLT,SOCKET

CLAMP, HOSE 1

JOINT, CARBURETOR 2

HOSE CLAMP ASSY

CASE, AIR CLEANER 1

HOOK

GUIDE

PLATE, ELEMENT FITTING

ELEMENT,AIR CLNR

CAP, CLEANER CASE 1

SEAL

SEAL

CLIP (21V)

JOINT, AIR CLEANER 1

PIPE

HOSE CLAMP ASSY

PROTECTOR

GROMMET

PIPE

HOSE CLAMP ASSY

PLUG(4BP)

SCREW, TRUSS TAP.

GROMMET (4V1)

PLATE, EPA OFFROAD ATV 1
