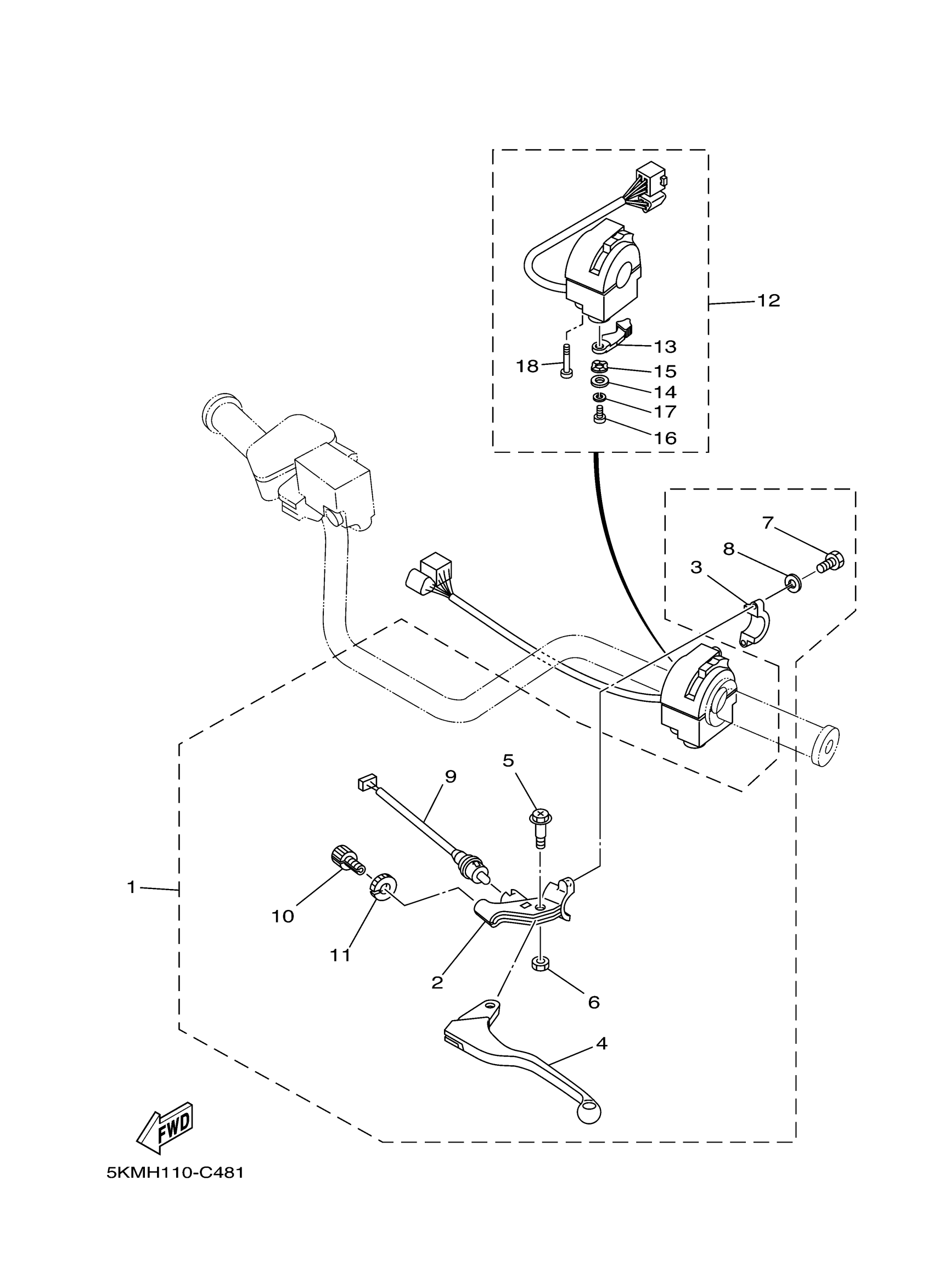

Yamaha YFM66FASEV (GRIZZLY 660 SPECIAL EDITION) 2C6D 2006 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

5KM-82910-03-00

Unavailable

2

HOLDER, LEVER 1

1YW-82911-02-00

Unavailable

3

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

4

LEVER 1

23X-83912-02-00

$20.03

5

BOLT (2YK1)

90109-06799-00

$4.23

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

SCREW, PAN

98517-06020-00

$1.79

8

WASHER, SPRING

92907-06100-00

$0.98

9

SWITCH

5KM-82917-00-00

$47.41

10

BOLT

90123-08002-00

$8.57

11

NUT

90179-08030-00

$3.63

12

SWITCH, HANDLE 4

5KM-83972-01-00

Unavailable

13

LEVER, STARTER

5KM-83941-00-00

$11.00

14

WASHER, SPECIAL

1UY-83909-00-00

$6.03

15

WASHER, STARTER

3L4-83943-00-00

$6.03

16

SCREW, PAN

98517-05012-00

Unavailable

17

WASHER(3SX)

92907-05100-00

Unavailable

18

SCREW, PAN

98507-05035-00

Unavailable
