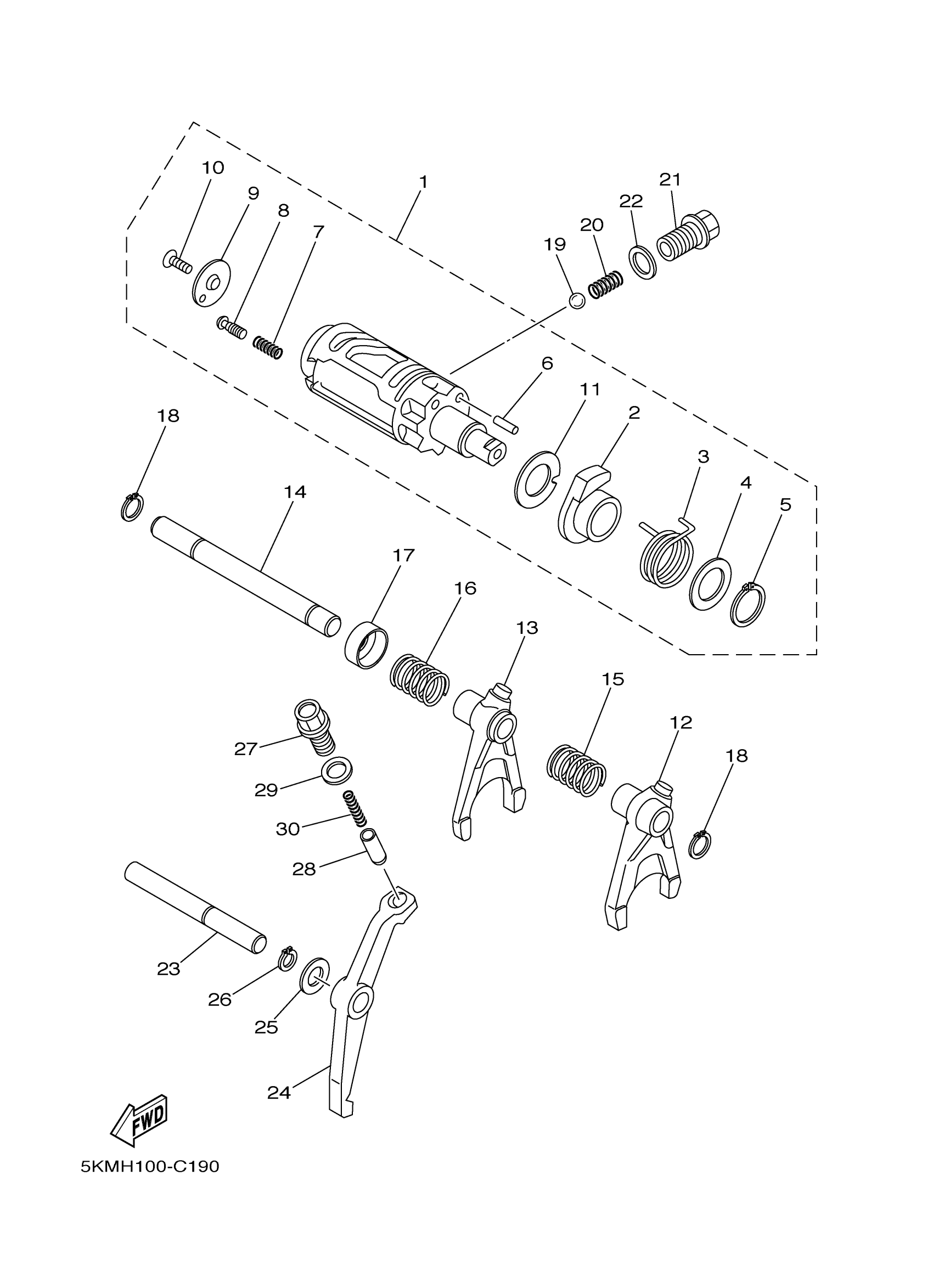

Yamaha YFM66FAHWT (GRIZZLY 660 HUNTER WETLAND) 2C62 2005 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

5KM-18540-02-00

Unavailable

2

CAM, LEVER

5KM-18171-00-00

$46.99

3

SPRING, TORSION

90508-32018-00

$2.97

4

WASHER, PLATE (3Y1)

90201-20792-00

$9.49

5

CIRCLIP (525)

93410-20038-00

$3.76

6

PIN, DOWEL (363)

93604-18100-00

$3.55

7

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

8

POINT, NEUTRAL

5KM-18542-00-00

$15.49

9

PLATE, SIDE 2

4UN-18566-00-00

$19.99

10

SCREW(3HX)

90149-05245-00

$8.49

11

PLATE, SHIFT CAM

5KM-18331-00-00

$5.49

12

FORK, SHIFT 1

5KM-18511-00-00

Unavailable

13

FORK, SHIFT 2

5KM-18512-00-00

Unavailable

14

BAR, SHIFT FORK GUIDE 1

5KM-18531-01-00

Unavailable

15

SPRING, COMPRESSION

90501-12016-00

$7.49

16

SPRING, COMPRESSION

90501-16002-00

Unavailable

17

CAP, SPRING

5KM-18323-00-00

Unavailable

18

CIRCLIP(10Y)

99009-12400-00

Unavailable

19

BALL

93503-08007-00

Unavailable

20

SPRING, COMPRESSION (465)

90501-10353-00

Unavailable

21

BOLT, WASHER BASED(59V)

90105-14367-00

Unavailable

22

GASKET(59V)

90430-14194-00

Unavailable

23

SHAFT, SHIFTER

5KM-18318-00-00

Unavailable

24

LEVER, STOPPER

5KM-18148-00-00

Unavailable

25

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

26

CIRCLIP(10Y)

99009-12400-00

Unavailable

27

BOLT

90109-14002-00

Unavailable

28

STOPPER, CAM

1J7-18547-00-00

Unavailable

29

GASKET 256131670000

90430-14043-00

Unavailable

30

SPRING, COMPRESSION

90501-12004-00

Unavailable
