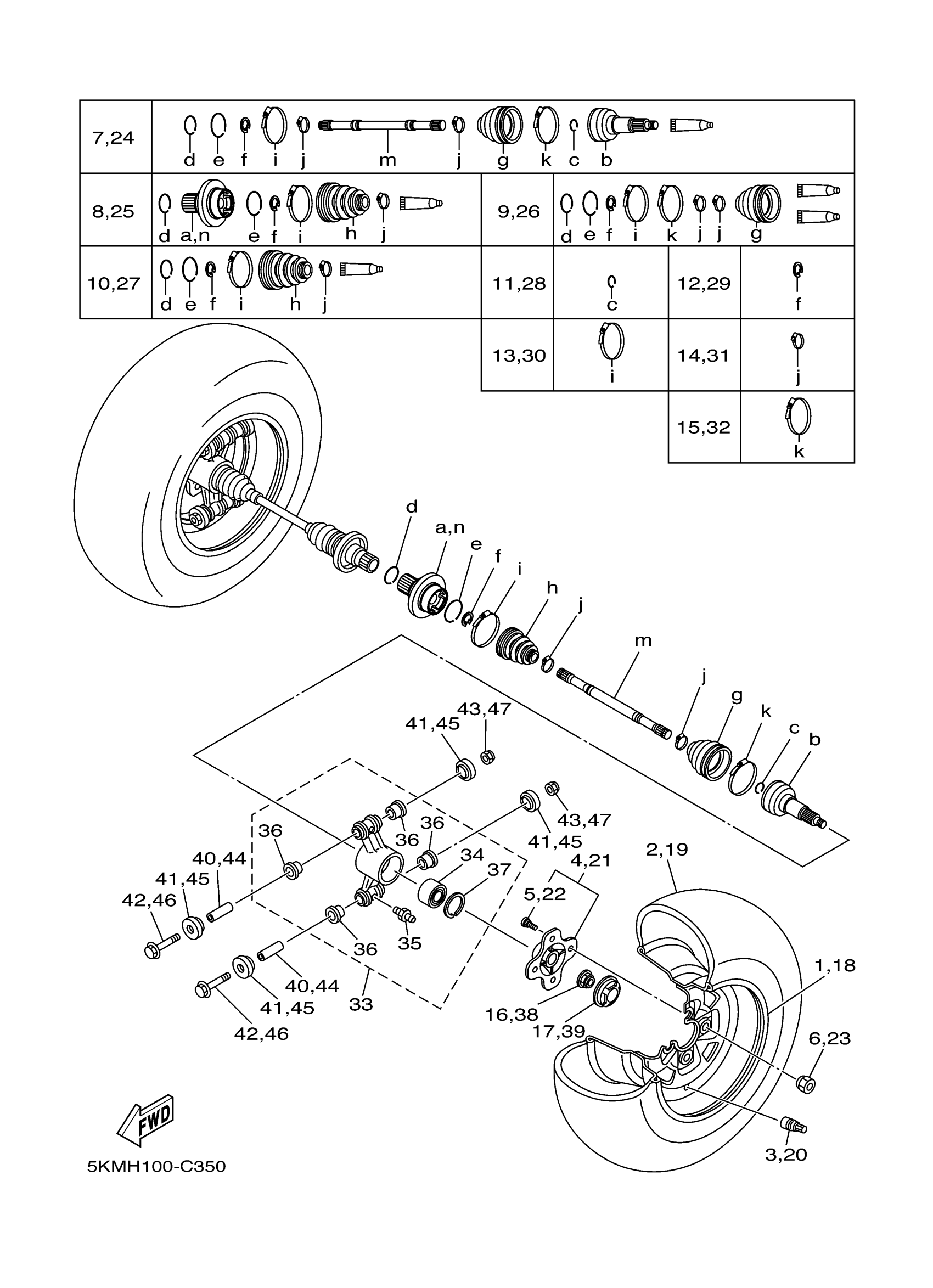

Yamaha YFM66FAHWT (GRIZZLY 660 HUNTER WETLAND) 2C62 2005 REAR WHEEL Diagram
#
1
WHEEL,REAR
5KM-F5390-19-00
Unavailable
2
TIRE 14 80/90 (Y-TEQ)
2C6-2510K-19-00
Unavailable
4
HUB, REAR
5KM-25311-10-00
Unavailable
7
BALL JOINT SET
5KM-2530U-13-00
Unavailable
8
DOUBLE OFF SET JOINT
5KM-2530W-12-00
Unavailable
13
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
16
NUT
90179-20016-00
Unavailable
17
CAP, WHEEL
5KM-2512A-00-00
Unavailable
18
WHEEL,REAR
5KM-F5390-19-00
Unavailable
19
TIRE 14 80/90 (Y-TEQ)
2C6-2510K-19-00
Unavailable
21
HUB, REAR
5KM-25311-10-00
Unavailable
24
BALL JOINT SET
5KM-2530T-13-00
Unavailable
25
DOUBLE OFF SET JOINT
5KM-2530V-12-00
Unavailable
30
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
33
REAR KNUCKLE ASSY
5KM-2530F-11-00
Unavailable
34
BEARING
93305-00602-00
Unavailable
35
NIPPLE, GREASE
93700-06M03-00
Unavailable
36
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
37
CIRCLIP
99009-55500-00
Unavailable
38
NUT
90179-20016-00
Unavailable
39
CAP, WHEEL
5KM-2512A-00-00
Unavailable
40
SPACER
5KM-23448-00-00
Unavailable
41
COVER, THRUST 1
3JN-23517-00-00
Unavailable
42
BOLT, WASHER BASED(2NL)
90105-10480-00
Unavailable
43
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
44
SPACER
5KM-23448-00-00
Unavailable
45
COVER, THRUST 1
3JN-23517-00-00
Unavailable
46
BOLT, WASHER BASED(2NL)
90105-10480-00
Unavailable
47
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
