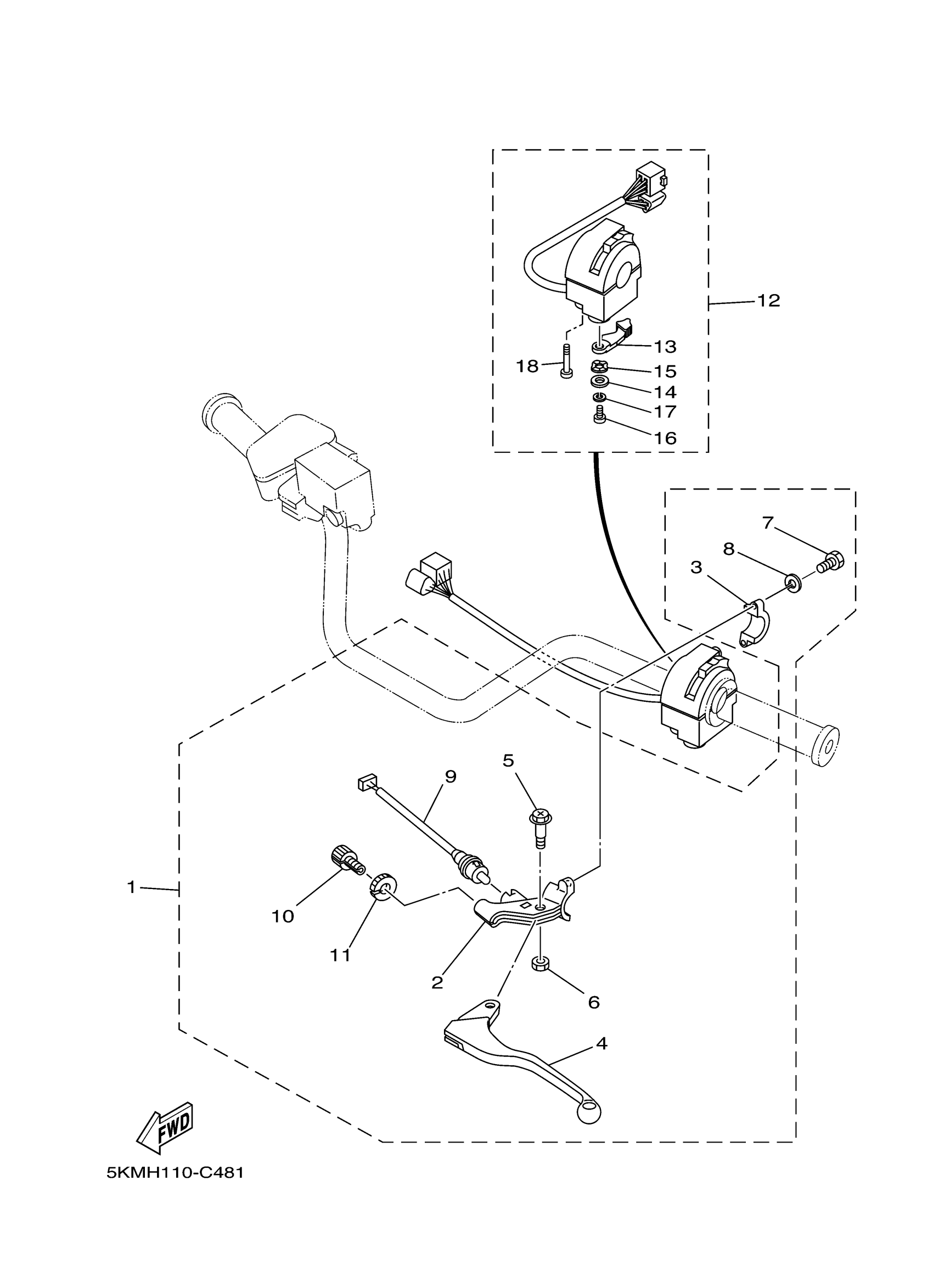

Yamaha YFM66FAHWT (GRIZZLY 660 HUNTER WETLAND) 2C62 2005 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

5KM-82910-03-00

Unavailable

2

HOLDER, LEVER 1

1YW-82911-02-00

Unavailable

3

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

4

LEVER 1

23X-83912-02-00

$27.99

5

BOLT (2YK1)

90109-06799-00

$4.99

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN

98517-06020-00

$8.49

8

WASHER, SPRING

92907-06100-00

$4.25

9

SWITCH

5KM-82917-00-00

$58.99

10

BOLT

90123-08002-00

$10.49

11

NUT

90179-08030-00

$5.49

12

SWITCH, HANDLE 4

5KM-83972-01-00

$144.99

13

LEVER, STARTER

5KM-83941-00-00

$15.49

14

WASHER, SPECIAL

1UY-83909-00-00

$7.99

15

WASHER, STARTER

3L4-83943-00-00

$7.99

16

SCREW, PAN

98517-05012-00

Unavailable

17

WASHER(3SX)

92907-05100-00

Unavailable

18

SCREW, PAN HEAD

98517-05030-00

Unavailable
