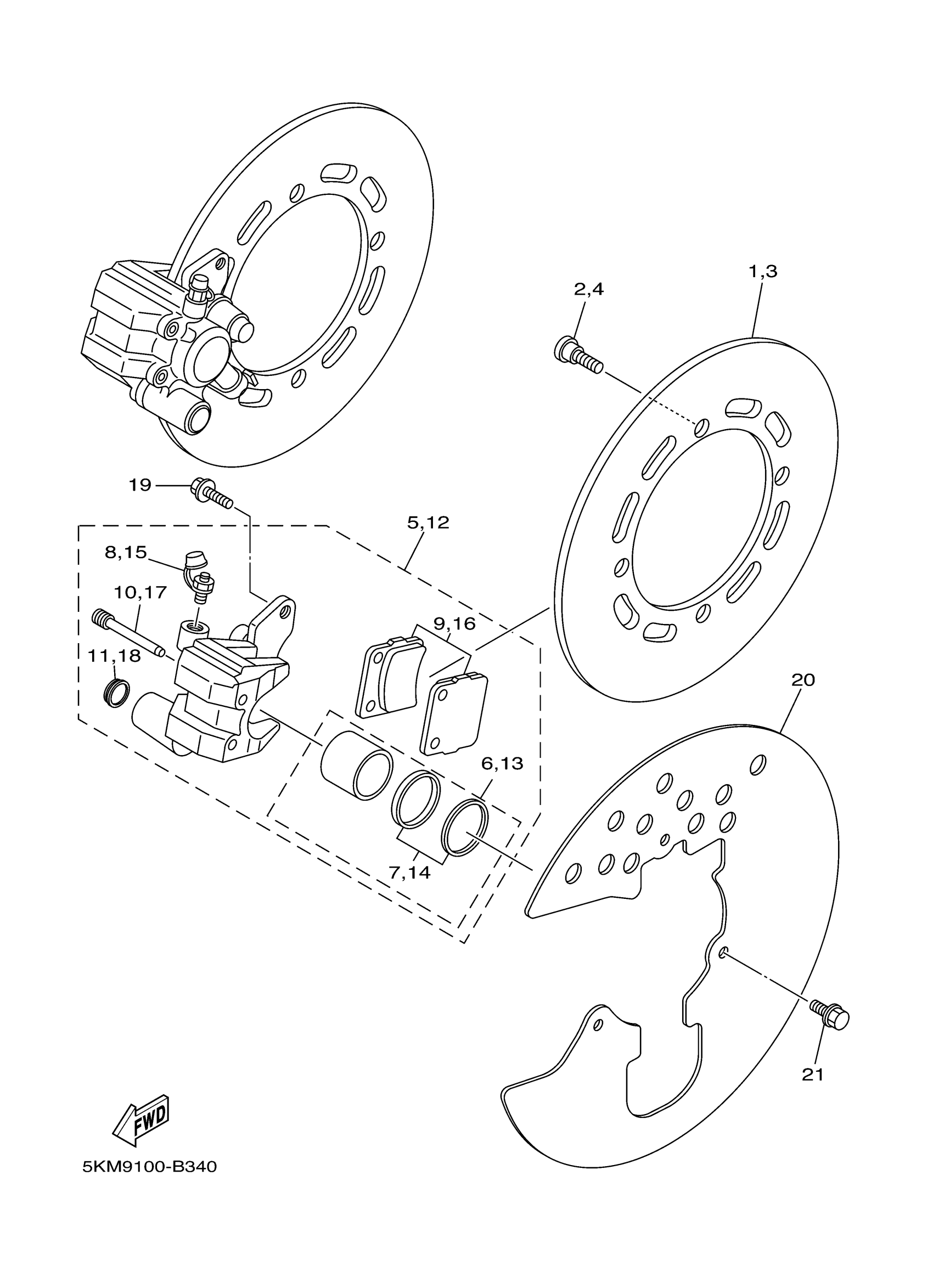

Yamaha YFM66FAHWT (GRIZZLY 660 HUNTER WETLAND) 2C62 2005 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5KM-2582T-10-00

$246.99

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE (LEFT)

5KM-2582T-10-00

$246.99

4

BOLT

90109-08087-00

$8.49

5

CALIPER ASSY (LEFT)

4WV-2580T-10-00

$302.99

6

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

7

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

8

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

9

BRAKE PAD KIT

4WV-W0045-00-00

$44.99

10

PIN, PAD

3GD-25933-00-00

$28.99

11

DUST PLUG

3GD-25916-00-00

$7.99

12

CALIPER ASSY (RIGHT)

4WV-2580U-10-00

Unavailable

13

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

14

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

15

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

16

BRAKE PAD KIT

4WV-W0045-00-00

$44.99

17

PIN, PAD

3GD-25933-00-00

$28.99

18

DUST PLUG

3GD-25916-00-00

$7.99

19

BOLT, FLANGE

95817-08014-00

Unavailable

20

RING, WHEEL 1 (LEFT)

5KM-2514A-10-00

Unavailable

21

SCREW, ROUND HEAD(55K)

90150-06021-00

Unavailable
