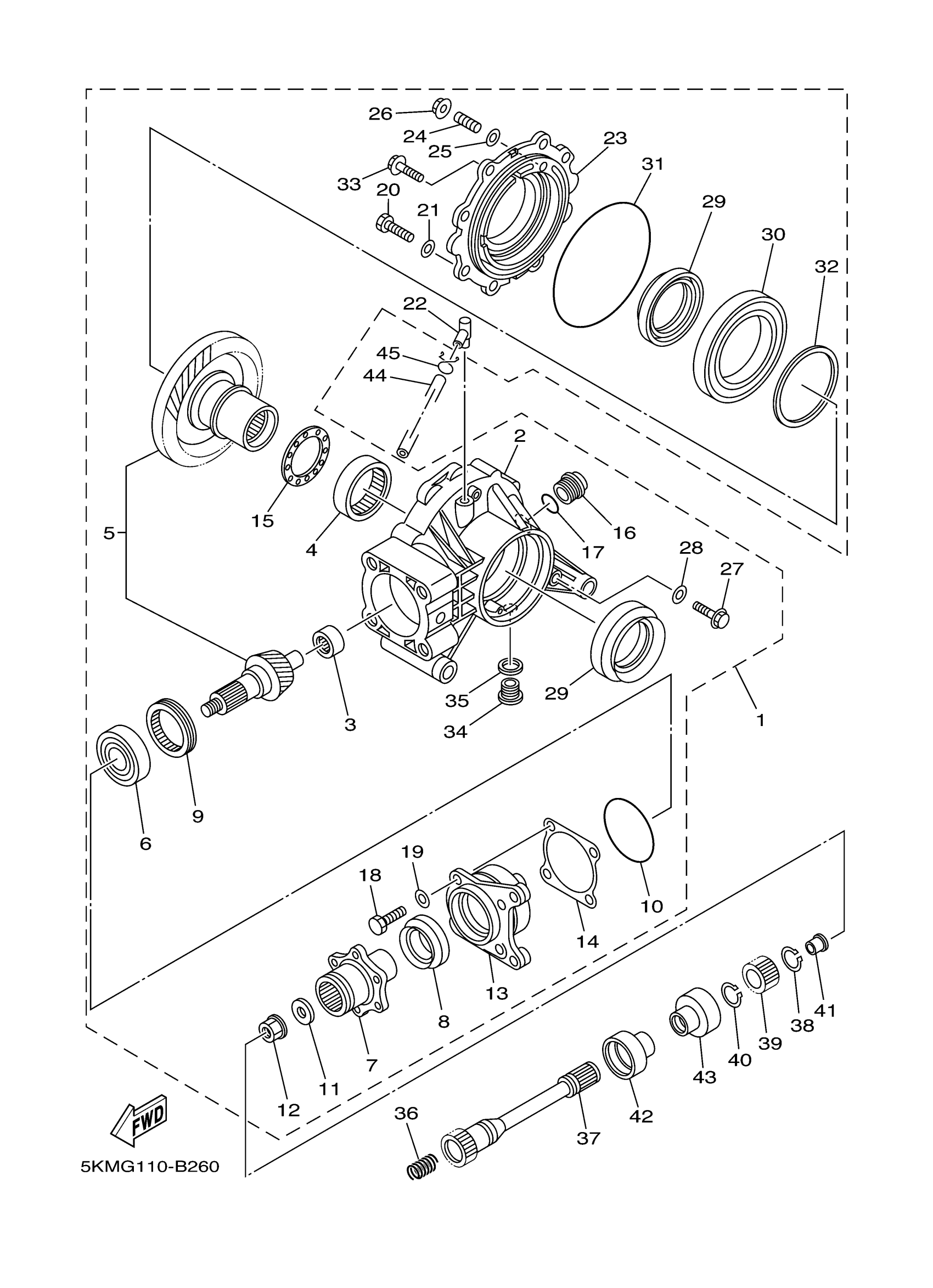

Yamaha YFM66FAHV (GRIZZLY 660 HUNTER HARDWOODS HD CAMO) 2C6E 2006 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

5KM-46101-12-00

Unavailable

2

HOUSING, DRIVE SHAFT

5KM-46151-02-00

Unavailable

3

BEARING ASSY

5KM-46102-00-00

$65.99

4

BEARING, CYLINDRICAL(3HN)

93317-85569-00

$86.99

5

RING GEAR SET

5KM-Y4612-20-00

$537.99

6

BEARING

93306-30574-00

$73.99

7

BOSS, 1

5KM-46212-00-00

$223.99

8

OIL SEAL

93102-35009-00

$22.99

9

NUT

90179-65001-00

Unavailable

10

O-RING

93210-626A7-00

$14.99

11

WASHER (838)

90201-12191-00

$7.49

12

NUT (4X7)

90179-12325-00

$5.60

13

HOUSING, PINION BEARING

5KM-46144-01-00

$131.99

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$15.49

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$15.49

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

Unavailable

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

Unavailable

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

Unavailable

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

Unavailable

15

WASHER, THRUST

24W-46118-00-12

Unavailable

15

WASHER, THRUST

24W-46118-00-14

Unavailable

15

WASHER, THRUST

24W-46118-00-16

Unavailable

15

WASHER, THRUST

24W-46118-00-18

Unavailable

15

WASHER, THRUST

24W-46118-00-20

Unavailable

16

PLUG, STRAIGHT SCREW(4GY)

90340-20143-00

Unavailable

17

O-RING (646)

93210-19123-00

Unavailable

18

BOLT

97017-08035-00

Unavailable

19

WASHER(6TA)

92907-08600-00

Unavailable

20

BOLT, HEXAGON

97017-08025-00

Unavailable

21

WASHER(6TA)

92907-08600-00

Unavailable

22

BREATHER

5UG-15371-00-00

Unavailable

23

HOUSING, BEARING

5KM-46152-00-00

Unavailable

24

STOPPER, RING GEAR

2HR-46156-00-00

Unavailable

25

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

26

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

27

BOLT, SMALL FLANGE

95027-08012-00

Unavailable

28

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

29

OIL SEAL

93102-65004-00

Unavailable

30

BEARING

93316-01701-00

Unavailable

31

O-RING(59V)

93211-54698-00

Unavailable

32

SHIM, RING GEAR

22U-46117-00-25

Unavailable

32

SHIM, RING GEAR

22U-46117-00-30

Unavailable

32

SHIM, RING GEAR

22U-46117-00-40

Unavailable

33

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

34

PLUG, STRAIGHT SCREW

90340-14002-00

Unavailable

35

GASKET

214-11198-01-00

Unavailable

36

SPRING, COMPRESSION

90501-18002-00

Unavailable

37

SHAFT, DRIVE

5KM-46172-00-00

Unavailable

38

CIRCLIP(1EY)

99009-19400-00

Unavailable

39

COUPLING

5KM-46126-00-00

Unavailable

40

CIRCLIP (537)

93410-22039-00

Unavailable

41

DAMPER

5KM-46559-00-00

Unavailable

42

SEAL 2

5KM-46137-00-00

Unavailable

43

SEAL 1

5KM-46136-00-00

Unavailable

44

HOSE (L1050)

90445-072G8-00

Unavailable

45

CLIP (1J7)

90467-07029-00

Unavailable
