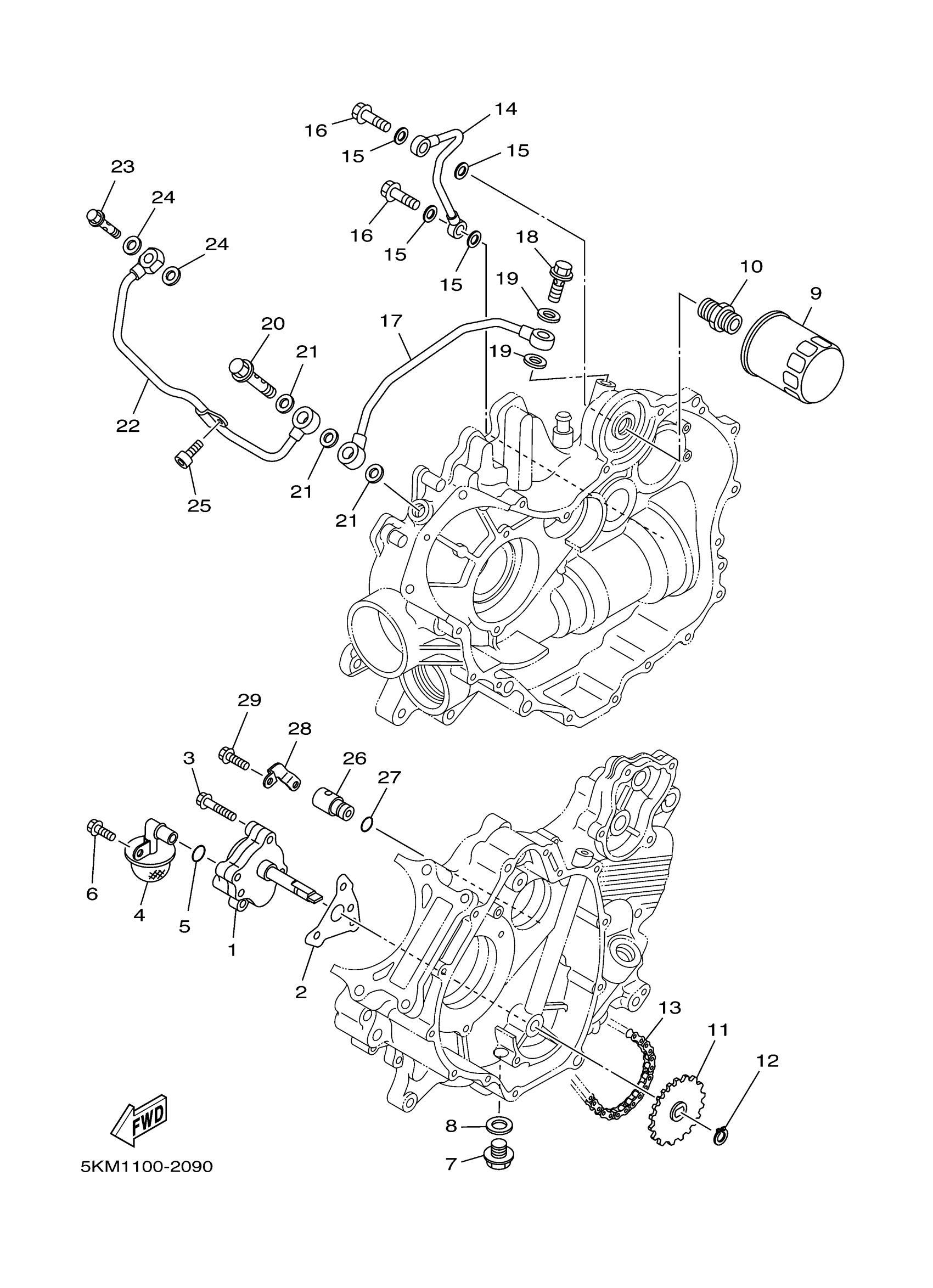

Yamaha YFM66FAHT (GRIZZLY 660 HUNTER) 2C61 2005 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5KM-13300-00-00

$127.99

2

GASKET, PUMP COVER

5KM-13329-00-00

$7.99

3

BOLT, SMALL FLANGE

95027-06040-00

$3.28

4

STRAINER HOUSING ASSY

5KM-13410-00-00

$85.99

5

O-RING (26H)

93210-14579-00

$7.49

6

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

7

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

8

GASKET

214-11198-01-00

$3.17

9

ELEMENT ASSY, OIL CLEANER

5GH-13440-72-00

$16.49

10

BOLT, UNION

90401-20007-00

Unavailable

11

SPROCKET, DRIVEN

5KM-13355-00-00

$55.99

12

CIRCLIP(24H)

99009-11400-00

$8.49

13

CHAIN

94581-94070-00

$27.99

14

PIPE, DELIVERY 1

3AJ-13161-01-00

Unavailable

15

GASKET(3AJ)

90430-08204-00

$8.99

16

BOLT, UNION

90401-08004-00

Unavailable

17

PIPE, DELIVERY 2

5KM-13171-00-00

Unavailable

18

BOLT, UNION(1YW)

90401-14118-00

Unavailable

19

GASKET 256131670000

90430-14043-00

Unavailable

20

BOLT, UNION

5KM-12858-00-00

Unavailable

21

GASKET 256131670000

90430-14043-00

Unavailable

22

PIPE, DELIVERY 3

5KM-13181-00-00

Unavailable

23

BOLT, UNION(3GM)

90401-10159-00

Unavailable

24

GASKET

90430-10188-00

Unavailable

25

BOLT,SOCKET

91317-06012-00

Unavailable

26

RELIEF VALVE ASSY

5KM-13490-00-00

Unavailable

27

O-RING (611)

93210-10096-00

Unavailable

28

PLATE

5KM-1319K-00-00

Unavailable

29

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
