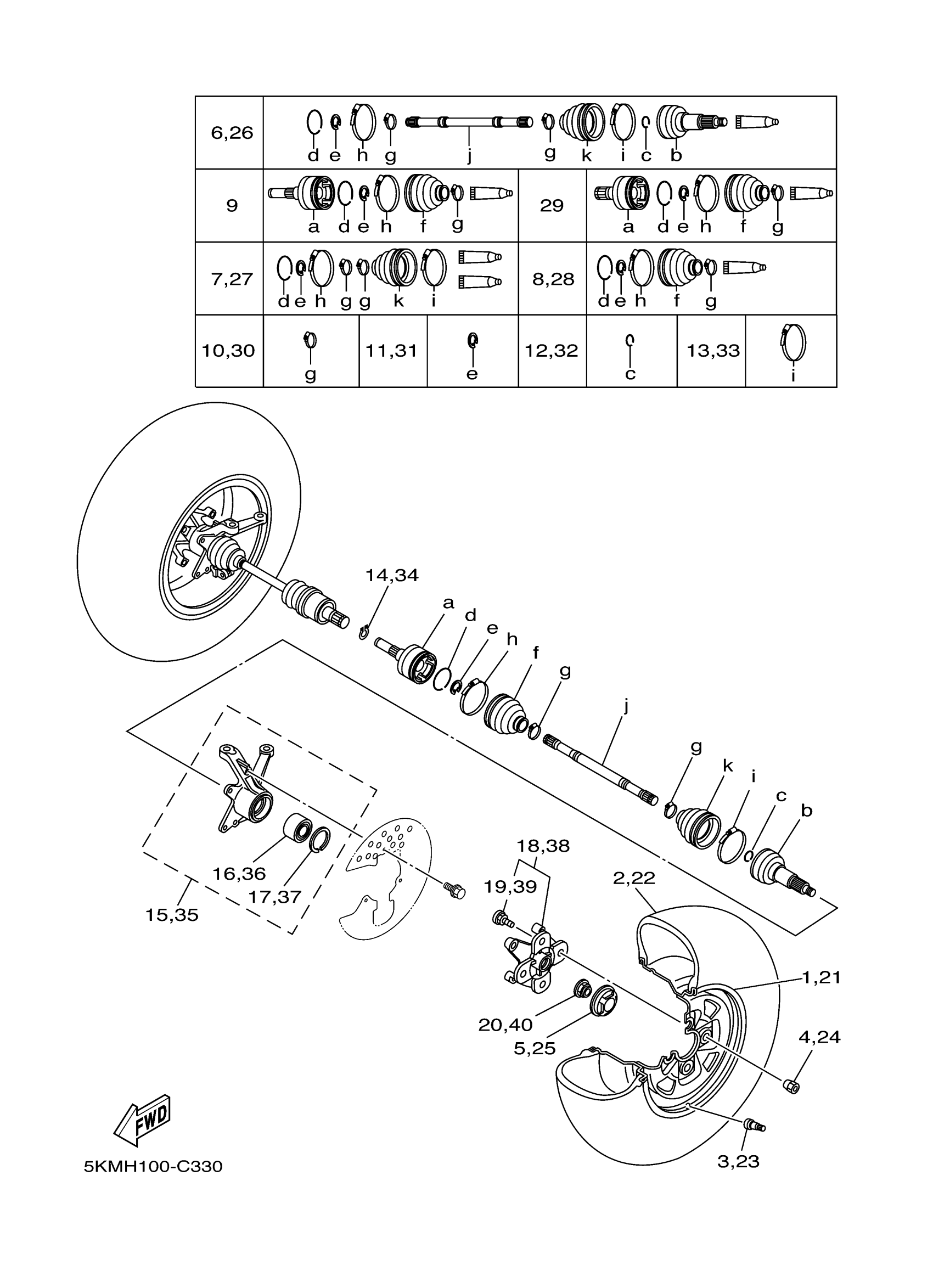

Yamaha YFM66FAHT (GRIZZLY 660 HUNTER) 2C61 2005 FRONT WHEEL Diagram
#
Description
Price
1
WHEEL,COMP.
5KM-F5180-19-00
Unavailable
2
TIRE (AT 25X8-12** KT131 T/L)
94108-12011-00
Unavailable
5
CAP, WHEEL
5KM-2512A-00-00
Unavailable
6
BALL JOINT SET
5KM-2510F-11-00
Unavailable
7
BOOT SET (BALL JOINT)
5KM-2510G-11-00
Unavailable
9
DOUBLE OFF SET JOINT
5KM-2510J-30-00
Unavailable
15
STEERING KNUCKLE ASSY (LEFT)
5KM-23501-11-00
Unavailable
16
BEARING
93305-00602-00
Unavailable
17
CIRCLIP
99009-55500-00
Unavailable
18
HUB, FRONT
5KM-25111-10-00
Unavailable
19
BOLT, SERRATION
90114-10014-00
Unavailable
20
NUT
90179-20016-00
Unavailable
21
WHEEL,COMP.
5KM-F5180-19-00
Unavailable
22
TIRE (AT 25X8-12** KT131 T/L)
94108-12011-00
Unavailable
25
CAP, WHEEL
5KM-2512A-00-00
Unavailable
26
BALL JOINT SET
5KM-2510F-11-00
Unavailable
27
BOOT SET (BALL JOINT)
5KM-2510G-11-00
Unavailable
29
DOUBLE OFF SET JOINT
5KM-2510J-20-00
Unavailable
34
CIRCLIP(2HR)
93450-22119-00
Unavailable
35
STEERING KNUCKLE ASSY (RIGHT)
5KM-23502-11-00
Unavailable
36
BEARING
93305-00602-00
Unavailable
37
CIRCLIP
99009-55500-00
Unavailable
38
HUB, FRONT
5KM-25111-10-00
Unavailable
39
BOLT, SERRATION
90114-10014-00
Unavailable
40
NUT
90179-20016-00
Unavailable
