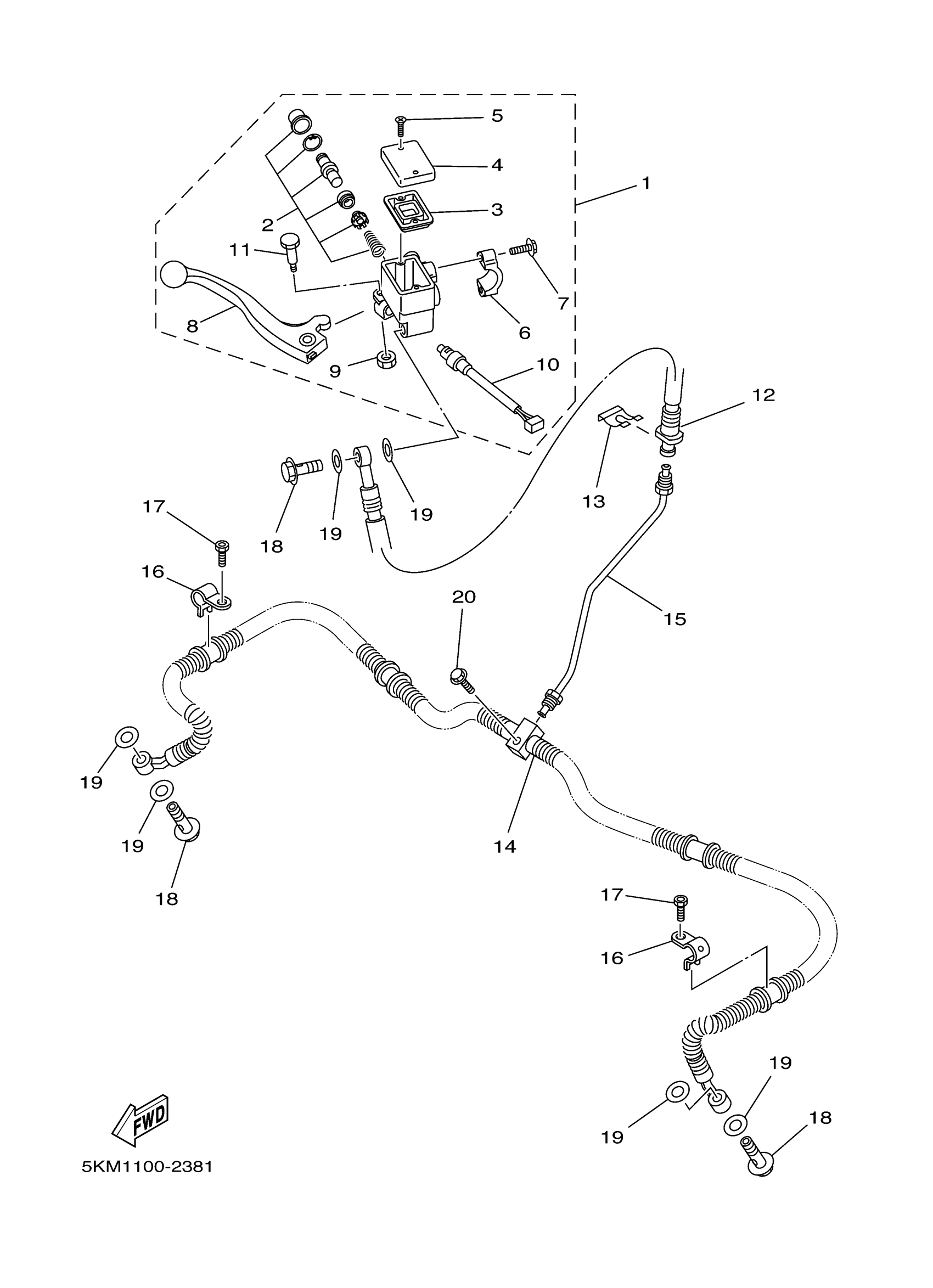

Yamaha YFM66FAHT (GRIZZLY 660 HUNTER) 2C61 2005 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5KM-2583T-01-00

$313.99

2

CYLINDER KIT, MASTER

8CR-W0041-00-00

$57.99

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

4

CAP, RESERVOIR

5JX-25852-01-00

Unavailable

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

5GH-25867-00-00

Unavailable

7

BOLT

5EB-26332-00-00

$7.99

8

LEVER 2

5KM-83922-00-00

$37.99

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$64.99

11

BOLT, LEVER

1FK-2589F-00-00

$5.49

12

HOSE, BRAKE 1

5KM-25872-11-00

$49.99

13

CIRCLIP

2GU-25866-00-00

$9.99

14

HOSE, BRAKE 2

5KM-25873-20-00

Unavailable

15

PIPE, BRAKE

5KM-25871-10-00

Unavailable

16

HOLDER, BRAKE HOSE 1

5KM-25875-00-00

Unavailable

17

BOLT,SOCKET

91317-06010-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

BOLT, FLANGE

95817-06025-00

Unavailable
