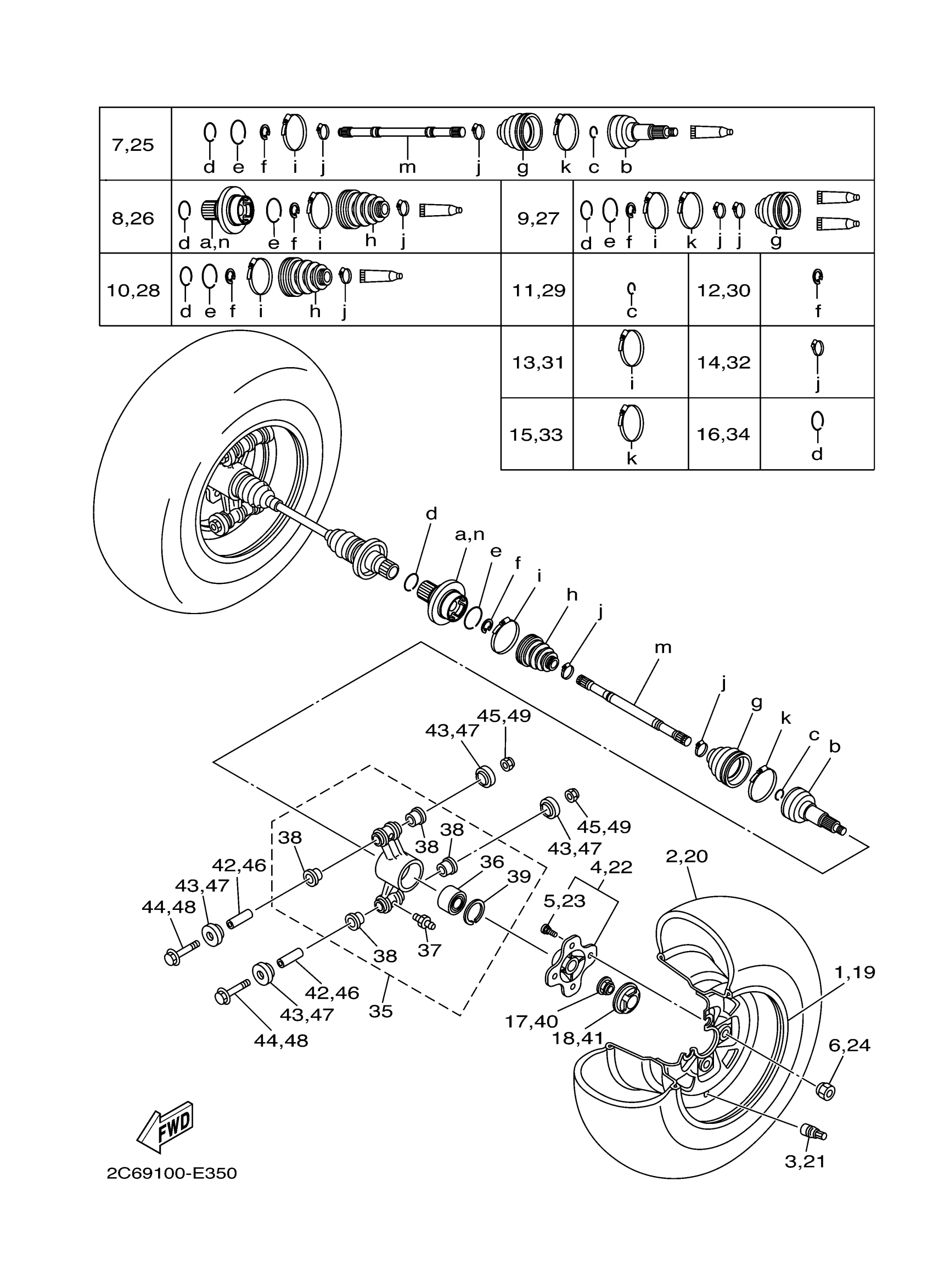

Yamaha YFM66FAHDV (GRIZZLY 660 DUCKS UNLIMITED EDITION) 2C6L 2006 REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR

5KM-F5390-19-00

Unavailable

2

TIRE 14 80/90 (Y-TEQ)

2C6-2510K-19-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

HUB, REAR

5KM-25311-10-00

Unavailable

5

BOLT, SERRATION

90114-10014-00

$7.49

6

NUT

90179-10007-00

$7.49

7

BALL JOINT SET

5KM-2530U-13-00

Unavailable

8

DOUBLE OFF SET JOINT

5KM-2530W-12-00

Unavailable

9

BOOT SET (BALL JOINT)

5KM-2530X-12-00

$66.99

10

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2530Y-11-00

$60.99

11

CIRCLIP

4KB-2512H-00-00

$6.99

12

SNAP RING

2HR-2512J-00-00

$6.99

13

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

14

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

15

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

16

CLIP, SPRING

5KM-2536E-10-00

Unavailable

17

NUT

90179-20016-00

Unavailable

18

CAP, WHEEL

5KM-2512A-00-00

Unavailable

19

WHEEL,REAR

5KM-F5390-19-00

Unavailable

20

TIRE 14 80/90 (Y-TEQ)

2C6-2510K-19-00

Unavailable

21

VALVE, RIM(2GH)

93900-00030-00

$16.99

22

HUB, REAR

5KM-25311-10-00

Unavailable

23

BOLT, SERRATION

90114-10014-00

$7.49

24

NUT

90179-10007-00

$7.49

25

BALL JOINT SET

5KM-2530T-13-00

Unavailable

26

DOUBLE OFF SET JOINT

5KM-2530V-12-00

Unavailable

27

BOOT SET (BALL JOINT)

5KM-2530X-12-00

$66.99

28

BOOT SET (DOUBLE OFFSET JOINT)

5KM-2530Y-11-00

$60.99

29

CIRCLIP

4KB-2512H-00-00

$6.99

30

SNAP RING

2HR-2512J-00-00

$6.99

31

BOOT BAND (DOUBLE OFFSET JOINT

4KB-2511H-00-00

Unavailable

32

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

33

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

34

CLIP, SPRING

5KM-2536E-10-00

Unavailable

35

REAR KNUCKLE ASSY

5KM-2530F-11-00

Unavailable

36

BEARING

93305-00602-00

Unavailable

37

NIPPLE, GREASE

93700-06M03-00

Unavailable

38

BUSH, SOLID(2NL)

90381-17067-00

Unavailable

39

CIRCLIP

99009-55500-00

Unavailable

40

NUT

90179-20016-00

Unavailable

41

CAP, WHEEL

5KM-2512A-00-00

Unavailable

42

SPACER

5KM-23448-00-00

Unavailable

43

COVER, THRUST 1

3JN-23517-00-00

Unavailable

44

BOLT, WASHER BASED(2NL)

90105-10480-00

Unavailable

45

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

46

SPACER

5KM-23448-00-00

Unavailable

47

COVER, THRUST 1

3JN-23517-00-00

Unavailable

48

BOLT, WASHER BASED(2NL)

90105-10480-00

Unavailable

49

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable
