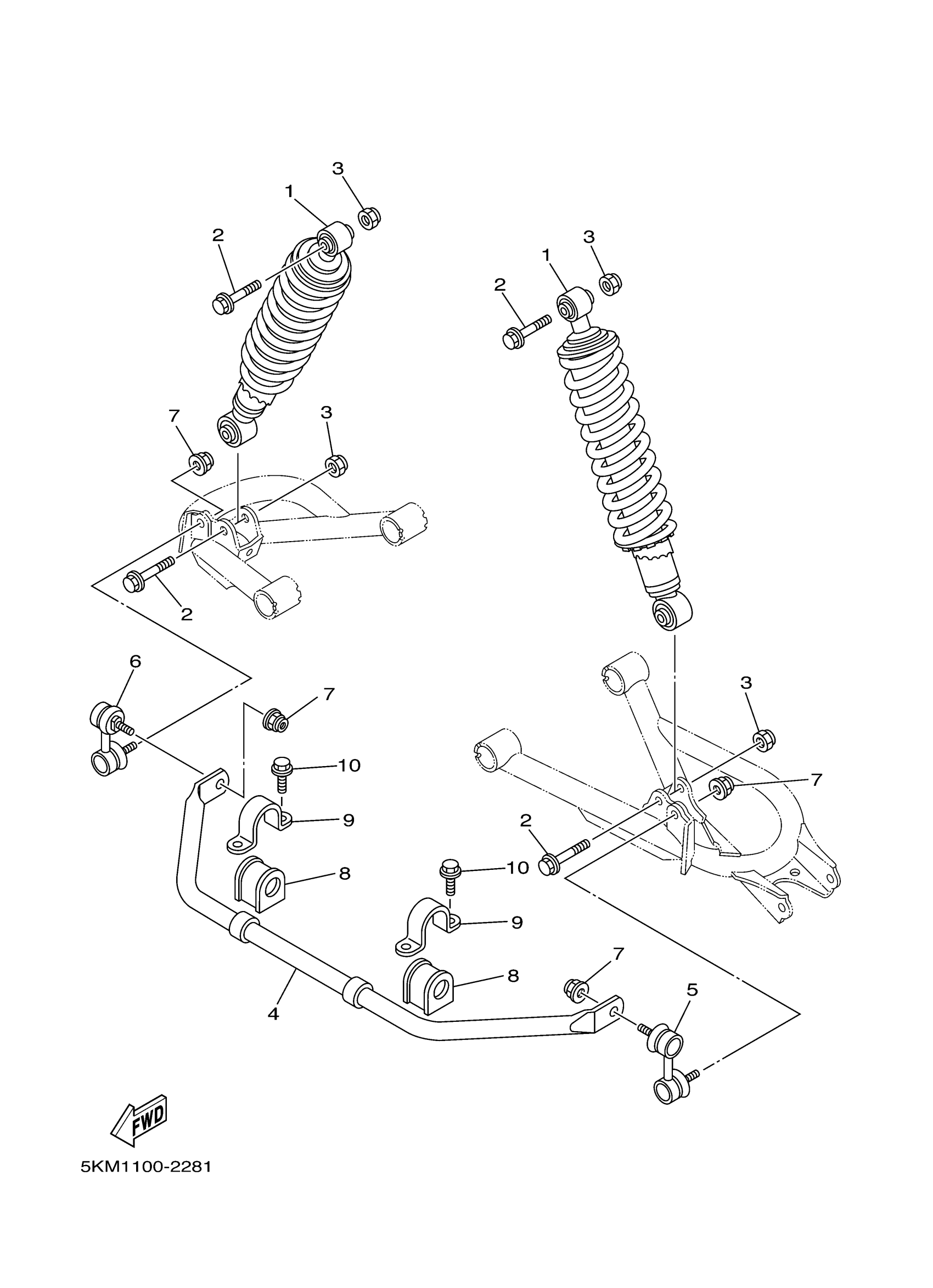

Yamaha YFM66FAHDV (GRIZZLY 660 DUCKS UNLIMITED EDITION) 2C6L 2006 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSY, REAR

5KM-22210-20-00

Unavailable

BOLT, WASHER BASED(59V)

90105-10388-00

$10.49

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

BAR, STABILIZER

5KM-47491-00-00

Unavailable

JOINT, STABILIZER 1

16B-2385L-10-00

$72.99

JOINT, STABILIZER 2

16B-2385M-10-00

$72.99

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

BUSH, STABILIZER FRONT

5KM-2386G-00-00

$7.99

COVER, STABILIZER FRONT

5KM-2386H-00-00

Unavailable

BOLT, FLANGE

95817-08014-00

$5.60
