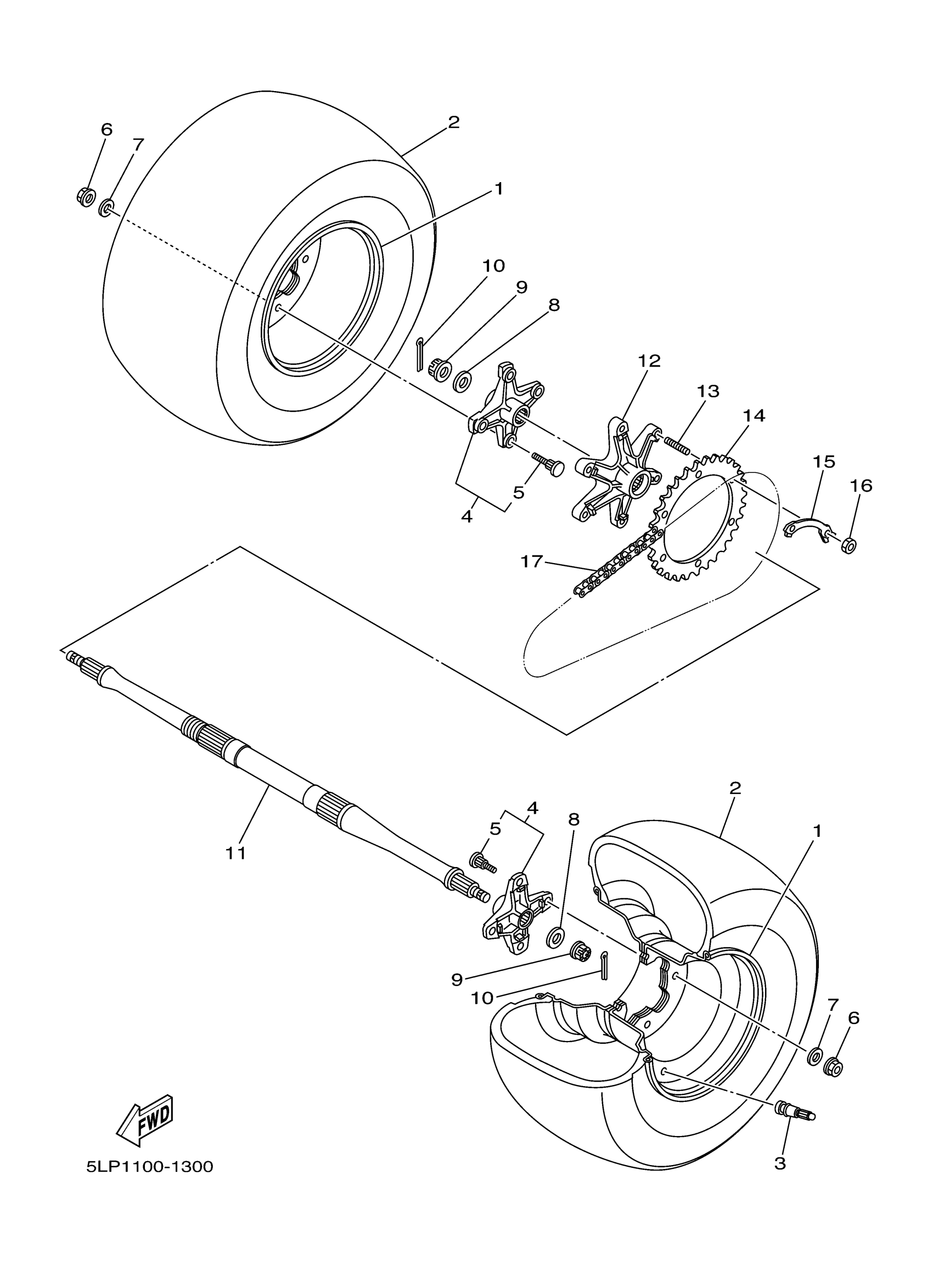

Yamaha YFM660RT (660R RAPTOR) 5LPP 2005 REAR WHEEL Diagram

REAR WHEEL COMP.

5LP-25390-11-YX

Unavailable

TIRE (AT20 X 10-9** KT335 T/L)

94110-09008-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

BOLT, RIBBED NECK(3GD)

90114-10009-00

$7.49

NUT, FLANGE(8AB)

95707-10500-00

$3.18

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

WASHER, PLATE

90201-14226-00

$5.60

NUT, CASTLE (29U)

90171-14037-00

$11.49

PIN, COTTER

91490-30030-00

$8.49

AXLE, WHEEL

5LP-25381-10-00

Unavailable

COLLAR, SPROCKET AXLE

5LP-25386-00-00

$201.99

BOLT, STUD(2XJ)

90116-08507-00

$9.49

SPROCKET, DRIVEN (40T)

2XJ-25440-21-00

$42.99

WASHER

2XJ-25412-00-00

$4.32

NUT (3Y2)

90170-08258-00

Unavailable

CHAIN

94582-02092-00

Unavailable
