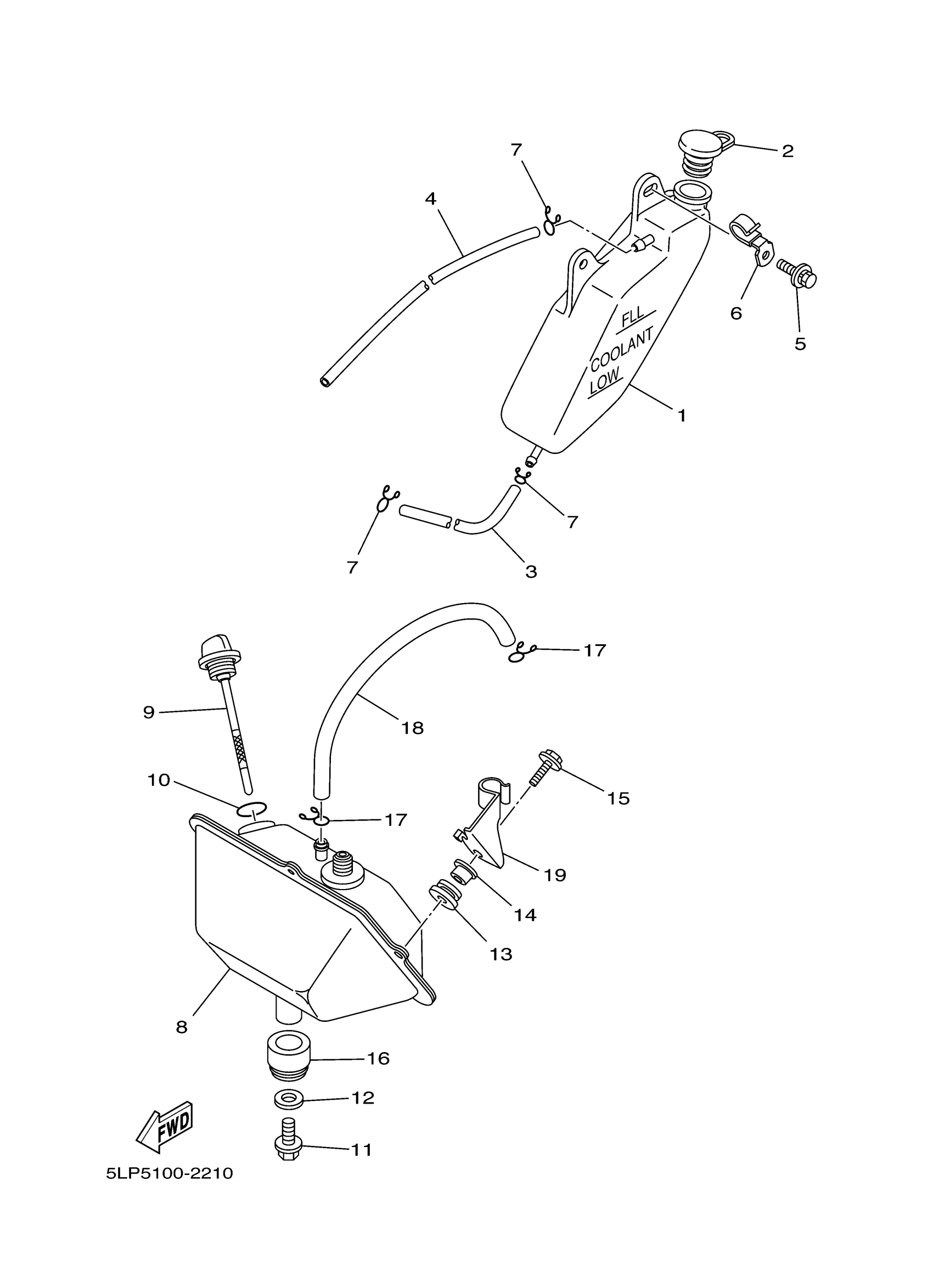

Yamaha YFM660RT (660R RAPTOR) 5LPP 2005 OIL TANK Diagram

#

Description
Price

1

TANK, RECOVERY

3LD-21871-00-00

$68.99

2

CAP

10V-21875-00-00

$21.99

3

HOSE (L1500)

90445-090F6-00

$31.99

4

HOSE (L590)

90445-10020-00

Unavailable

5

BOLT, WITH WASHER

90119-06152-00

$7.49

6

CLAMP 1

5LP-24135-10-00

Unavailable

7

CLIP 101235600

90467-08003-00

$10.49

8

OIL TANK ASSY

5LP-21750-01-00

Unavailable

9

GAUGE, LEVEL

5LP-21761-01-00

$11.99

10

O-RING

93210-21190-00

$7.49

11

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

12

WASHER PLATE 341839090000

90201-10128-00

$4.82

13

GROMMET(29K)

90480-12421-00

$9.49

14

COLLAR(1LJ)

90387-067N5-00

$7.49

15

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

16

GROMMET

90480-24001-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

HOSE (L200)

90445-11289-00

Unavailable

19

BRACKET 1

5LP-2175T-00-00

Unavailable
