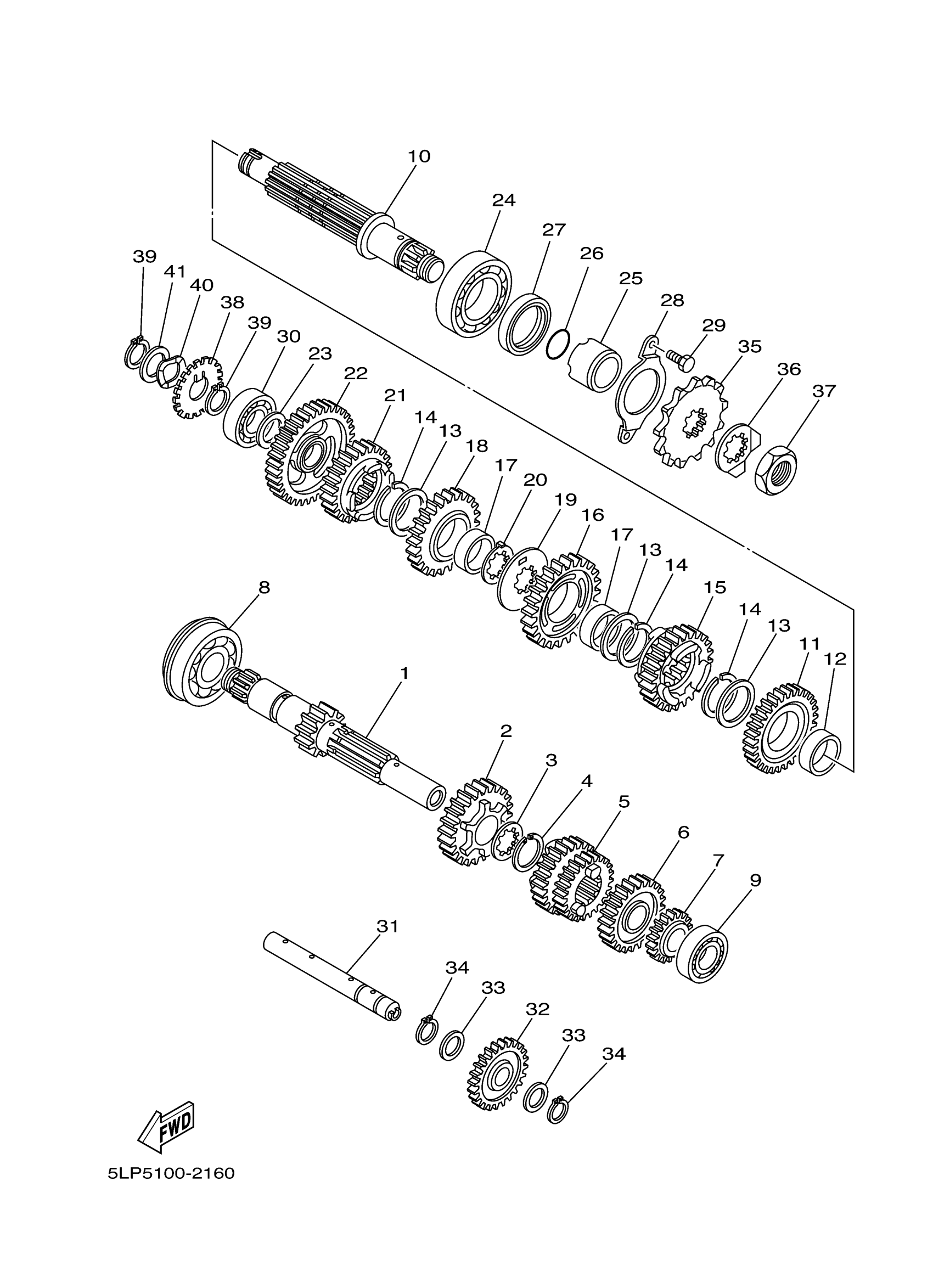

Yamaha YFM660RSET (RAPTOR SE) 5LPT 2005 TRANSMISSION Diagram
#
1
MAIN AXLE ASSY
5LP-17401-11-00
Unavailable
2
GEAR, 5TH PINION
5LP-17151-00-00
Unavailable
6
GEAR, 4TH PINION (21T)
5LP-17141-10-00
Unavailable
7
GEAR, REVERSE PINION 1
5LP-17143-20-00
Unavailable
9
BEARING (17L)
93306-00427-00
Unavailable
10
AXLE, DRIVE
5LP-17402-00-00
Unavailable
11
GEAR, REVERSE WHEEL 1
5LP-17243-20-00
Unavailable
15
GEAR, 4TH WHEEL (22T)
5LP-17241-10-00
Unavailable
16
GEAR, 2ND WHEEL (30T)
5LP-17221-10-00
Unavailable
17
COLLAR
90387-2813D-00
Unavailable
18
GEAR, 3RD WHEEL (27T)
5LP-17231-10-00
Unavailable
19
WASHER
90209-25349-00
Unavailable
20
WASHER
90209-25350-00
Unavailable
21
GEAR, 5TH WHEEL (19T)
5LP-17251-10-00
Unavailable
22
GEAR, 1ST WHEEL (31T)
5LP-17211-10-00
Unavailable
23
WASHER PLATE 328171160000
90201-20276-00
Unavailable
24
BEARING (5Y1)
93306-30535-00
Unavailable
25
COLLAR
90387-2505V-00
Unavailable
26
O-RING
93210-22298-00
Unavailable
27
OIL SEAL(1UY)
93102-35393-00
Unavailable
28
PLATE, COVER
5LP-17471-00-00
Unavailable
29
BOLT(8CP)
97017-06014-00
Unavailable
30
BEARING (5Y1)
93306-00426-00
Unavailable
31
AXLE, IDLE
5LP-17432-00-00
Unavailable
32
GEAR, DRIVE 1
5LP-17281-20-00
Unavailable
33
WASHER, PLATE(3GD)
90201-150U6-00
Unavailable
34
CIRCLIP
93440-15012-00
Unavailable
35
SPROCKET, DRIVE (13T)
9383E-13216-00
Unavailable
36
WASHER, LOCK(1KT)
90215-21256-00
Unavailable
37
NUT 152174630000
90179-18020-00
Unavailable
38
PLATE
5LP-17446-00-00
Unavailable
39
CIRCLIP(1AR)
99009-20400-00
Unavailable
40
WASHER, WAVE (878)
90206-20037-00
Unavailable
41
WASHER PLATE 328171160000
90201-20276-00
Unavailable
