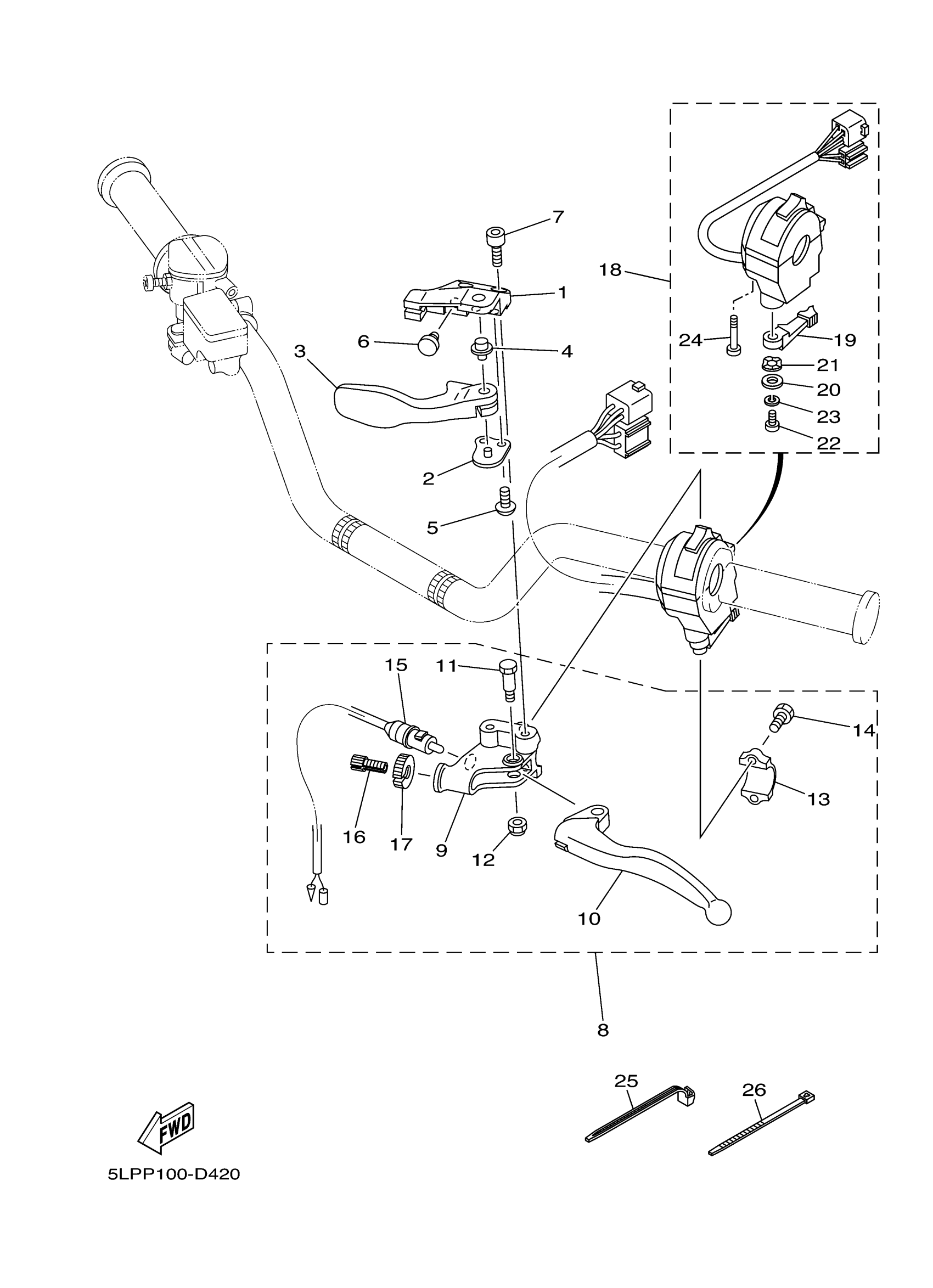

Yamaha YFM660RSET (RAPTOR SE) 5LPT 2005 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

BRACKET, LEVER

5TG-25727-01-00

$49.99

2

PLATE, GUIDE

5D3-25689-00-00

$7.99

3

LEVER, BRAKE

5TG-25726-01-00

$30.99

4

COLLAR, LEVER 2

5TG-83923-00-00

$14.49

5

BOLT, BUTTON HEAD

92017-06014-00

$4.29

6

PLUG

90338-07007-00

$3.35

7

BOLT, BUTTON

92014-06016-00

$8.49

8

LEVER HOLDER ASSY

5YT-82910-12-00

Unavailable

9

HOLDER, LEVER 1

5YT-82911-10-00

Unavailable

10

LEVER 1

2HT-83912-01-00

$39.99

11

BOLT

90109-06027-00

$11.49

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

14

BOLT(4TW)

97017-05016-00

$3.29

15

SWITCH

5KM-82917-00-00

$58.99

16

BOLT

90123-08002-00

Unavailable

17

NUT

90179-08030-00

Unavailable

18

SWITCH, HANDLE 3

5LP-83973-02-00

Unavailable

19

LEVER, CHOKE

5GH-83941-00-00

Unavailable

20

WASHER, SPECIAL

1UY-83909-00-00

Unavailable

21

WASHER, STARTER

3L4-83943-00-00

Unavailable

22

SCREW, PAN

98517-05012-00

Unavailable

23

WASHER(3SX)

92907-05100-00

Unavailable

24

SCREW, PAN HEAD

98517-05030-00

Unavailable

25

CLAMP

90464-13077-00

Unavailable

26

BAND, SWITCH CORD

437-83936-01-00

Unavailable
