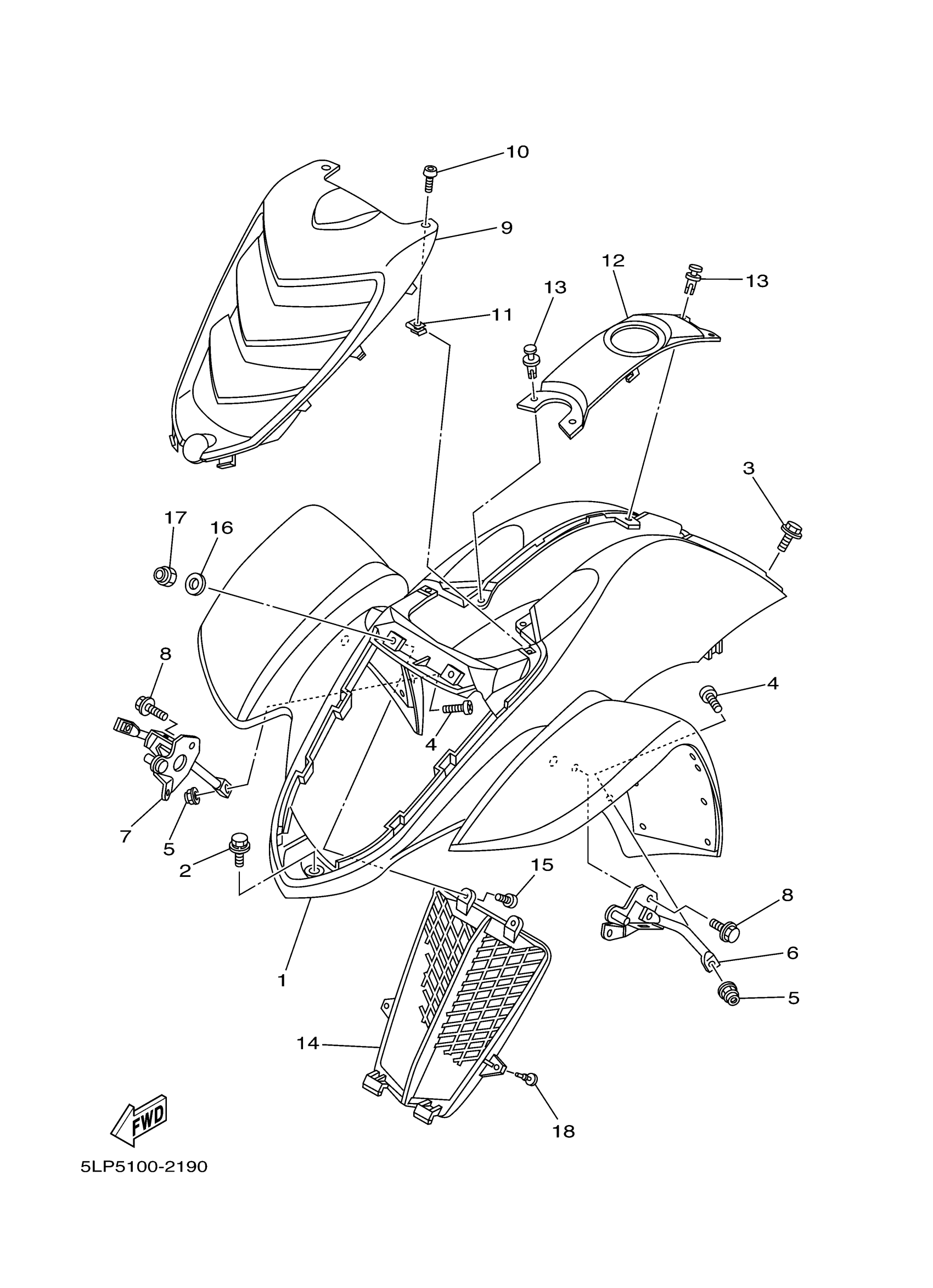

Yamaha YFM660RSET (RAPTOR SE) 5LPT 2005 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5LP-W2151-30-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

4

SCREW(3JM)

90149-06306-00

$8.49

5

NUT,SELF-LOCKING

95607-06200-00

$12.49

6

STAY, FENDER 1

5LP-21513-00-00

Unavailable

7

STAY, FENDER 2

5LP-21514-00-00

Unavailable

8

BOLT, FLANGE

95817-08014-00

$5.60

9

FENDER, FRONT 2

5LP-21556-G0-00

Unavailable

10

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

11

NUT, SPRING

90183-05008-00

$9.49

12

COVER, TOP

5LP-2171A-30-00

Unavailable

13

RIVET

90269-06002-00

$8.49

14

COVER, RADIATOR

5LP-12467-10-00

Unavailable

15

SCREW, BINDING (8R1)

90154-05011-00

$4.29

16

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

17

NUT, U

95617-05100-00

Unavailable

18

GROMMET (1J7)

90480-05201-00

Unavailable
