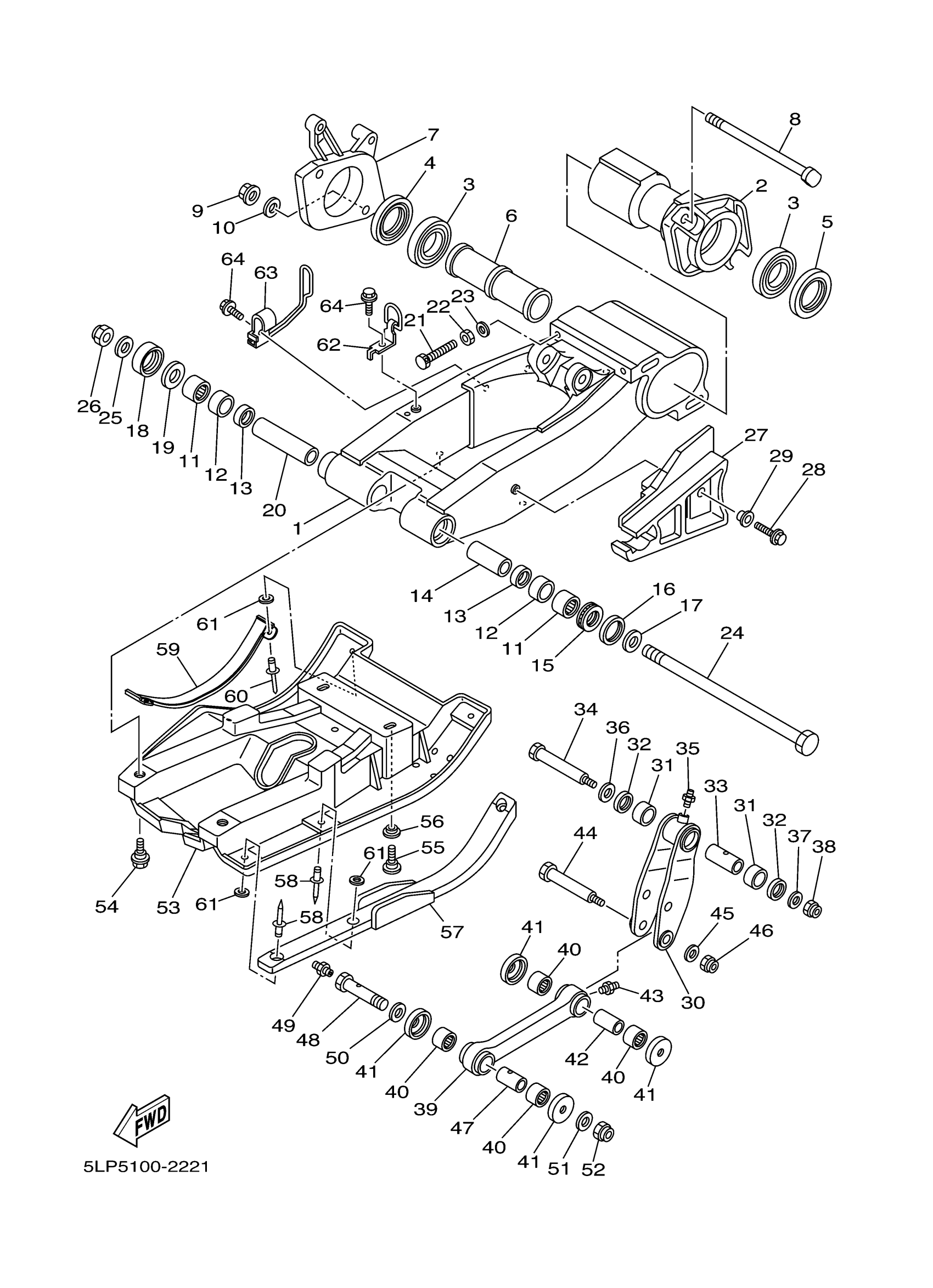

Yamaha YFM660RS (660R RAPTOR) 5LPF 2004 REAR ARM Diagram
#
1
REAR ARM COMP.
5LP-22110-10-00
Unavailable
6
SPACER(38W)
90560-35263-00
Unavailable
7
BRACKET, CALIPER
5LP-25721-10-00
Unavailable
8
BOLT
90109-12002-00
Unavailable
16
OIL SEAL (36F)
93109-28043-00
Unavailable
17
COLLAR
90387-16006-00
Unavailable
18
COVER, THRUST 2
4X7-22129-00-00
Unavailable
19
WASHER
3YF-22149-00-00
Unavailable
20
BUSH
5LP-22184-00-00
Unavailable
21
BOLT, HEAD WITH HOLE(71G)
90103-08026-00
Unavailable
22
NUT(6TA)
95337-08600-00
Unavailable
23
WASHER, PLATE(3XP)
90201-083P5-00
Unavailable
24
SHAFT, PIVOT
5LP-22141-00-00
Unavailable
25
WASHER, PLATE (5X6)
90201-160F6-00
Unavailable
26
NUT, SELF-LOCKING
90185-16002-00
Unavailable
27
SEAL, GUARD
5LP-22151-10-00
Unavailable
28
BOLT, FLANGE
95817-06020-00
Unavailable
29
COLLAR (899 INTAKE)
90387-06500-00
Unavailable
30
ARM, RELAY
5LP-2217A-10-00
Unavailable
31
BUSH, FORMED(1RX)
90383-20033-00
Unavailable
32
OIL SEAL
93109-20076-00
Unavailable
33
COLLAR
90387-12021-00
Unavailable
34
BOLT
90109-10018-00
Unavailable
35
NIPPLE, GREASE
93700-06M03-00
Unavailable
37
WASHER, PLATE(8BT)
90201-100U1-00
Unavailable
38
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
39
ROD, CONNECTING 1
5LP-2217F-10-00
Unavailable
40
BUSH, FORMED(1RX)
90383-20032-00
Unavailable
41
COVER, THRUST 2
55K-22129-00-00
Unavailable
42
COLLAR(36Y)
90387-125K2-00
Unavailable
43
NIPPLE, GREASE
93700-06M03-00
Unavailable
44
BOLT (12R)
90109-10654-00
Unavailable
45
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
46
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
47
COLLAR
90387-12010-00
Unavailable
48
BOLT
90109-12003-00
Unavailable
49
NIPPLE, GREASE
93700-06M03-00
Unavailable
50
WASHER, PLATE
90201-12033-00
Unavailable
51
WASHER, PLATE (25H)
90201-124G9-00
Unavailable
52
NUT, SELF-LOCKING(1KH)
90185-12134-00
Unavailable
53
COVER
5LP-2219X-00-00
Unavailable
54
BOLT(3KJ)
90109-063F1-00
Unavailable
55
BOLT, HEXAGON
97017-08020-00
Unavailable
56
COLLAR (25Y)
90387-083J6-00
Unavailable
57
GUARD, CHAIN
5LP-22153-10-00
Unavailable
58
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
59
INSERT, PLATE
5LP-25345-00-00
Unavailable
60
RIVET, BLIND
90267-47200-00
Unavailable
61
WASHER, PLATE
90201-04027-00
Unavailable
62
HOLDER, BRAKE HOSE
5EB-25887-00-00
Unavailable
63
HOLDER, BRAKE HOSE
5LP-25886-00-00
Unavailable
64
. BOLT, FLANGE
95027-06020-00
Unavailable
