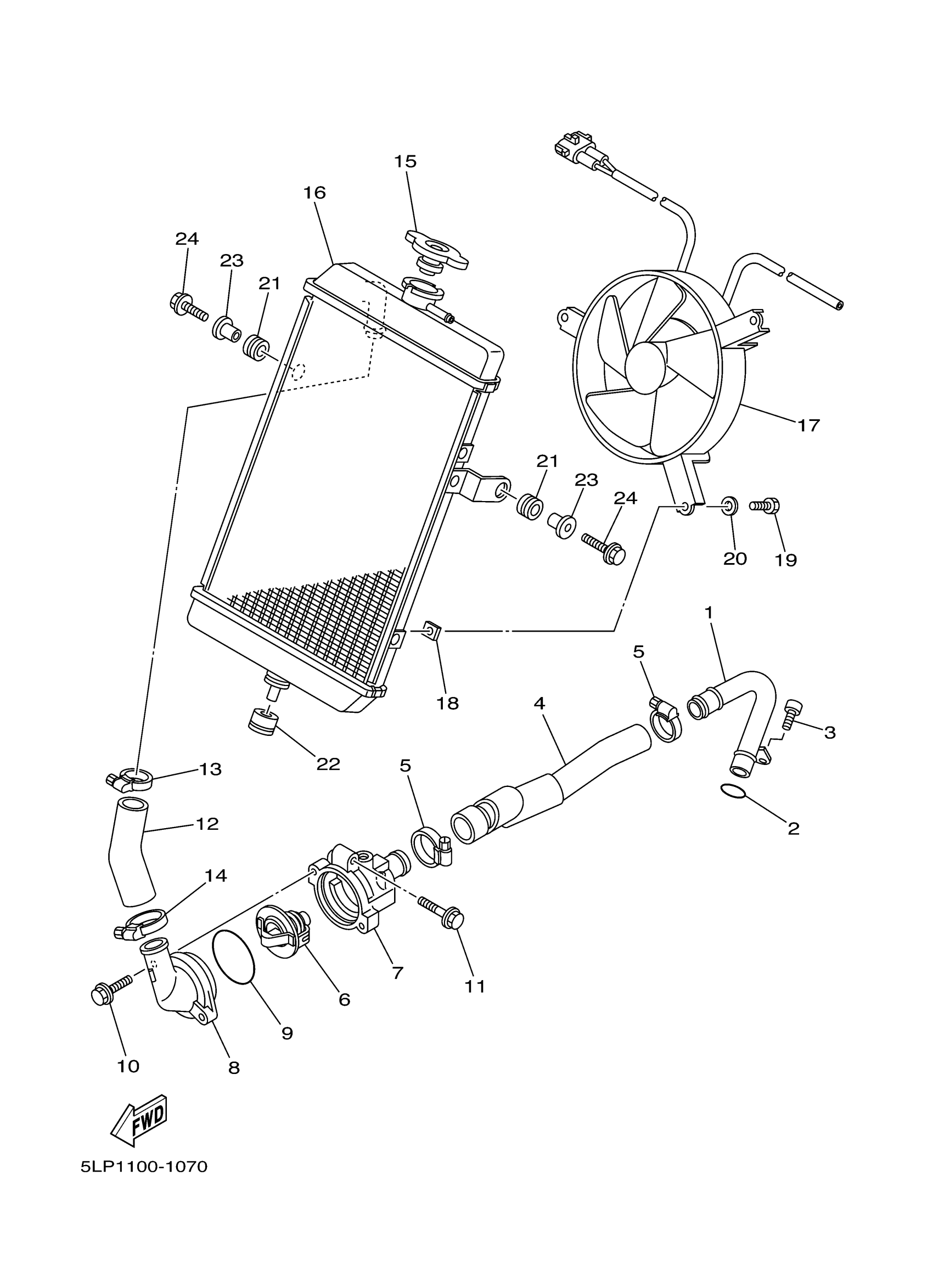

Yamaha YFM660RS (660R RAPTOR) 5LPF 2004 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 1

5LP-12481-00-00

$70.99

2

O-RING (716)

93210-18417-00

$7.49

3

BOLT,SOCKET

91317-06012-00

$8.49

4

HOSE 3

5LP-12578-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-32015-00

$17.99

6

THERMOSTAT

5LP-12411-01-00

$38.99

7

HOUSING, THERMOSTAT

5LP-12417-00-00

Unavailable

8

COVER, THERMOSTAT

5LP-12413-00-00

Unavailable

9

O-RING (620)

93210-49046-00

$7.49

10

. BOLT, FLANGE

95027-06020-00

Unavailable

11

BOLT, SMALL FLANGE

95027-06025-00

$4.16

12

HOSE 4

5LP-12579-00-00

Unavailable

13

HOSE CLAMP ASSY

90450-32015-00

$17.99

14

HOSE CLAMP ASSY

90450-35001-00

$5.60

15

CAP, RADIATOR

4FL-12462-00-00

$62.99

16

RADIATOR ASSY

5LP-12461-10-00

Unavailable

17

BLOWER ASSY

5LP-12405-00-00

Unavailable

18

PLATE

1AA-12535-00-00

Unavailable

19

BOLT(3JP)

97017-06010-00

Unavailable

20

WASHER(6TA)

92907-06600-00

Unavailable

21

GROMMET(2GU)

90480-15470-00

Unavailable

22

GROMMET(3GB)

90480-18499-00

Unavailable

23

COLLAR

90387-075U2-00

Unavailable

24

BOLT, FLANGE

95817-06025-00

Unavailable
